FOOTRESTS

KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

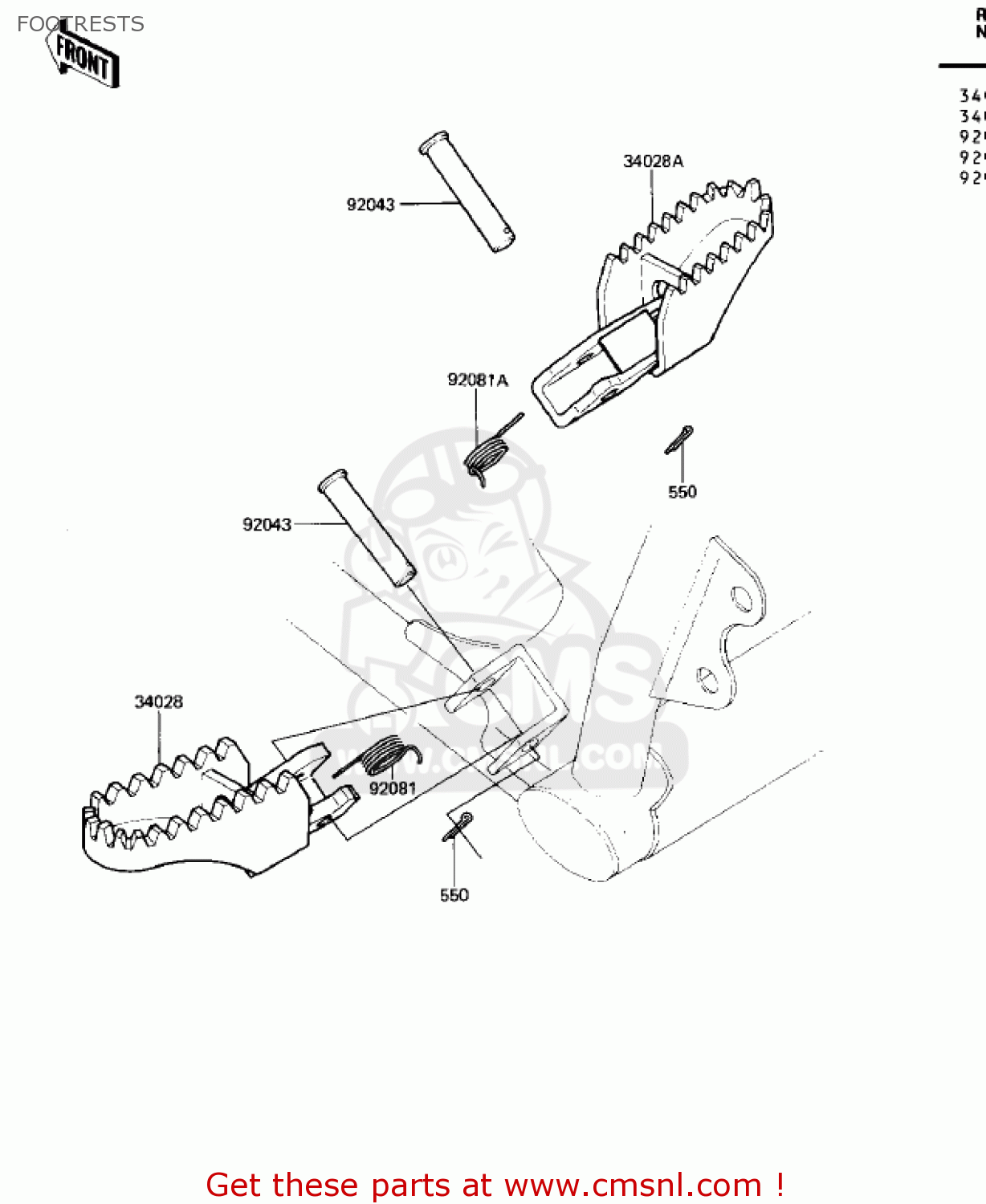

Footrests diagram KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

FOOTRESTS KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

FOOTRESTS KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

34028

340281037
ref: 34028

STEP,L.H

€ 50.00

34028

340281038
ref: 34028

STEP,R.H

€ 29.00

92043

920431107
ref: 92043

PIN

€ 7.00

92081

920811410
ref: 92081

SPRING,L.H STEP

€ 4.50

92081

920811411
ref: 92081

SPRING,R.H STEP

€ 6.50

550D2018

550D2018
ref: 550D2018

PIN-COTTER,2.0X18

€ 1.50
