CYLINDER HEAD/CYLINDER/REED VALV

KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

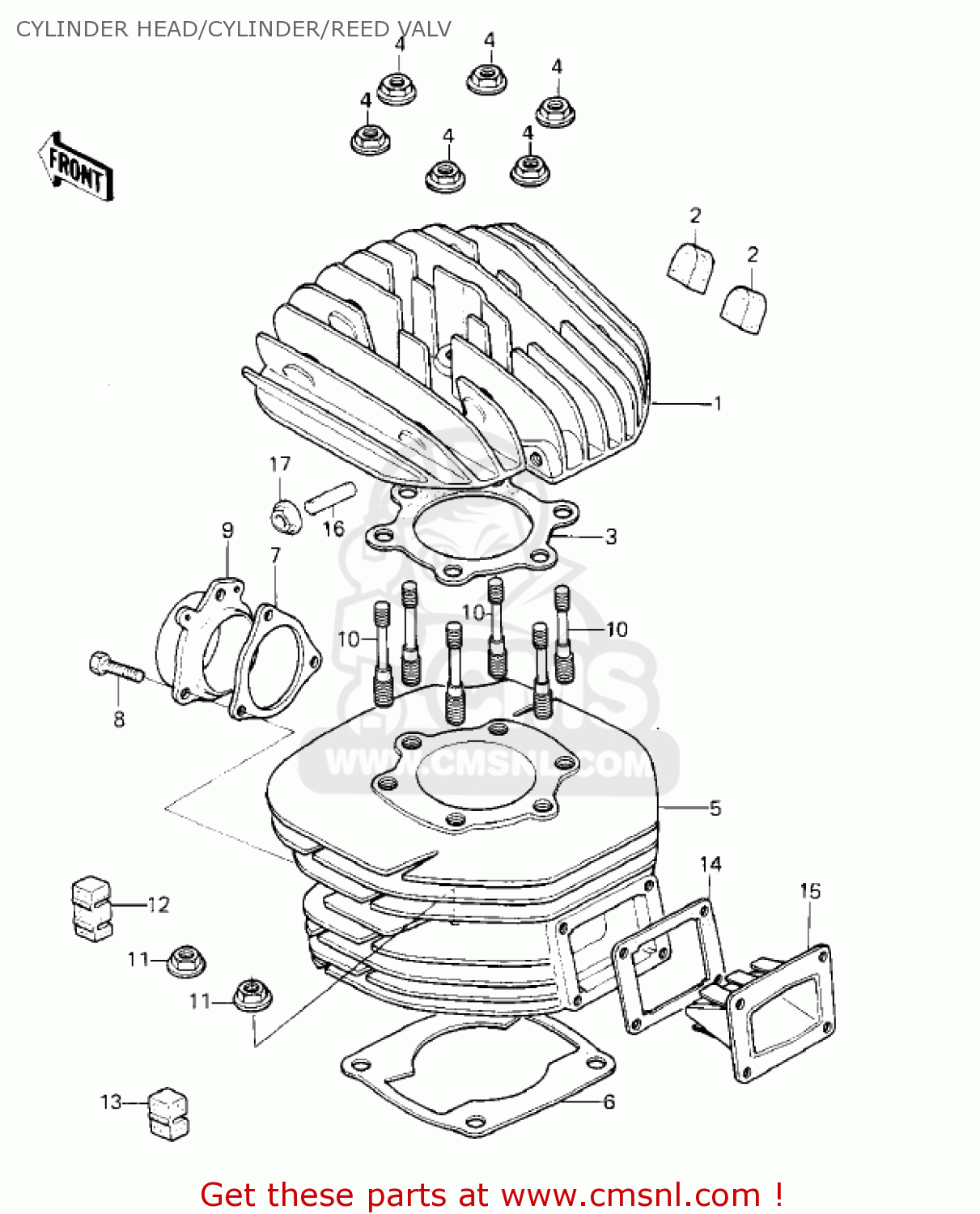

Cylinder head/cylinder/reed valv diagram KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

CYLINDER HEAD/CYLINDER/REED VALV KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

CYLINDER HEAD/CYLINDER/REED VALV KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

1

110011031
ref: 1

CYLINDER HEAD,F.BLACK

€ 99.00

2

920751176
ref: 2

DAMPER,CYLINDER HEAD

€ 2.50

3

110041012
ref: 3

GASKET-HEAD,CYLINDER (NAS)

€ 16.00

4

920151143
ref: 4

NUT,8MM

€ 0.50

5

110051094
ref: 5

CYLINDER

€ 495.50

6

11009038
ref: 6

GASKET,CYLINDER BASE (MCA)

€ 7.50

7

110091017
ref: 7

GASKET,EXHAUST PIPE (NAS)

€ 7.00

8

112G0618
ref: 8

BOLT-UPSET

€ 0.50

9

180691013
ref: 9

HOLDER,EXHAUST PIPE

€ 45.00

10

920041026
ref: 10

STUD,CYLINDER

€ 4.50

11

920151415
ref: 11

NUT,10MM

€ 3.00

12

920751160
ref: 12

DAMPER RUBBER CYL

€ 3.50

13

920751161
ref: 13

DAMPER RUBBER CYL

€ 4.00

14

110091018
ref: 14

GASKET,REED VALVE (MCA)

€ 3.50

15

120211007
ref: 15

VALVE-ASSY-REED

€ 101.50

16

175G1018
ref: 16

STUD,10X18

€ 2.50

17

920151415
ref: 17

NUT,10MM

€ 3.00
