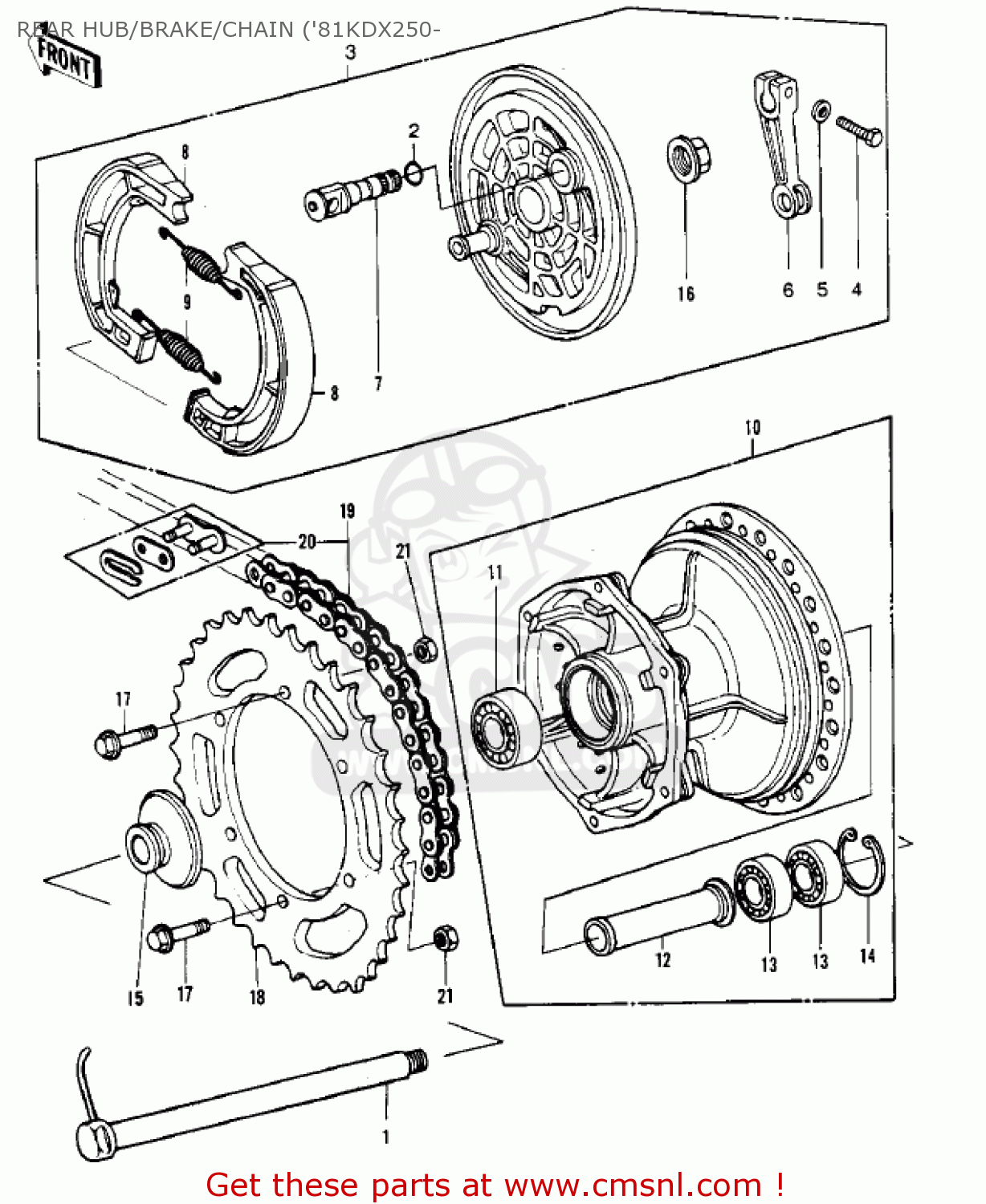

REAR HUB/BRAKE/CHAIN ('81KDX250-

KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

Rear hub/brake/chain ('81kdx250- diagram KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

REAR HUB/BRAKE/CHAIN ('81KDX250- KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

REAR HUB/BRAKE/CHAIN ('81KDX250- KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

1

410684002
ref: 1

AXLE,RR

€ 78.50

2

670B2015
ref: 2

O RING,15MM

€ 1.00

3

410351047
ref: 3

PEDAL ASSY,REAR BRK

€ 193.00

4

112G0622
ref: 4

BOLT-UPSET

€ 2.50

5

410B0600
ref: 5

WASHER-PLAIN-SMALL,6M

€ 0.50

6

410531022
ref: 6

LEVER-BRAKE CAM

€ 67.50

7

410501018
ref: 7

CAM-BRAKE

€ 17.00

8

410481018
ref: 8

SHOE BRAKE (MCA)

€ 13.50

9

42020004
ref: 9

SPRING-BRAKE SHOE

€ 5.50

10

410341019
ref: 10

DRUM ASSY,RR BRAKE

€ 369.50

11

601B6204UU
ref: 11

BEARING-BALL,6204UUC3

€ 28.00

12

920271207
ref: 12

COLLAR,REAR DRUM

€ 36.00

13

601B6003U
ref: 13

BEARING-BALL,#6003UC3

€ 21.50

14

481J3500
ref: 14

CIRCLIP-TYPE-C,35MM

€ 1.00

15

920274013
ref: 15
L.H.

COLLAR

€ 27.50

16

920151015
ref: 16

NUT,16MM

€ 13.50

17

920011041
ref: 17

BOLT,HEX HEAD,8X36

€ 6.50

18

420411006
ref: 18
STD

REAR SPROCKET,50T

€ 74.50

18

420411022
ref: 18
OPTION

REAR SPROCKET,48T

€ 72.00

18

420411008
ref: 18
OPTION

REAR SPROCKET,52T

€ 80.50

19

920571028
ref: 19
TSB 520 QR

CHAIN ASSY,DRIVE 116L

€ 109.50

20

920581002
ref: 20

JOINT,DRIVE CHAIN

€ 6.00

21

920151134
ref: 21

NUT,8MM

€ 3.50
