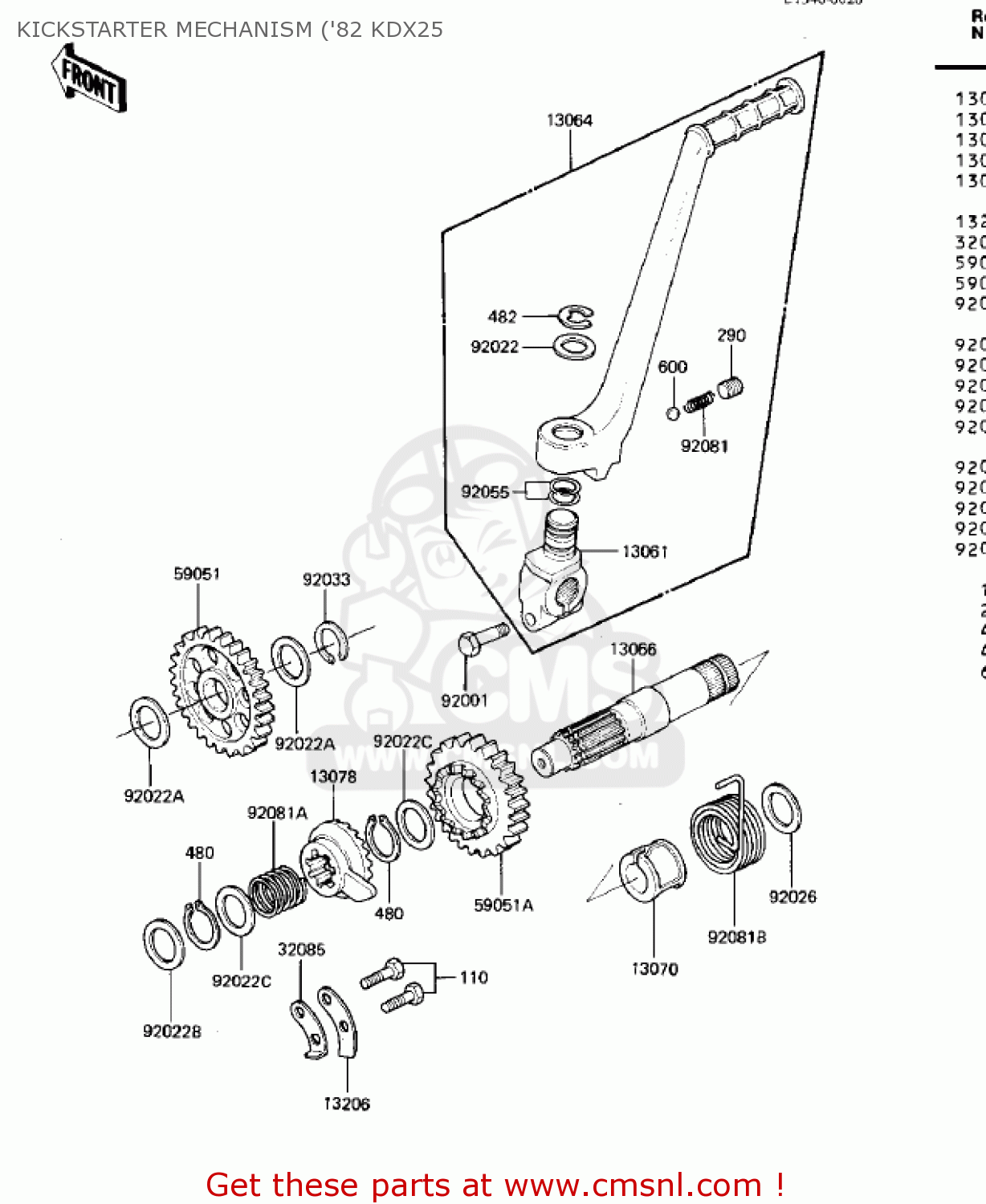

KICKSTARTER MECHANISM ('82 KDX25

KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

Kickstarter mechanism ('82 kdx25 diagram KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

KICKSTARTER MECHANISM ('82 KDX25 KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

KICKSTARTER MECHANISM ('82 KDX25 KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

13061

130611052
ref: 13061

BOSS,KICK PEDAL

€ 55.50

13064

130641033
ref: 13064

LEVER,KICK

€ 120.50

13066

130661014
ref: 13066

SHAFT,KICKSTARTER

€ 137.50

13070

13070011
ref: 13070

GUIDE,KICKSTARTER SPR

€ 6.50

13078

130781052
ref: 13078

RATCHET,KL250-D2

€ 50.50

13206

132061059
ref: 13206

GUIDE-KICK

€ 7.00

32085

320851016
ref: 32085

STOPPER,KICKSTARTER

€ 5.50

59051

590511022
ref: 59051

GEAR-SPUR,30T

€ 72.50

59051A

590511023
ref: 59051A

GEAR,KICKSTARTER,27T

€ 48.50

92001

920011042
ref: 92001

BOLT,HEX HEAD,8X28

€ 4.00

92022

920221019
ref: 92022

WASHER,15.2X20X1

€ 3.50

92022A

92022252
ref: 92022A

WASHER

€ 4.00

92022B

92022269
ref: 92022B

WASHER,PLAIN

€ 1.00

92022C

92022315
ref: 92022C

WASHER, 16.8X22X0.5

€ 4.00

92026

920261037
ref: 92026

SPACER,17.2X23X0.5

€ 2.50

92033

92033029
ref: 92033

CIRCLIP,18MM

€ 6.50

92055

92055072
ref: 92055

RING-O

€ 3.00

92081

92081020
ref: 92081

SPRING-KICK PEDAL

€ 2.50

92081A

92081122
ref: 92081A

SPRING,RATCHET

€ 6.00

92081B

920811253
ref: 92081B

SPRING,KICKSTARTER

€ 12.50

110

112G0618
ref: 110

BOLT-UPSET

€ 0.50

290

290Q0816
ref: 290

SCREW-SET/SOCKET 8X16

€ 2.00

480

480J1600
ref: 480

CIRCLIP-TYPE-C,16MM

€ 2.50

482

482K0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50
