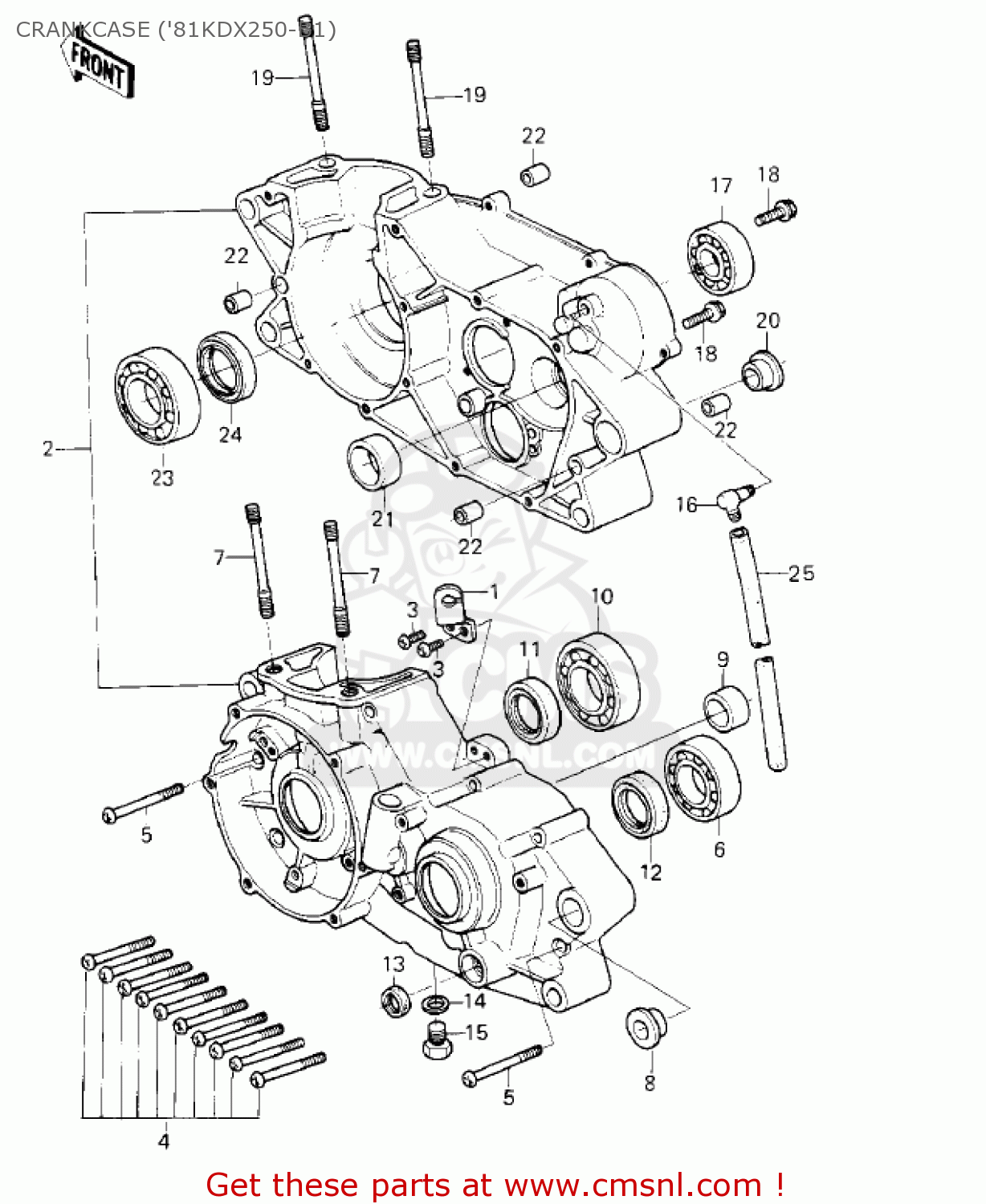

CRANKCASE ('81KDX250-B1)

KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

Crankcase ('81kdx250-b1) diagram KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

CRANKCASE ('81KDX250-B1) KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

CRANKCASE ('81KDX250-B1) KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

1

130911068
ref: 1

HOLDER,CLUTCH CABLE

€ 3.50

2

140015069
ref: 2

CRANKCASE SET

€ 418.50

3

220B0616
ref: 3

SCREW-PAN HEAD,6X16

€ 2.50

4

220B0650
ref: 4

SCREW-PAN HEAD,6X50

€ 2.00

5

220B0660
ref: 5

SCREW-PAN HEAD,6X60

€ 2.50

6

601B6205
ref: 6

BEARING-BALL,#6205C3

€ 14.00

7

920041032
ref: 7

STUD,10X65

€ 6.50

8

920281123
ref: 8

BUSHING,CASE PIVOT

€ 19.50

9

92028132
ref: 9

BUSHING

€ 28.00

10

920451024
ref: 10

BEARING-BALL,#6305SH2

€ 45.50

11

920491052
ref: 11

OIL SEAL,TCJ20407

€ 19.50

12

92050033
ref: 12

SEAL-OIL,TB3040

€ 14.00

13

92051005A
ref: 13

OIL SEAL,TB13225.5

€ 5.50

14

92065058
ref: 14

GASKET, 10,5X16X1 (NAS)

€ 2.50

15

92067001
ref: 15

PLUG-OIL DRAIN

€ 3.00

16

14069003
ref: 16

BREATHER

€ 7.00

17

601B6204
ref: 17

BEARING-BALL,#6204C3

€ 8.00

18

920011066
ref: 18

BOLT, CLUTCH SPR FITT

€ 4.00

19

920041032
ref: 19

STUD,10X65

€ 6.50

20

920281123
ref: 20

BUSHING,CASE PIVOT

€ 19.50

21

92028131
ref: 21

BUSHING

€ 28.00

22

920431037
ref: 22

PIN,DOWEL,10X8.2X14

€ 0.50

23

920451024
ref: 23

BEARING-BALL,#6305SH2

€ 45.50

24

920491051
ref: 24

OIL SEAL,TCJ25457

€ 22.50

25

920591125
ref: 25

TUBU L=500M/M

€ 9.00
