Genuine KDX Kawasaki Parts delivered quickly!

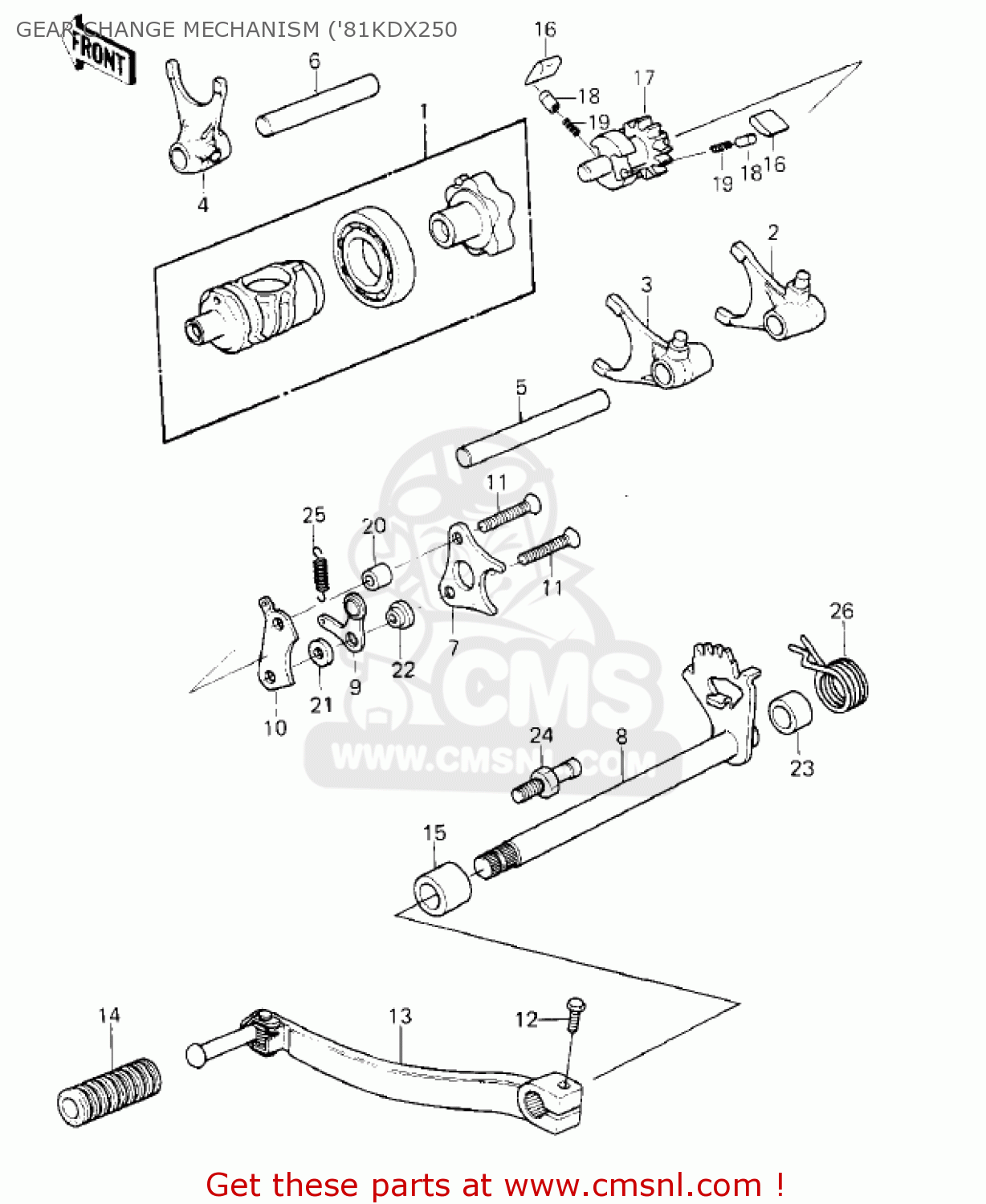

GEAR CHANGE MECHANISM ('81KDX250

KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

Gear change mechanism ('81kdx250 diagram KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM ('81KDX250 KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ('81KDX250 KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ('81KDX250 KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
1
132391038
ref: 1
DRUM ASSY,GEAR CHANGE
€ 153.00
2
131401052
ref: 2
FORK-SHIFT,LOW&2ND
131401052
€ 101.50
3
131401043
ref: 3
FORK-SHIFT,3RD&4TH
131401043
€ 144.00
4
131401101
ref: 4
FORK, SHIFT
€ 51.50
5
490471009
ref: 5
ROD,SHIFT,10X90
490471009
€ 11.00
6
490471011
ref: 6
ROD,SHIFT,L=65M/M
490471011
€ 6.00
7
130701049
ref: 7
GUIDE,RATCHET
€ 4.00
8
131611016
ref: 8
LEVER-COMP-CHANGE SHA
131611016
€ 67.00
9
132361021
ref: 9
LEVER,CHANGE DRUM
132361021
€ 7.50
10
140141013
ref: 10
PLATE,POSITIONING
€ 3.00
11
221B0628
ref: 11
SCREW,CNTRSNK,6X28
221B0628
€ 2.50
12
110P0620
ref: 12
BOLT,HEX HEAD,6X20
€ 2.50
13
132421043
ref: 13
LEVER-ASSY-CHANGE,PED
€ 46.50
14
920751310
ref: 14
DAMPER
920751310
€ 3.00
15
920271274
ref: 15
COLLAR,13.5X22X18
920271274
€ 6.50
16
131651026
ref: 16
PAWL,RATCHET
131651026
€ 7.00
17
132161020
ref: 17
RATCHET,CHANGE DRUM
€ 71.00
18
920431067
ref: 18
PIN
920431067
€ 7.00
19
920811201
ref: 19
SPRING,RATCHET PAWL
920811201
€ 2.00
20
920271234
ref: 20
COLLAR,RATCHET GUIDE
€ 1.50
21
920271235
ref: 21
COLLAR,RATCHET GUIDE
€ 1.50
22
920271248
ref: 22
COLLAR
920271248
€ 3.50
23
92027189
ref: 23
COLLAR,13X18X11.5
92027189
€ 6.00
24
920431055
ref: 24
PIN,CHANGE PEDAL
€ 4.00
25
92081077
ref: 25
SPRING-COIL
92081077
€ 3.00
26
920811129
ref: 26
SPRING,TENTION
920811129
€ 6.50
