FUEL TANK ('81KDX250-B1)

KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

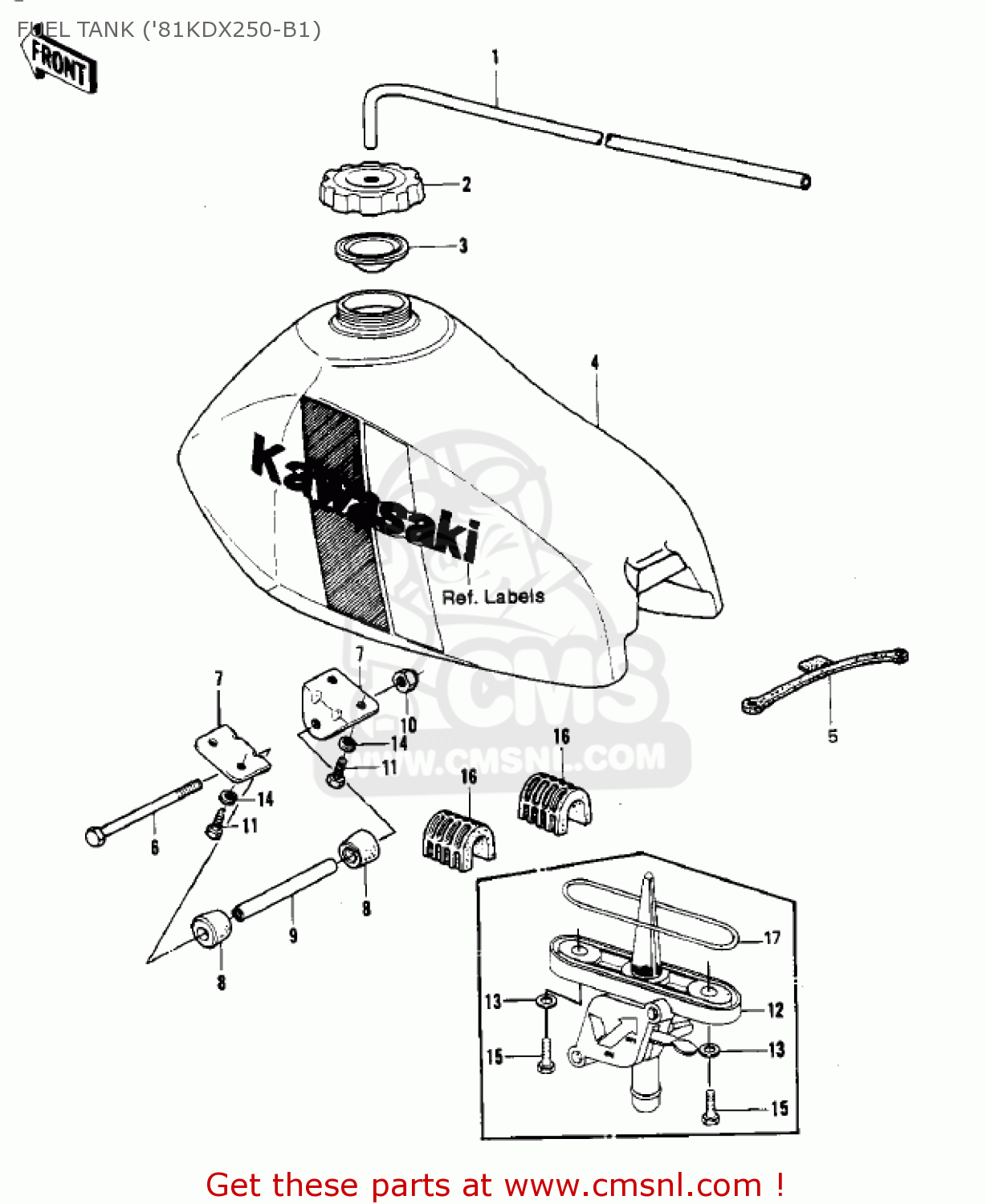

Fuel tank ('81kdx250-b1) diagram KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

FUEL TANK ('81KDX250-B1) KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

FUEL TANK ('81KDX250-B1) KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

1

920594001
ref: 1

TUBE,5X7X500

€ 4.00

2

510491060
ref: 2

CAP-FUEL TANK

€ 5.50

3

110094001
ref: 3

GASKET,FUEL TANK CAP (NAS)

€ 7.00

4

5100140046W
ref: 4

FUEL TANK,LIME GREEN

€ 227.00

5

92072042
ref: 5

BAND,FUEL TANK

€ 9.00

6

112G06105
ref: 6

BOLT-UPSET,6X105

€ 1.50

7

320521031
ref: 7

BRACKET,TANK

€ 11.50

8

920751220
ref: 8

DAMPER,FUEL TANK FITT

€ 4.00

9

920271228
ref: 9

COLLAR,FUEL TANK FITT

€ 3.00

10

92019008
ref: 10

NUT-LOCK,6MM

€ 3.00

11

112G0612
ref: 11

BOLT-UPSET

€ 2.50

12

510234002
ref: 12

COCK ASSY,FUEL

€ 37.00

13

92022183
ref: 13

WASHER,6.2X11X1.5

€ 2.50

14

461F0600
ref: 14

WASHER-SPRING,6MM

€ 0.50

15

92001114
ref: 15

BOLT-HEX HEAD,6X16

€ 2.50

16

920751221
ref: 16

DAMPER,FUEL TANK

€ 8.00

17

51039003
ref: 17

'O' RING

€ 4.00
