REAR HUB/BRAKE/CHAIN ('82 KDX250

KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

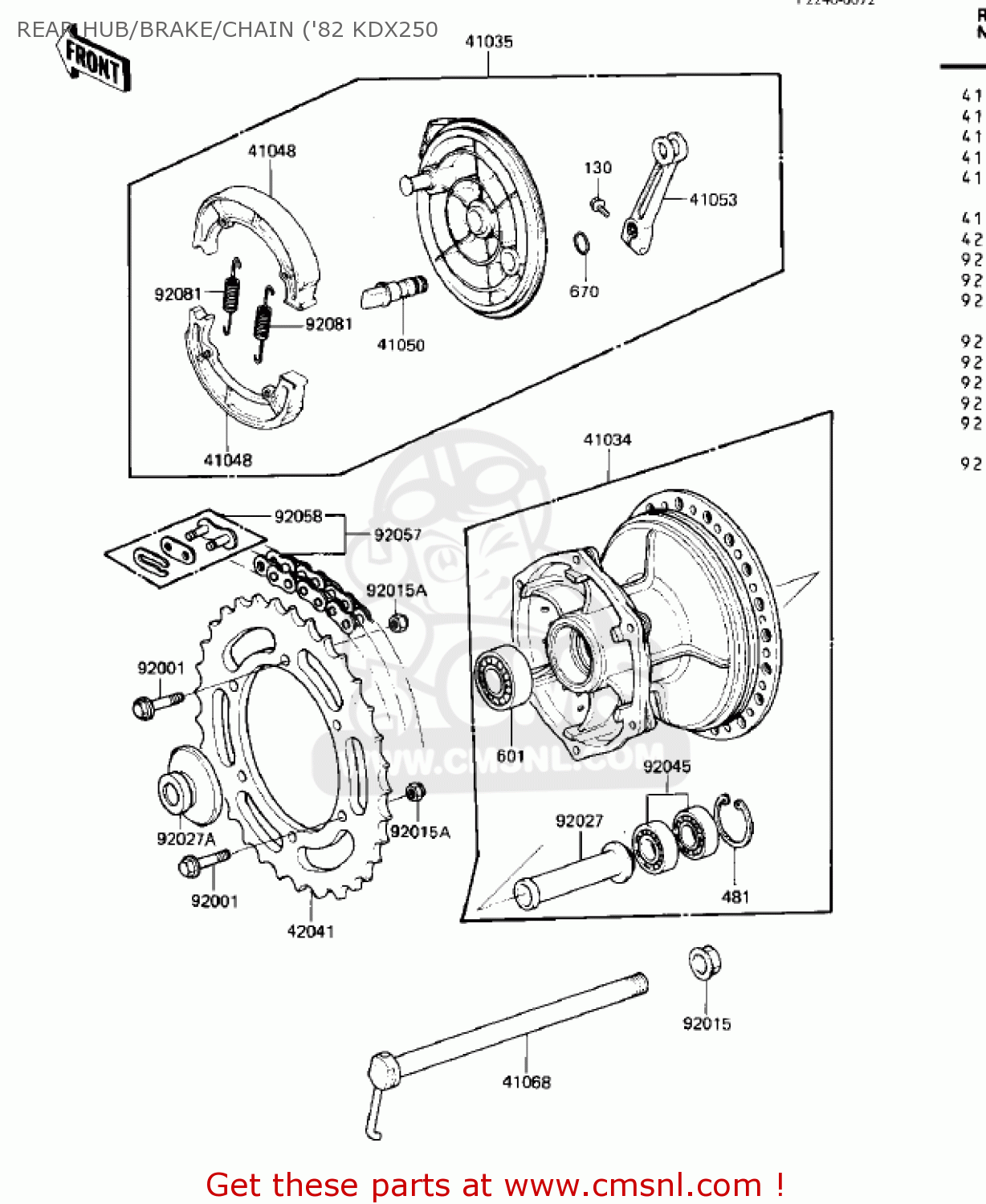

Rear hub/brake/chain ('82 kdx250 diagram KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

REAR HUB/BRAKE/CHAIN ('82 KDX250 KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA
REAR HUB/BRAKE/CHAIN ('82 KDX250 KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA
REAR HUB/BRAKE/CHAIN ('82 KDX250 KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
41034
410341019
ref: 41034
DRUM ASSY,RR BRAKE
€ 369.50
41035
410351086
ref: 41035
PANEL-ASSY-BRAKE,REAR
€ 183.00
41048
410481018
ref: 41048
SHOE BRAKE (MCA)
410481018
€ 13.50
41050
410501018
ref: 41050
CAM-BRAKE
€ 17.00
41053
410531022
ref: 41053
LEVER-BRAKE CAM
410531022
€ 67.50
41068
410681070
ref: 41068
AXLE,REAR
€ 35.50
42041
420411008
ref: 42041
REAR SPROCKET,52T
€ 80.50
92001
920011041
ref: 92001
BOLT,HEX HEAD,8X36
920011041
€ 6.50
92015
920151015
ref: 92015
NUT,16MM
920151015
€ 13.50
92015A
920151134
ref: 92015A
NUT,8MM
€ 3.50
92027
920271207
ref: 92027
COLLAR,REAR DRUM
920271207
€ 36.00
92027A
920271397
ref: 92027A
COLLAR,REAR AXLE
€ 19.00
92045
601B6003U
ref: 92045
BEARING-BALL,#6003UC3
601B6003U
€ 21.50
92057
920571051
ref: 92057
CHAIN ASSY,DRIVE,118L
€ 38.50
92058
920581051
ref: 92058
JOINT-CHAIN
920581051
€ 6.00
92081
42020004
ref: 92081
SPRING-BRAKE SHOE
42020004
€ 5.50
130
130G0620
ref: 130
BOLT,FLANGED,6X20
130G0620
€ 2.50
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
481J3500
€ 1.00
601
601B6204UU
ref: 601
BEARING-BALL,6204UUC3
601B6204UU
€ 28.00
670
670B2015
ref: 670
O RING,15MM
670B2015
€ 1.00
