SEAT/SIDE COVERS

KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

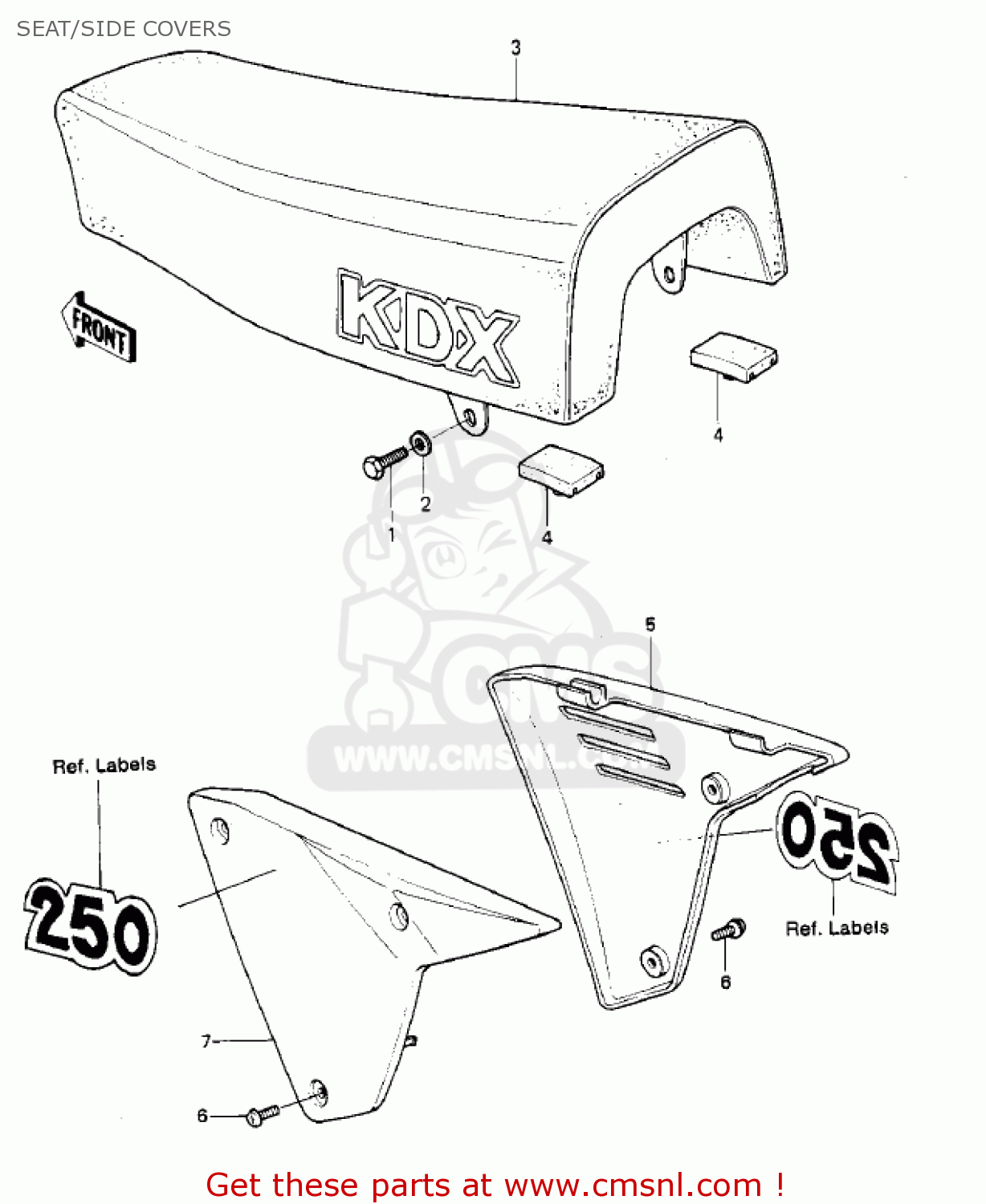

Seat/side covers diagram KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

SEAT/SIDE COVERS KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

SEAT/SIDE COVERS KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

1

115G0816
ref: 1

BOLT-HEX,HEAD 8X16

€ 0.50

2

411B0800
ref: 2

WASHER-PLAIN,8MM

€ 0.50

3

530014004
ref: 3

SEAT ASSY

€ 135.50

4

920751226
ref: 4

DAMPER,SEAT

€ 2.50

5

3600111056W
ref: 5

COVER-SIDE,RH,L.GREEN

€ 81.50

6

920091287
ref: 6

SCREW,6X14

€ 1.50

7

3600110876W
ref: 7

COVER-SIDE,LH,L.GREEN

€ 47.00
