FRAME FITTINGS

KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

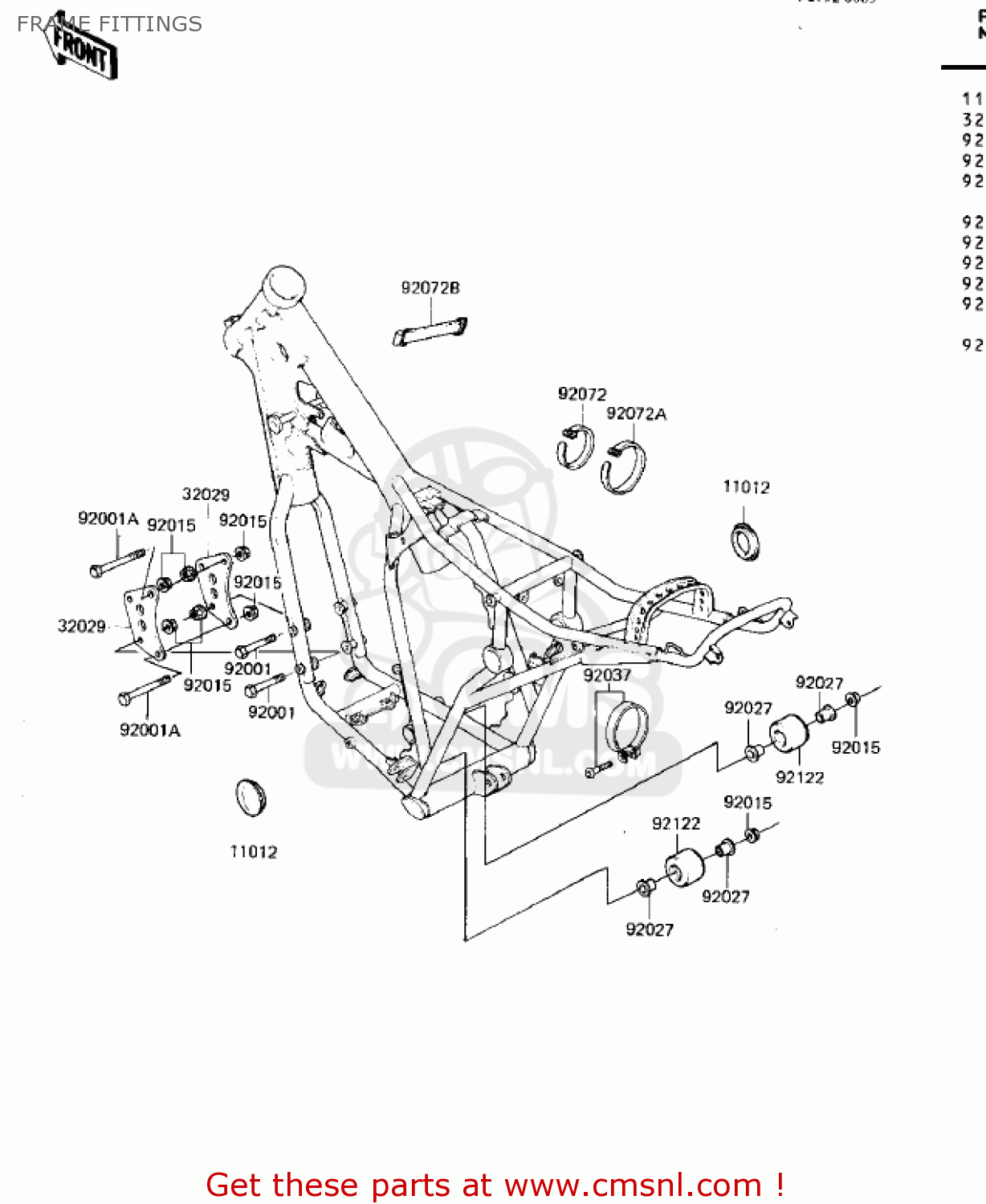

Frame fittings diagram KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11012

110121211
ref: 11012

CAP,UNI-TRAK

€ 3.50

32029

320291333
ref: 32029

BRACKET-ENGINE

€ 23.00

92001

920011493
ref: 92001

BOLT,8X57

€ 2.50

92001A

920011494
ref: 92001A

BOLT,8X72

€ 5.50

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92027

920271383
ref: 92027

COLLAR,CHAIN GUIDE

€ 4.00

92037

920371172
ref: 92037

CLAMP

€ 5.50

92072

92072030
ref: 92072

BAND,SHORT

€ 3.00

92072A

92072056
ref: 92072A

BAND,RUBBER

€ 3.00

92072B

92072076
ref: 92072B

BAND,L=40

€ 14.00

92122

921221021
ref: 92122

ROLLER,CHAIN GUIDE

€ 9.00
