BRAKE PEDAL ('81KDX250-B1)

KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

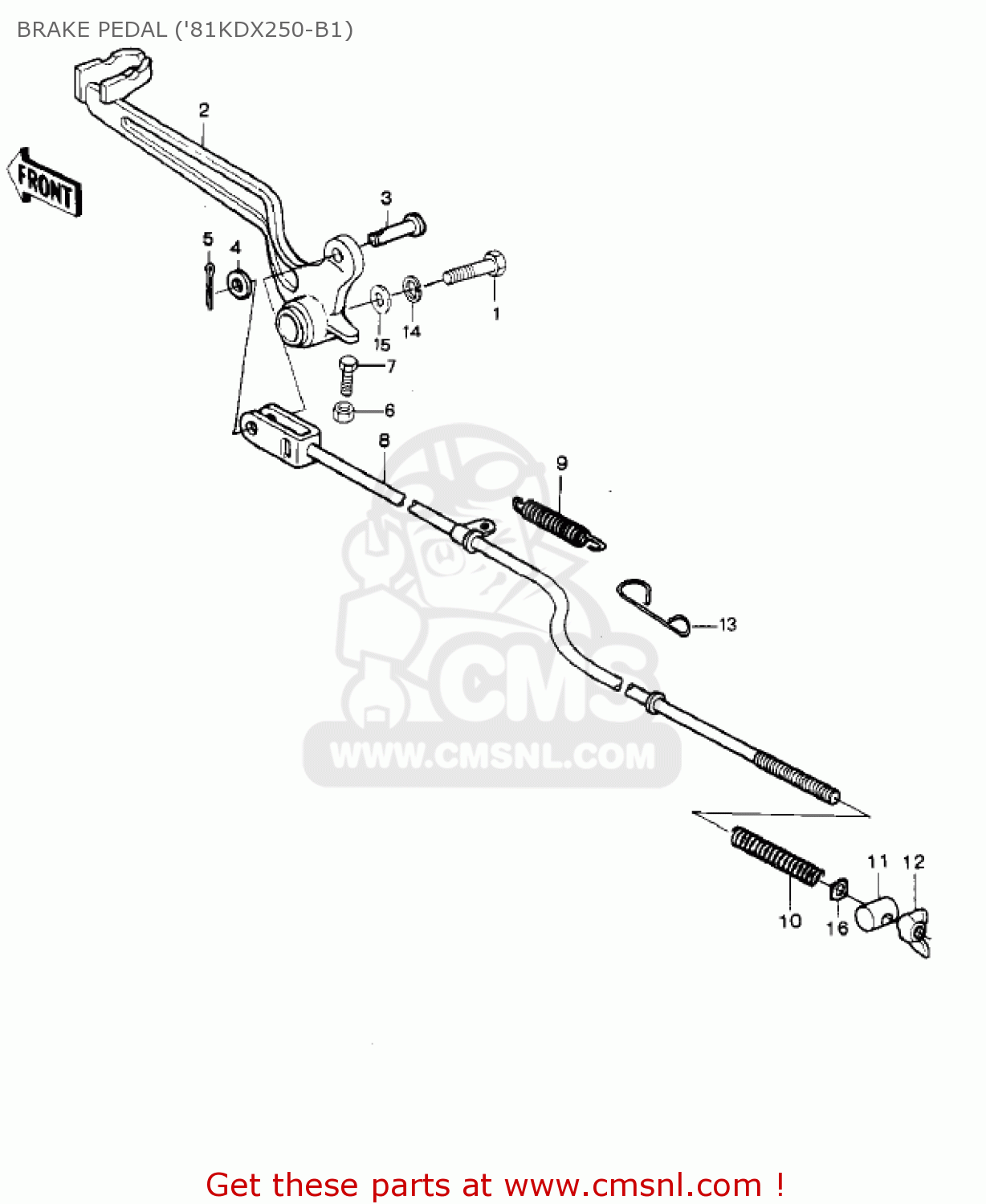

Brake pedal ('81kdx250-b1) diagram KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

114G0812
ref: 1

BOLT-SMALL,8X12

€ 2.00

430014008
ref: 2

LEVER-BRAKE,PEDAL

€ 34.00

92043064
ref: 3

PIN-BRAKE ROD FITTING

€ 4.50

410B0600
ref: 4

WASHER-PLAIN-SMALL,6M

€ 0.50

550D2015
ref: 5

PIN-COTTER,2.0X15

€ 1.00

311B0600
ref: 6

NUT,6MM

€ 0.50

112B0622
ref: 7

BOLT, 6X22

€ 2.50

430114004
ref: 8

ROD-BRAKE

€ 17.00

920811059
ref: 9

SPRING,RETURN

€ 5.50

43012001
ref: 10

SPRING,BRAKE ROD

€ 3.00

920431024
ref: 11

PIN,BRAKE

€ 6.00

920154004
ref: 12

NUT,BRAKE ADJUSTING

€ 4.50

270124001
ref: 13

HOOK

€ 0.50

461F0800
ref: 14

WASHER-SPRING,8MM

€ 0.50

920221561
ref: 15

WASHER,8.5X20X1.6

€ 2.50

920224003
ref: 16

WASHER,BRAKE ROD

€ 1.00
