SPECIAL SERVICE TOOLS

KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

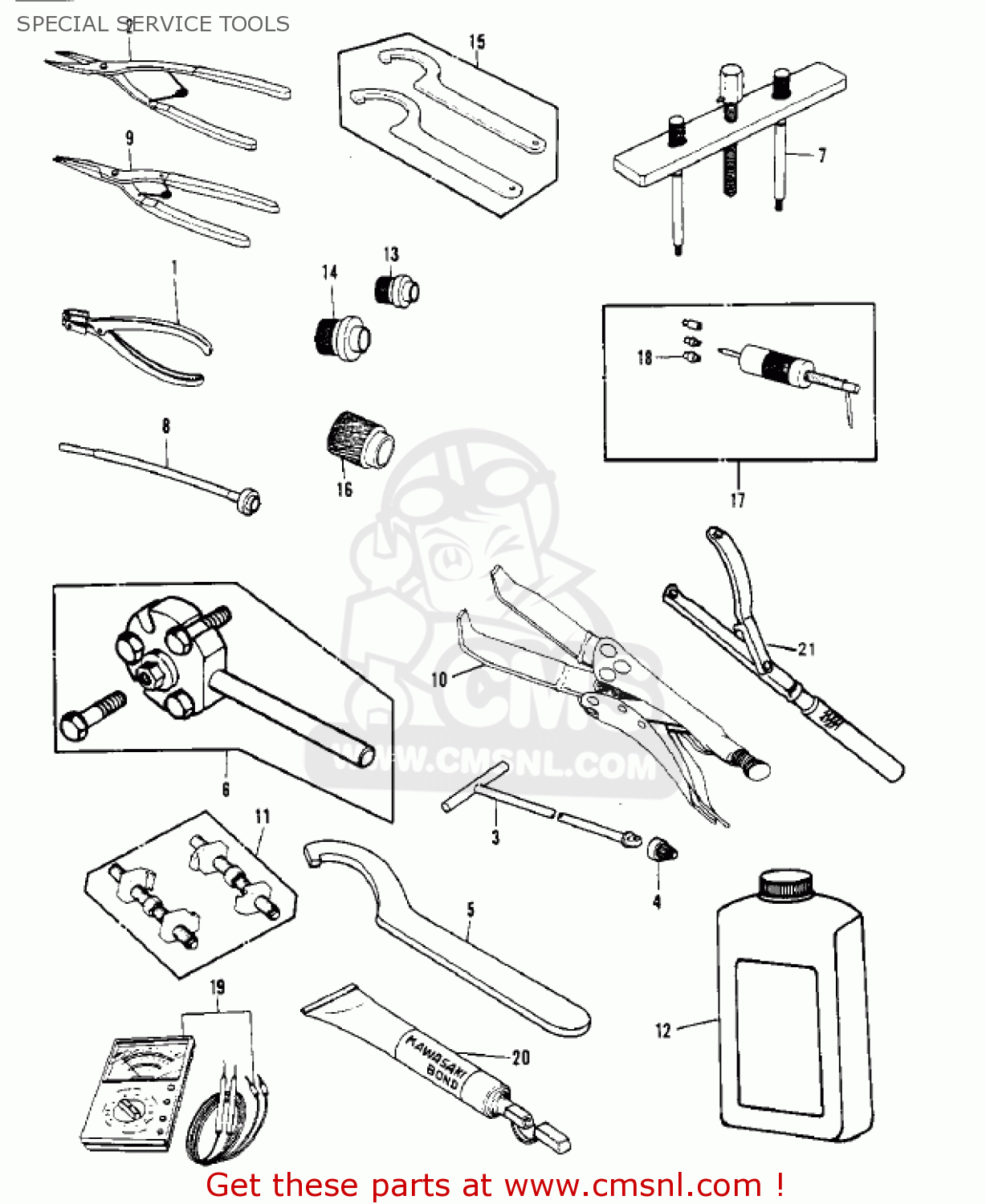

Special service tools diagram KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

SPECIAL SERVICE TOOLS KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

SPECIAL SERVICE TOOLS KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

1

57001115
ref: 1

PLIERS,PISTON RING

€ 27.50

2

57001143
ref: 2

PLIERS,CIRCLIP,INSIDE

€ 34.50

3

57001183
ref: 3

HANDLE,FORK CYL HOLDR

€ 31.00

4

570011057
ref: 4

ADAPTER,FORK CYL HOLD

€ 32.50

5

570011100
ref: 5

WRENCH,STEM NUT

€ 36.50

6

T57001259
ref: 6

57001-259 (Canada)

€ 0.00

7

57001153
ref: 7

PULLER,CRANKCASE

€ 164.50

8

57001202
ref: 8

GAUGE,FUEL LEVEL

€ 62.50

9

57001144
ref: 9

PLIERS,CIRCLIP,OUTSID

€ 33.00

10

T57001165
ref: 10

57001-1243 (Canada)

€ 0.00

11

570011087
ref: 11

COMPRESSOR ASSY,SPRNG

€ 241.50

12

K61020022A
ref: 12

2 CYCLE RACE OIL-PINT

€ 3.50

13

57001264
ref: 13

GUIDE,SHIFT OIL SEAL

€ 54.00

14

57001265
ref: 14

*** N.L.A.*** (Canada)

€ 19.00

15

570011101
ref: 15

WRENCH,HOOK ASSY

€ 119.50

16

570011104
ref: 16

DRIVER,FORK OIL SEAL

€ 388.00

17

T57001910
ref: 17

57001-910 (Canada)

€ 569.00

18

57001914
ref: 18

ADAPTER C,PIN PULLER

€ 14.50

19

57001983
ref: 19

MULTIMETER

€ 299.50

20

92104002
ref: 20

LIQUID GASKET

€ 69.50

21

57001306
ref: 21

HOLDER

€ 207.50
