TRANSMISSION
ZX750A2 1984 EUROPE UK FR GR IT NR SD

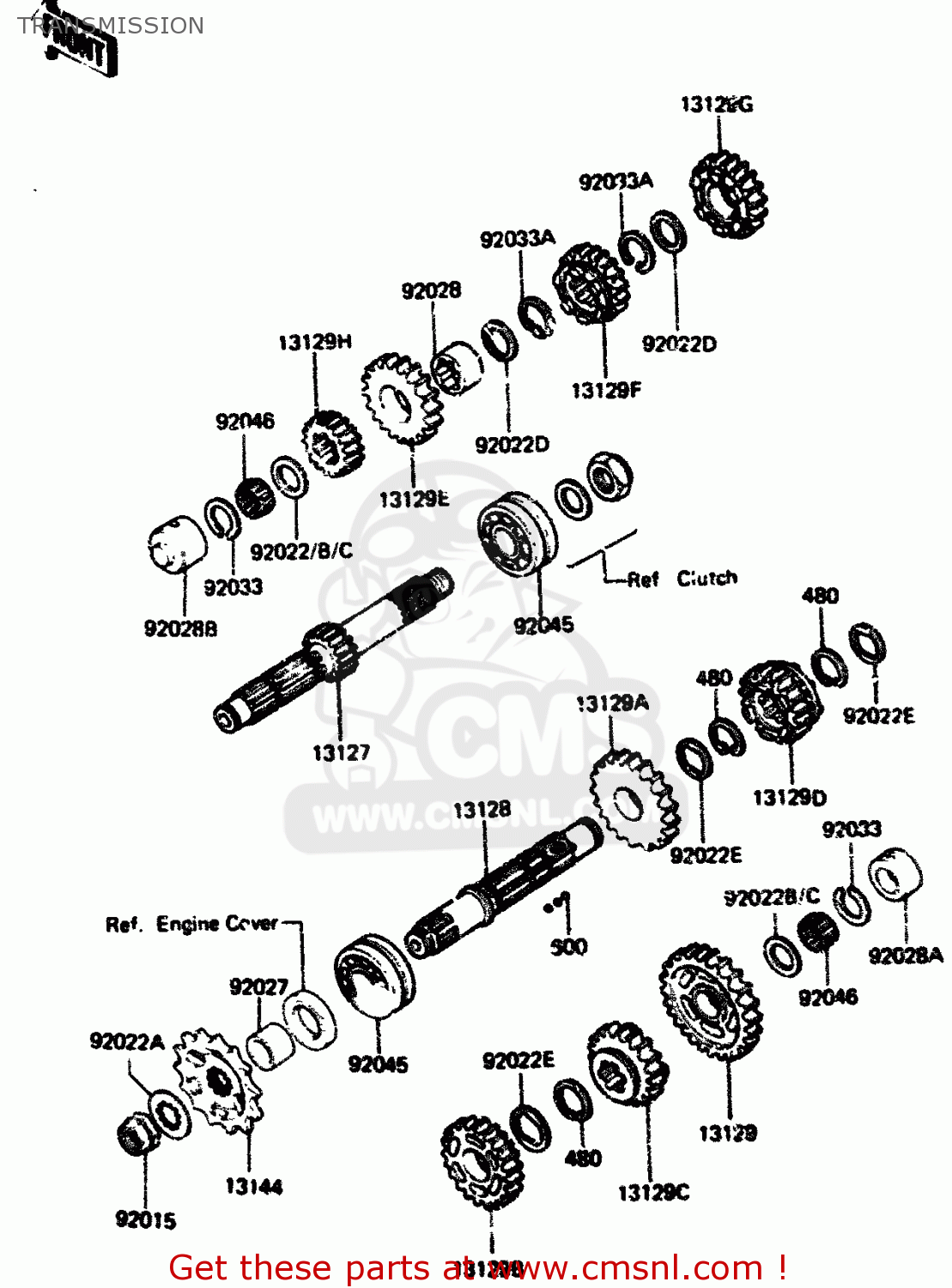

Transmission diagram ZX750A2 1984 EUROPE UK FR GR IT NR SD
TRANSMISSION ZX750A2 1984 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
13127
131271018
ref: 13127
SHAFT-TRANSMISSION IN
€ 232.50
13128
131281051
ref: 13128
SHAFT-TRANSMISSION OU
€ 154.50
13129
131291046
ref: 13129
GEAR,OUTPUT LOW,35T
€ 105.00
13129A
131291047
ref: 13129A
2ND GEAR,OUTPUT SHAFT
€ 107.00
13129B
131291048
ref: 13129B
3RD GEAR,OUTPUT SHAFT
€ 100.00
13129C
131291049
ref: 13129C
4TH GEAR,OUTPUT SHAFT
€ 107.00
13129D
131291201
ref: 13129D
GEAR,OUTPUT TOP,21T
€ 142.50
13129E
131291425
ref: 13129E
GEAR,INPUT TOP,24T
€ 151.50
13129F
131291445
ref: 13129F
GEAR,INPUT 3RD,22T
€ 84.50
13129G
131291446
ref: 13129G
GEAR,INPUT 4TH,25T
€ 70.50
13129H
13130041
ref: 13129H
2ND GEAR,DRIVE
€ 69.50
13144
131441084
ref: 13144
SPROCKET-OUTPUT,15T
€ 39.50
92015
920151044
ref: 92015
NUT,20M/M,WASHR BASED
€ 10.50
92022
920221026
ref: 92022
WASHER,20.3X30X0.7,ST
€ 4.00
92022A
920221076
ref: 92022A
WASHER,LOCK,20M/M
€ 4.50
92022B
92022112
ref: 92022B
WASHER,20.5X30X1,STEE
€ 6.00
92022C
92022144
ref: 92022C
SHIM-KICK SHAFT
€ 4.50
92022D
92022161
ref: 92022D
WASHER-THRUST,25MM
€ 7.00
92022E
92022069
ref: 92022E
WASHER,PLAIN,6MM
€ 2.50
92027
920271106
ref: 92027
COLLAR,25X32X23.5
€ 8.00
92028
920281007
ref: 92028
BUSHING,INPUT TOP GEA
€ 26.50
92028A
920281151
ref: 92028A
BUSHING,27X34X18.6
€ 19.00
92028B
920281199
ref: 92028B
BUSHING,INPUT SHAFT
€ 52.00
92033
92033015
ref: 92033
CIRCLIP
€ 2.50
92033A
92033026
ref: 92033A
CIRCLIP
€ 6.00
92045
92045035
ref: 92045
BEARING-BALL,83993SH2
€ 66.50
92046
920461045
ref: 92046
BEARING-NEEDLE,20V271
€ 25.00
480
480J3000
ref: 480
CIRCLIP-TYPE-C,30MM
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
