CRANKCASE
ZX750A2 1984 EUROPE UK FR GR IT NR SD

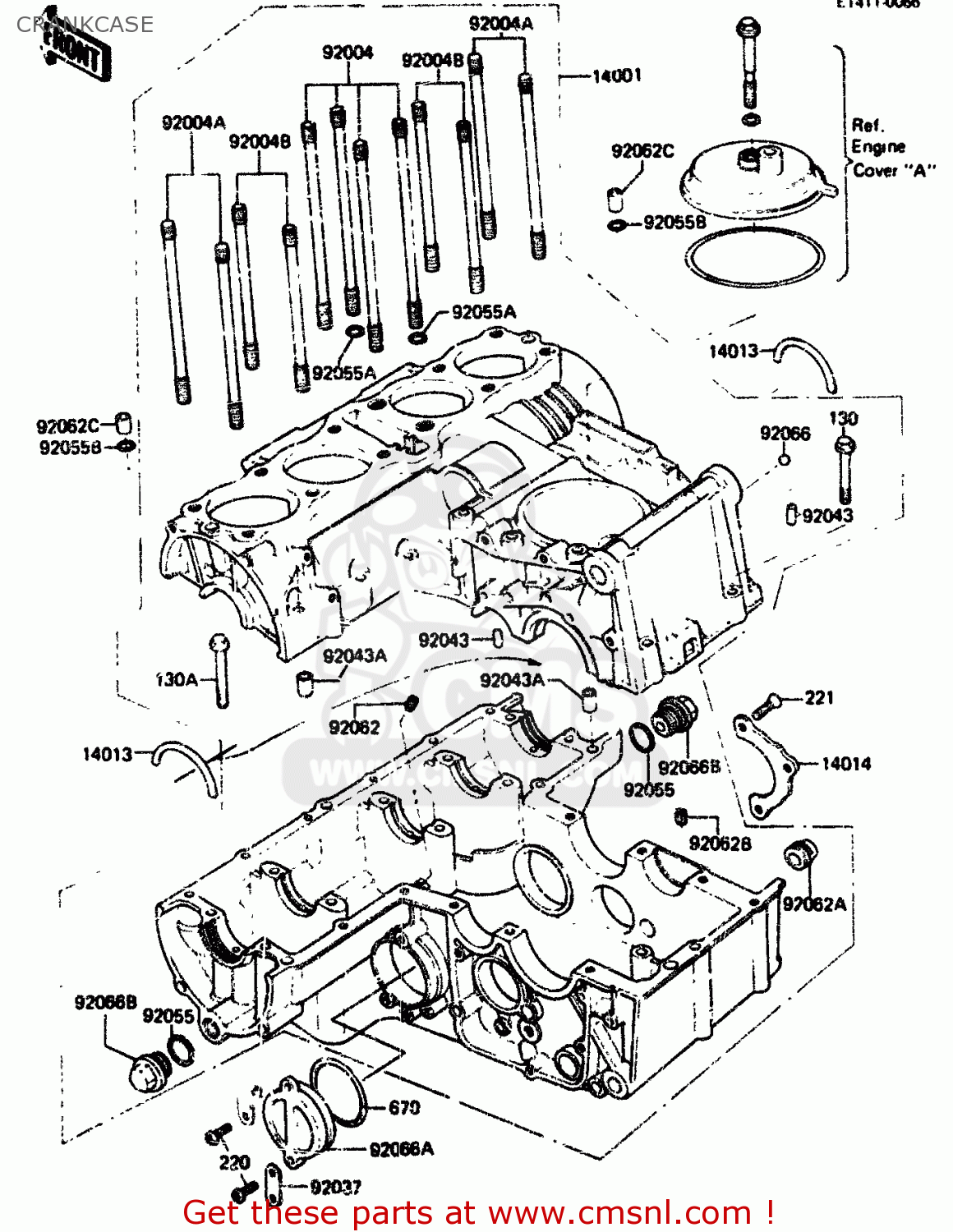

Crankcase diagram ZX750A2 1984 EUROPE UK FR GR IT NR SD
CRANKCASE ZX750A2 1984 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
14001
140015120
ref: 14001
SET-CRANKCASE,F.BLACK
€ 1,946.50
14013
14013004
ref: 14013
RING-BEARING SETTING
€ 7.00
14014
140141007
ref: 14014
PLATE-POSITION,SECOND
€ 7.00
92004
92004062
ref: 92004
STUD, 10X153
€ 13.50
92004A
920041004
ref: 92004A
STUD, 10X133
€ 11.50
92004B
920041007
ref: 92004B
STUD, 10X116
€ 6.00
92037
920371299
ref: 92037
CLAMP
€ 1.50
92043
92042016
ref: 92043
PIN,DOWEL,6X16
€ 3.50
92043A
920431037
ref: 92043A
PIN,DOWEL,10X8.2X14
€ 0.50
92055
92055097
ref: 92055
'O' RING,PLUG
€ 5.50
92055A
92055099
ref: 92055A
O RING, 8.8MM
€ 3.00
92055B
92055101
ref: 92055B
O RING, 9.8MM
€ 1.00
92062
92062011
ref: 92062
NOZZLE,OIL
€ 5.50
92062A
92062014
ref: 92062A
NOZZLE
€ 6.00
92062B
92062015
ref: 92062B
NOZZLE
€ 4.00
92062C
92062016
ref: 92062C
NOZZLE
€ 3.50
92066
92066057
ref: 92066
PLUG,RUBBER BALL,6.7
€ 3.00
92066A
920661019
ref: 92066A
PLUG,SECONDARY SHAFT,
€ 12.50
92066B
920661096
ref: 92066B
PLUG,MAIN GALLARY,18X
€ 7.50
130
130J0640
ref: 130
BOLT-FLANGED,6X40,BLA
€ 3.00
130A
130J0650
ref: 130A
BOLT-FLANGED,6X50,BLA
€ 2.50
220
220B0620
ref: 220
SCREW-PAN HEAD,6X20
€ 2.50
221
221B0620
ref: 221
SCREW-CNTSNK HD,6X20
€ 0.50
670
670B3046
ref: 670
O RING,46MM
€ 3.50
