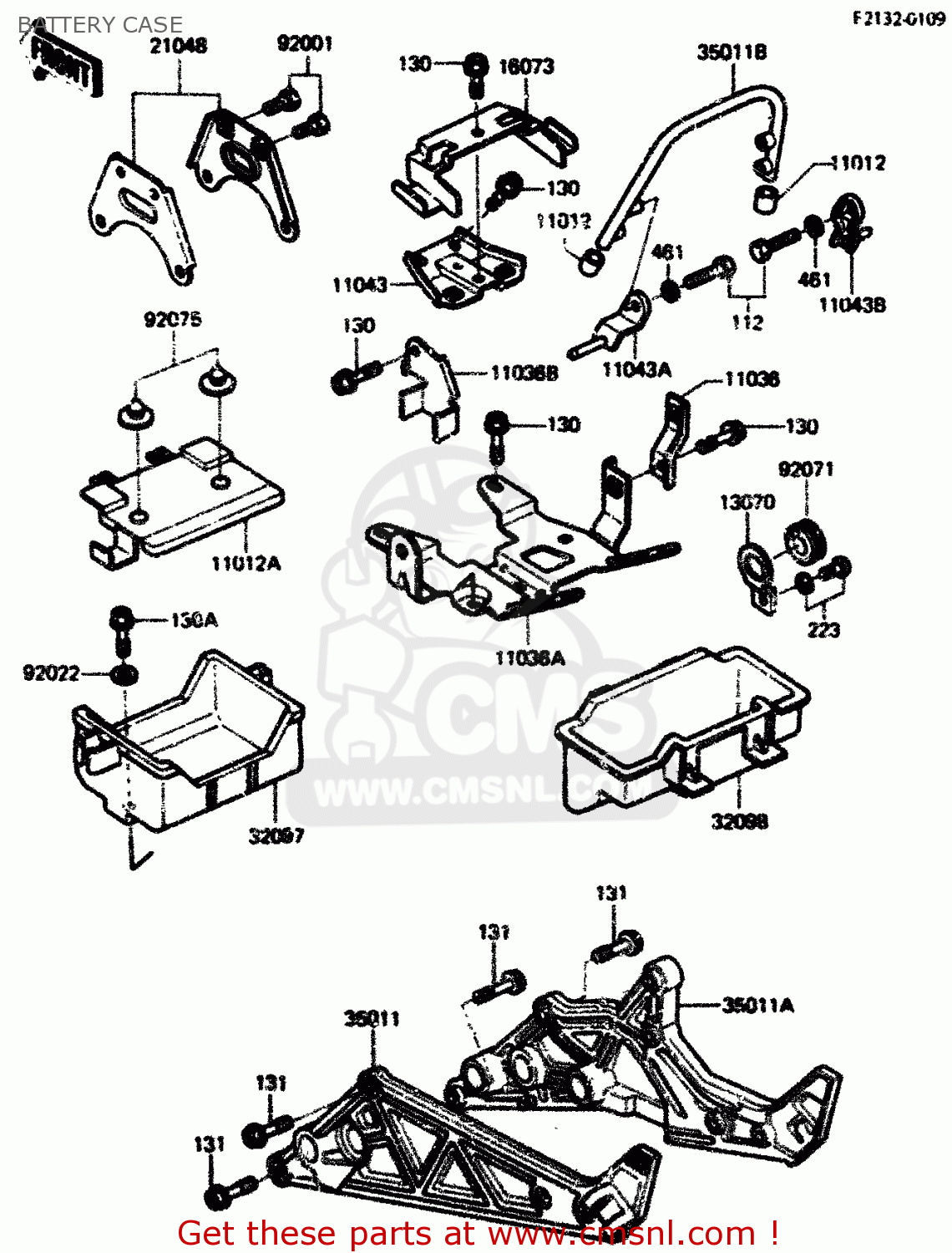

BATTERY CASE

ref

part #

description

quantity

11012

110121290
ref: 11012

CAP,RR STAY END

€ 3.00

11012A

110121292
ref: 11012A

CAP,BATTERY

€ 9.50

11036

110361345
ref: 11036

BRACKET-A,RESERVOIR

€ 5.00

11036A

110361967
ref: 11036A

BRACKET-A,ELECTRO BAS

€ 14.50

11036B

110361968
ref: 11036B

BRACKET-A,MAGNETIC SW

€ 2.00

11043

110431129
ref: 11043

BRACKET-B,REGULATOR

€ 6.50

11043A

110431144
ref: 11043A

BRACKET-B,RR STAY,LH

€ 17.50

11043B

110431145
ref: 11043B

BRACKET-B,RR STAY,RH

€ 15.50

13070

130701023
ref: 13070

GUIDE,RATCHET

€ 4.00

16073

160731018
ref: 16073

INSULATOR,REGULATOR

€ 7.50

21048

210481006
ref: 21048

PLATE-COIL

€ 9.50

32097

320971065
ref: 32097

CASE-BATTERY

€ 51.50

32098

320981028
ref: 32098

CASE-TOOL

€ 21.00

35011

350111160
ref: 35011

STAY,MUFFLER,LH

€ 185.00

35011A

350111161
ref: 35011A

STAY,MUFFLER,RH

€ 194.50

35011B

350111176
ref: 35011B

STAY,RR

€ 122.00

92001

92001137
ref: 92001

BOLT,HEX HEAD,6M/M

€ 4.00

92022

92022240
ref: 92022

WASHER,7X18X1.2,BLACK

€ 1.00

92071

92071056
ref: 92071

GROMMET

€ 2.50

92075

92075078
ref: 92075

DAMPER,RUBBER

€ 2.50

112

112G0630
ref: 112

BOLT-UPSET

€ 1.00

130

130B0610
ref: 130

BOLT,FLANGED,6X10

€ 0.50

130A

130B0612
ref: 130A

BOLT-FLANGED,6X12

€ 0.50

131

131J1025
ref: 131

BOLT-FLANGED,10X25,BL

€ 3.00

223

223B0612
ref: 223

SCREW-PAN-WS-CROS

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50
