IGNITION SWITCH/LOCK (ZX750-A2)

ZX750A2 1984 EUROPE UK FR GR IT NR SD

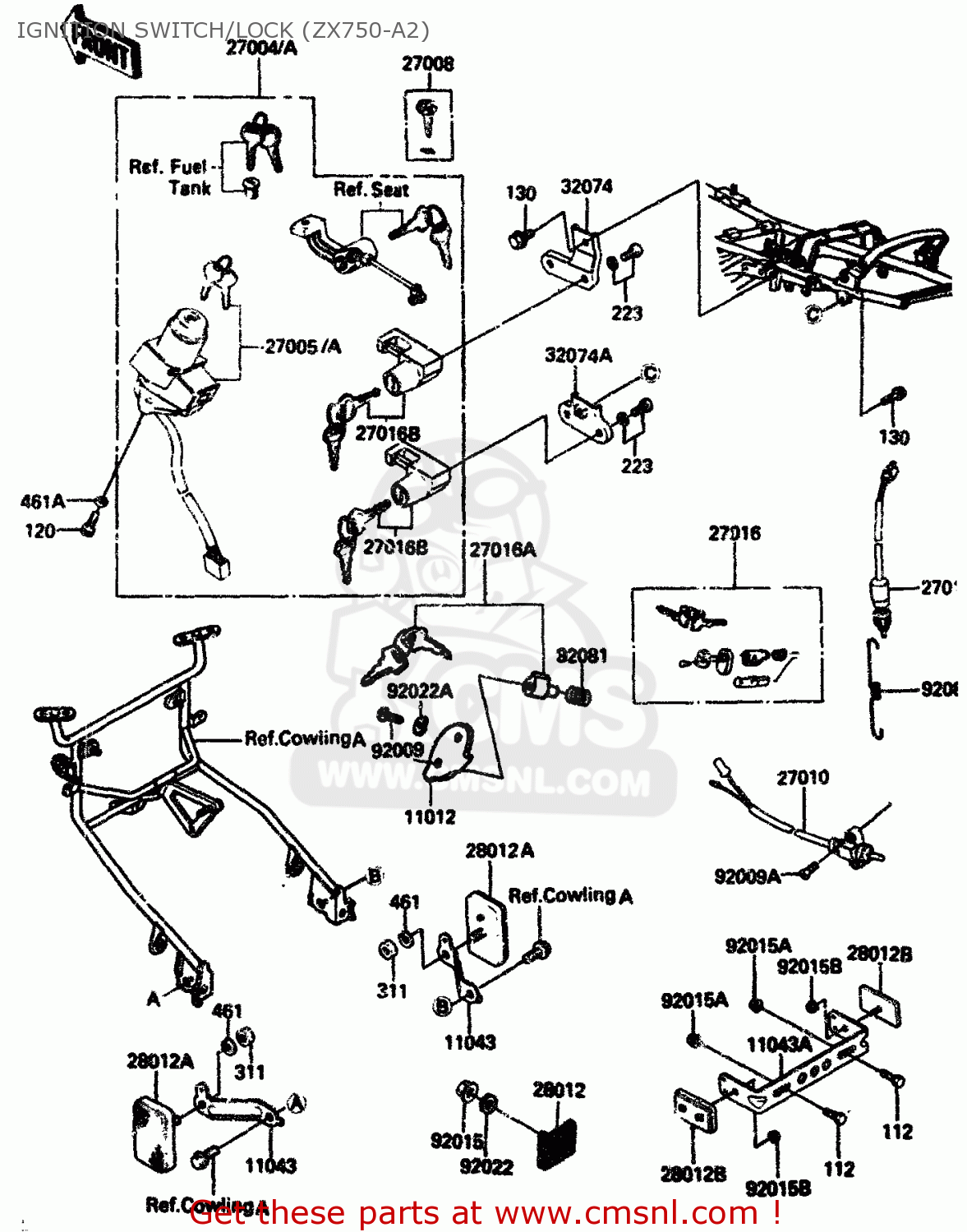

Ignition switch/lock (zx750-a2) diagram ZX750A2 1984 EUROPE UK FR GR IT NR SD

IGNITION SWITCH/LOCK (ZX750-A2) ZX750A2 1984 EUROPE UK FR GR IT NR SD
IGNITION SWITCH/LOCK (ZX750-A2) ZX750A2 1984 EUROPE UK FR GR IT NR SD
IGNITION SWITCH/LOCK (ZX750-A2) ZX750A2 1984 EUROPE UK FR GR IT NR SD
prices are in EUR
ref
part #
description
quantity
11012
110121134
ref: 11012
WG
CAP,STEERING LOCK
110121134
€ 4.50
11043
110431456
ref: 11043
EU
BRACKET-B,REFLECTOR
€ 9.50
11043A
110431619
ref: 11043A
EU (OPTION)
BRACKET,REFLECTOR,RR
110431619
€ 9.00
27004
270045212
ref: 27004
EU, FR, GR, IT, NR,
SWITCH-ASSY
€ 222.50
27004A
270045213
ref: 27004A
SD, WG
SWITCH-ASSY
€ 223.50
27005
270055036
ref: 27005
EU, FR, GR, IT, NR,
SWITCH-ASSY-IGNITION
€ 235.50
27005A
270055037
ref: 27005A
SD, WG
SWITCH-ASSY-IGNITION
€ 154.00
27008
270081103
ref: 27008
(OPTION)
KEY-LOCK,BLANK
270081103
€ 13.50
27010
270101065
ref: 27010
SWITCH,SIDE STAND
270101065
€ 53.00
27010A
270101093
ref: 27010A
SWITCH,BRAKE LAMP
270101093
€ 20.00
27016

ref: 27016
SD (LOCAL PROCUREMEN
27016A

ref: 27016A
WG (LOCAL PROCUREMEN
27016B
270165070
ref: 27016B
LOCK-ASSY,HELMET
270165070
€ 43.00
28012
280121002
ref: 28012
REFLECTOR,REFLEX
280121002
€ 12.50
28012A
280121003
ref: 28012A
EU
REFLECTOR,REFLEX
280121003
€ 15.00
28012B
280121003
ref: 28012B
EU (OPTION)
REFLECTOR,REFLEX
280121003
€ 15.00
32074
320741058
ref: 32074
BRACKET-LOCK,HELMET,F
€ 7.50
32074A
320741059
ref: 32074A
BRACKET-LOCK,HELMET,R
320741059
€ 7.50
92009
92008007
ref: 92009
WG
SCREW-TAPPING
92008007
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92015A
920151193
ref: 92015A
EU (OPTION)
NUT,FLANGED,6MM
920151193
€ 0.50
92015B
920151259
ref: 92015B
EU (OPTION)
NUT,FLANGED,5MM
920151259
€ 2.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
92022125
€ 1.00
92022A
92097003
ref: 92022A
WG
WASHER
92097003
€ 2.50
92081
27011021
ref: 92081
SPRING,BRAKE LAMP SW
27011021
€ 15.50
92081A
27032001
ref: 92081A
WG
SPRING-STEERING LOCK
27032001
€ 3.50
112
112B0612
ref: 112
EU (OPTION)
BOLT.6X12
€ 2.00
120
120Q0616
ref: 120
BOLT,SOCKET,6X16
€ 4.50
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
221
221C0520
ref: 221
SCREW-CSK-CROS
221C0520
€ 2.50
223
223B0508
ref: 223
SCREW-PAN-WS-CROS
223B0508
€ 0.50
311
311B0500
ref: 311
EU
NUT-HEX
311B0500
€ 0.50
461
461F0500
ref: 461
EU
WASHER-SPRING,5MM
461F0500
€ 0.50
461A
461F0600
ref: 461A
WASHER-SPRING,6MM
461F0600
€ 0.50
