CARBURETOR
ZX750A2 1984 EUROPE UK FR GR IT NR SD

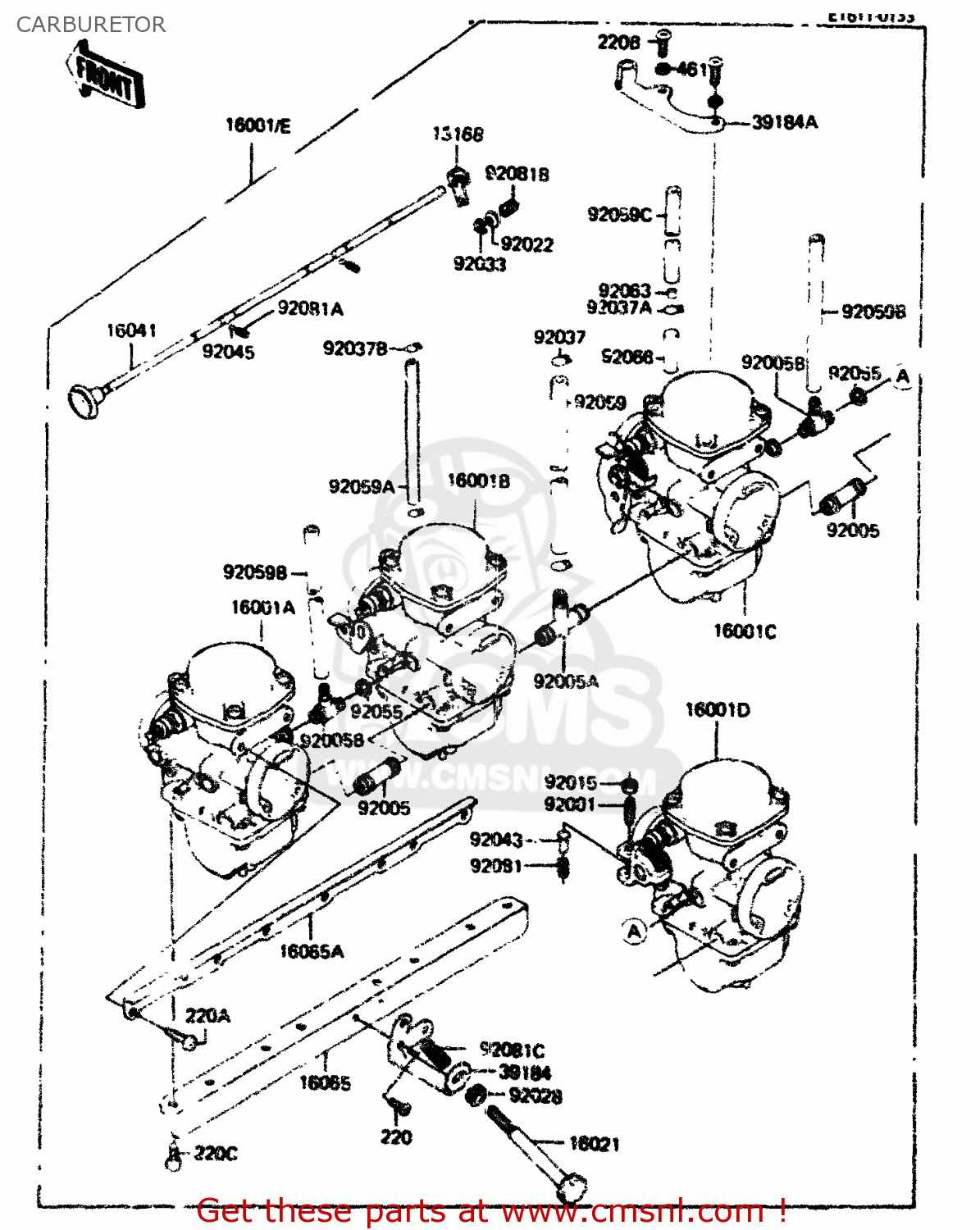

Carburetor diagram ZX750A2 1984 EUROPE UK FR GR IT NR SD
CARBURETOR ZX750A2 1984 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
13168
131681091
ref: 13168
LEVER,CHOKE
€ 6.00
16001
160011823
ref: 16001
EU, FR, GR, IT, NR,
CARBURETOR
€ 1,325.00
16001A
160011824
ref: 16001A
CARBURETOR,LH,OUTSIDE
€ 525.00
16001B
160011825
ref: 16001B
CARBURETOR,LH,INSIDE
€ 525.00
16001C
160011826
ref: 16001C
CARBURETOR,RH,INSIDE
€ 318.00
16001D
160011827
ref: 16001D
CARBURETOR,RH,OUTSIDE
€ 446.00
16001E
160011938
ref: 16001E
ST
CARBURETOR
€ 1,258.00
16021
160211035
ref: 16021
SCREW-THROTTLE STOP
€ 16.50
16041
160411024
ref: 16041
SHAFT-CARBURETOR,CHOK
€ 35.00
16065
160651043
ref: 16065
HOLDER-CARBURETOR,LWR
€ 62.00
16065A
160651044
ref: 16065A
HOLDER-CARBURETOR,UPP
€ 41.00
39184
391841007
ref: 39184
BRACKET-ASSY,IDLING A
€ 20.00
39184A
391841009
ref: 39184A
BRACKET-ASSY,THROTTLE
€ 19.00
92001
920011447
ref: 92001
BOLT,ADJUSTING
€ 6.50
92005
920051033
ref: 92005
FITTING,FUEL TUBE
€ 30.00
92005A
920051036
ref: 92005A
FITTING,FUEL,T-TYPE
€ 48.50
92005B
920051045
ref: 92005B
FITTING,AIR VENT
€ 24.00
92015
920151119
ref: 92015
NUT,THROTTLE VALVE AD
€ 3.50
92022
920221255
ref: 92022
WASHER,SPRING
€ 3.50
92028
920281071
ref: 92028
BUSHING,IDLING ADJUST
€ 4.50
92033
920331066
ref: 92033
RING-SNAP,E-TYPE
€ 3.50
92037
920371184
ref: 92037
CLAMP,HOSE
€ 1.00
92037A
920371235
ref: 92037A
CLAMP,TUBE
€ 2.50
92037B
92037174
ref: 92037B
CLAMP,BREATHER HOSE
€ 1.50
92043
920431079
ref: 92043
PIN,THROTTLE VALVE AD
€ 3.50
92045
920451044
ref: 92045
BEARING-BALL
€ 2.00
92055
92055510
ref: 92055
RING-O
€ 7.50
92059
920591123
ref: 92059
TUBE,7.5X12.5X225
€ 17.00
92059A
920591188
ref: 92059A
TUBE,5X9X150
€ 11.00
92059B
920591203
ref: 92059B
TUBE,6.5X9.5X350
€ 12.50
92059C
920591204
ref: 92059C
TUBE,4.5X8X200
€ 9.00
92063
920631097
ref: 92063
JET-MAIN
€ 8.00
92066
92068006
ref: 92066
RUBBER PLUG
€ 2.50
92081
920811259
ref: 92081
SPRING,THROTTLE VLV
€ 3.00
92081A
920811260
ref: 92081A
SPRING,FAST IDLE SHFT
€ 3.50
92081B
920811364
ref: 92081B
SPRING,CHOCK SHAFT
€ 3.50
92081C
920811377
ref: 92081C
SPRING,IDLING ADJUST
€ 3.00
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
€ 0.50
220A
220C0510
ref: 220A
SCREW-PAN-CROS
€ 2.50
220B
220C0614
ref: 220B
SCREW-PAN-CROS,6X14,B
€ 1.50
223
223C0518
ref: 223
SCREW-PAN-WS-CROS
€ 2.00
