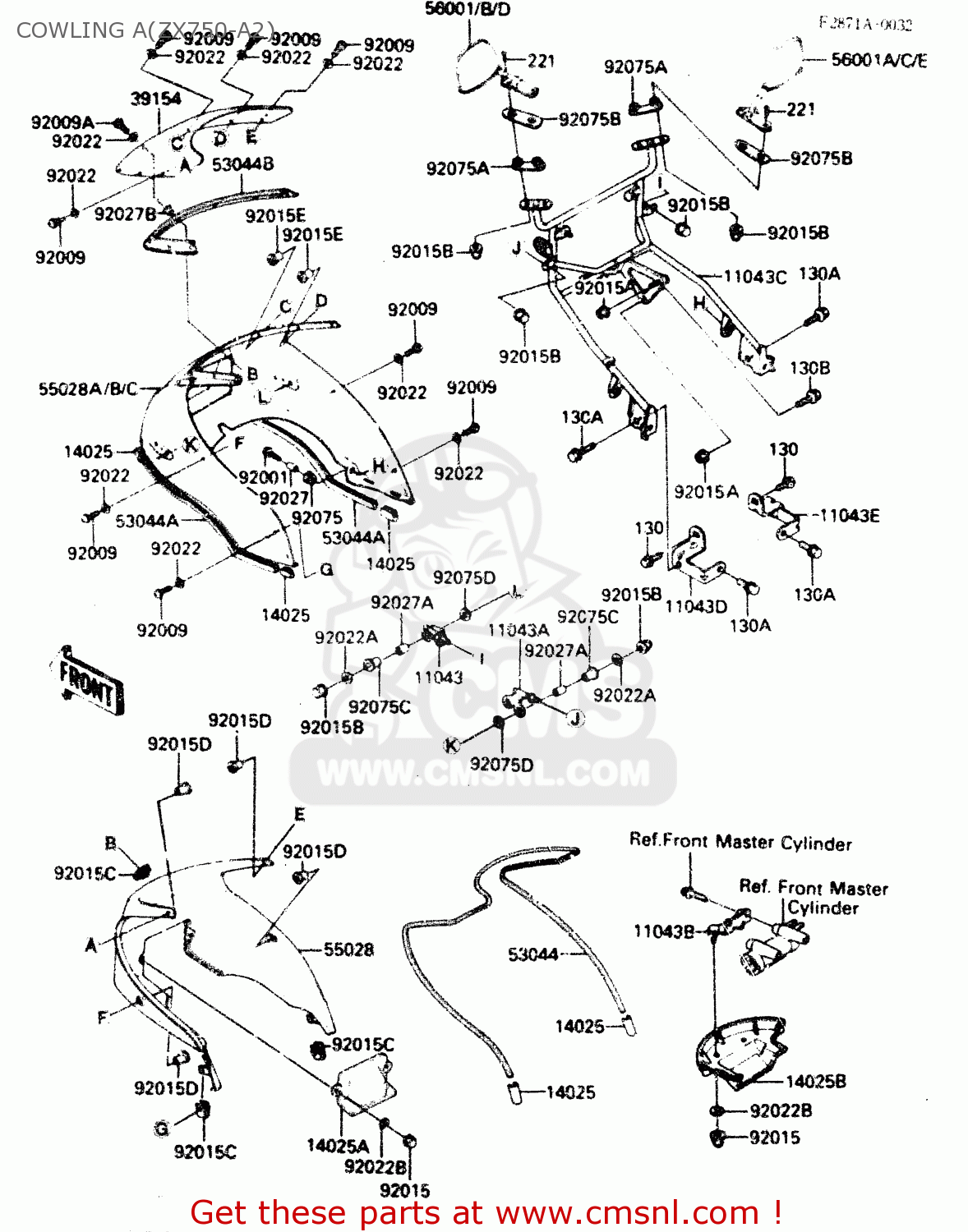

COWLING A(ZX750-A2)

ref

part #

description

quantity

11043

110431278
ref: 11043

BRACKET-B,SIGNAL LAMP

€ 23.50

11043A

110431279
ref: 11043A

BRACKET-B,SIGNAL LAMP

€ 23.50

11043B

110431426
ref: 11043B

BRACKET-B,FUEL FILTER

€ 7.00

11043C

110431441
ref: 11043C

BRACKET-B,COWLING,UPP

€ 204.00

11043D

110431442
ref: 11043D

BRACKET-B,COWLING,LH

€ 9.00

11043E

110431443
ref: 11043E

BRACKET-B,COWLING,RH

€ 10.50

14025

140251756
ref: 14025

COVER,TRIM END

€ 4.50

14025A

140251769
ref: 14025A

COVER,COWLING INNER

€ 17.50

14025B

140251815
ref: 14025B

COVER

€ 17.00

39154

391541052
ref: 39154

WINDSHIELD

€ 422.00

53044

530441110
ref: 53044

TRIM,COWLING

€ 49.00

53044A

530441117
ref: 53044A

TRIM,COWLING

€ 5.50

53044B

530441121
ref: 53044B

TRIM,WINDSHIELD

€ 28.00

55028

550281052
ref: 55028

COWLING,UPP,INNER

€ 44.00

55028A

550285032B1
ref: 55028A
EU, FR, GR, IT, NR,

COWLING,F.RED

€ 655.00

55028B

550285033F2
ref: 55028B
IT, NR, SD, UK, WG

COWLING,G.SILVER

€ 723.00

55028C

550285037F2
ref: 55028C
EU, FR, GR, ST

COWLING,G.SILVER

€ 590.50

56001

560011142
ref: 56001
FR, UK

MIRROR-ASSY,LH

€ 58.50

56001A

560011143
ref: 56001A
FR, UK

MIRROR-ASSY,RH

€ 61.50

56001B

560011144
ref: 56001B
EU, GR, NR, SD, ST,

MIRROR-ASSY,LH

€ 58.50

56001C

560011145
ref: 56001C
EU, GR, WR, SD, ST,

MIRROR-ASSY,RH

€ 61.50

56001D

560011146
ref: 56001D
IT

MIRROR-ASSY,LH

€ 61.50

56001E

560011147
ref: 56001E
IT

MIRROR-ASSY,RH

€ 58.50

92001

920011767
ref: 92001

BOLT-W/SP,6X25

€ 2.50

92009

920091301
ref: 92009

SCREW,5X16

€ 0.50

92009A

920091302
ref: 92009A

SCREW,5X25

€ 2.50

92015

920151170
ref: 92015

NUT,CAP 6MM,BLACK

€ 0.50

92015A

920151183
ref: 92015A

NUT,FLANGED,8MM,BLACK

€ 1.00

92015B

920151193
ref: 92015B

NUT,FLANGED,6MM

€ 0.50

92015C

920151310
ref: 92015C

NUT

€ 4.00

92015D

920151351
ref: 92015D

NUT,COWLING,5MM

€ 2.50

92015E

920151352
ref: 92015E

NUT,COWLING,5MM

€ 3.00

92022

920221521
ref: 92022

WASHER,NYLON,5.3X11.5

€ 2.50

92022A

92022228
ref: 92022A

WASHER-PLAIN,7MM

€ 2.50

92022B

92022240
ref: 92022B

WASHER,7X18X1.2,BLACK

€ 1.00

92027

920271400
ref: 92027

COLLAR,6.8X10X21

€ 3.50

92027A

92027162
ref: 92027A

COLLAR-REAR FENDER

€ 4.50

92027B

920271754
ref: 92027B

COLLAR,COWLING,L=5.5

€ 3.00

92075

920751057
ref: 92075

DAMPER

€ 3.00

92075A

920751492
ref: 92075A

DAMPER,MIRROR

€ 5.00

92075B

920751500
ref: 92075B

DAMPER,MIRROR

€ 5.50

92075C

92075174
ref: 92075C

DAMPER,MALE

€ 3.00

92075D

92075175
ref: 92075D

DAMPER,FEMALE

€ 2.50

130

130C0612
ref: 130

BOLT-FLANGED,6X12

€ 1.50

130A

130C0814
ref: 130A

BOLT-FLANGED

€ 2.50

130B

130C0825
ref: 130B

BOLT-FLANGED,8X25

€ 2.00

221

221C0625
ref: 221

SCREW-CSK-CROS,6X25,B

€ 3.00

all assemblies
