CYLINDER/PISTON

ZX750A2 1984 EUROPE UK FR GR IT NR SD

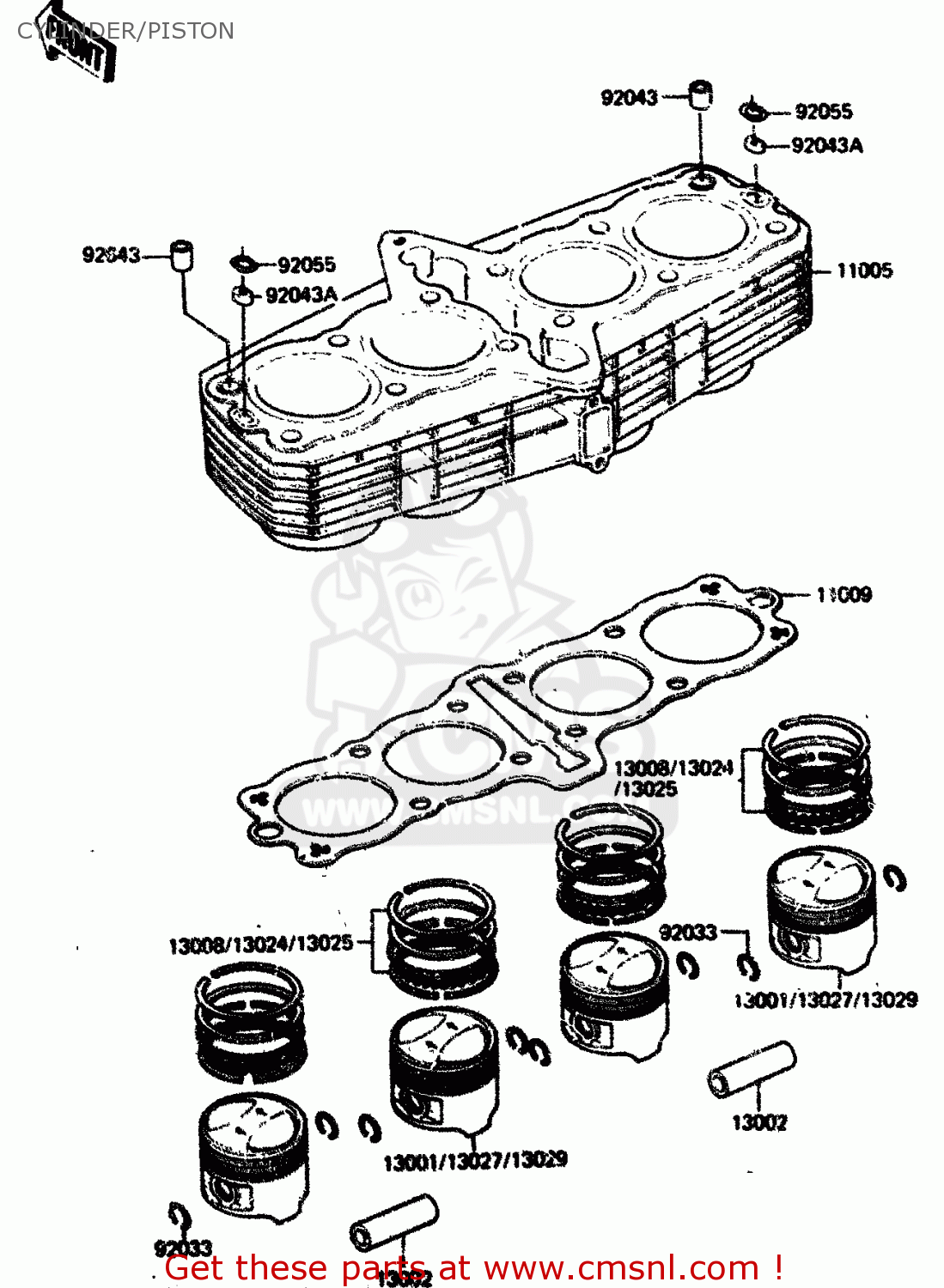

Cylinder/piston diagram ZX750A2 1984 EUROPE UK FR GR IT NR SD

prices are in EUR

ref

part #

description

quantity

11005

110051306
ref: 11005

CYLINDER-ENGINE,F.BLA

€ 1,267.00

11009

110091154
ref: 11009

GASKET,CYLINDER BASE (MCA)

€ 23.50

13001

130011098
ref: 13001

PISTON-ENGINE,STD

€ 94.50

13002

130021001
ref: 13002

PIN-PISTON

€ 4.00

13008

130085046
ref: 13008

RING-SET-PISTON,STD

€ 56.00

13024

130245022
ref: 13024

RING-SET-PISTON LL,O/

€ 67.00

13025

130255022
ref: 13025

RING-SET-PISTON L,O/S

€ 67.00

13027

130271045
ref: 13027

PISTON-ENGINE LL,O/S

€ 70.50

13029

130291046
ref: 13029

PISTON-ENGINE L,O/S 0

€ 50.50

92033

92036005
ref: 92033

CIRCLIP-PISTON PIN

€ 2.50

92043

92042028
ref: 92043

PIN-DOWEL

€ 1.00

92043A

920431059
ref: 92043A

PIN,OIL LINE

€ 4.50

92055

920551147
ref: 92055

RING-O,CYLINDER OIL L

€ 6.00
