SUSPENSION
ZX750A2 1984 EUROPE UK FR GR IT NR SD

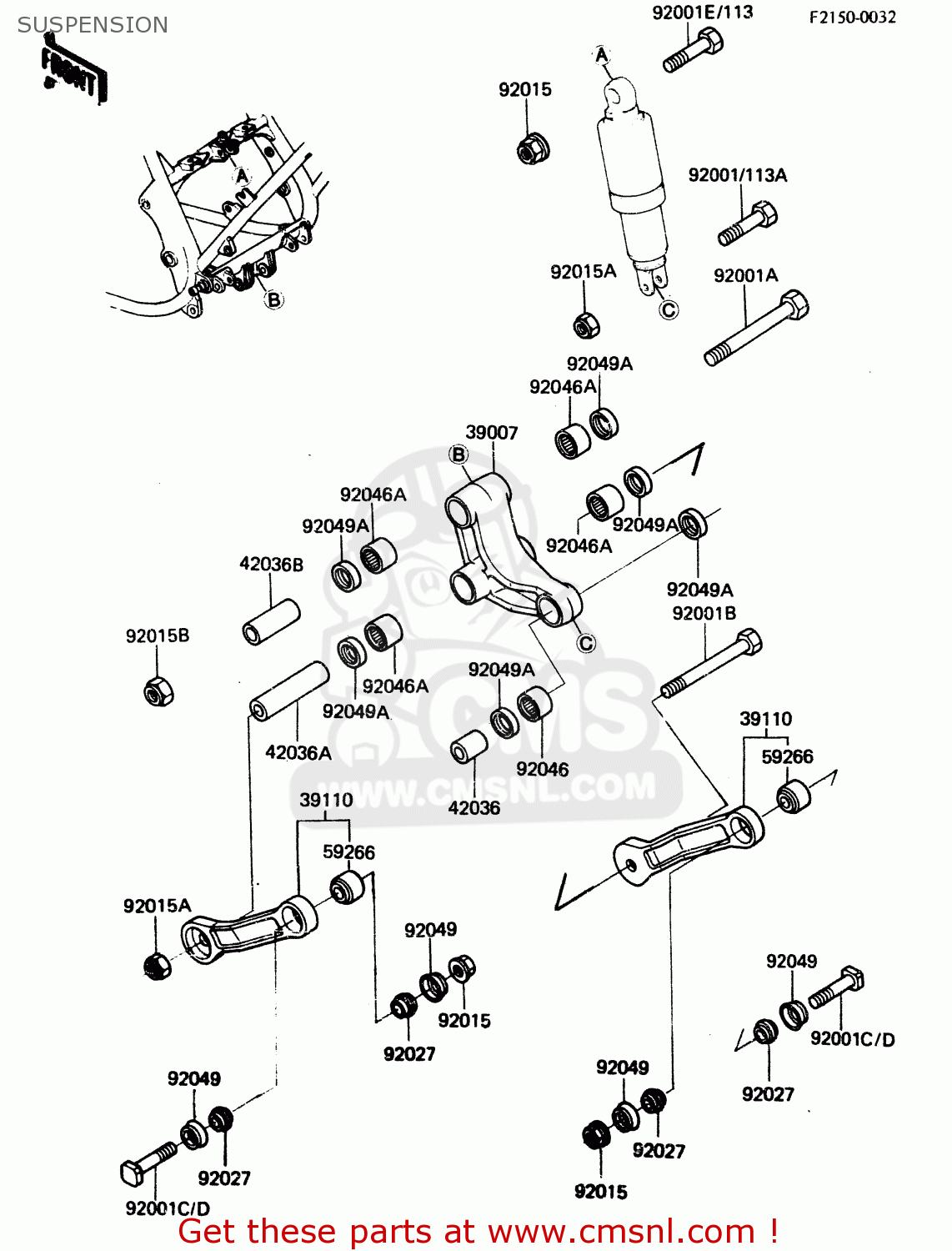

Suspension diagram ZX750A2 1984 EUROPE UK FR GR IT NR SD
SUSPENSION ZX750A2 1984 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
39007
390071026
ref: 39007
ARM-SUSP,UNI TRAK
€ 76.00
39110
391101017
ref: 39110
ROD-ASSY-TIE
€ 128.50
42036
420361072
ref: 42036
SLEEVE,12.1X20X26
€ 9.50
42036A
420361075
ref: 42036A
SLEEVE,12.1X20X84
€ 17.00
42036B
420361084
ref: 42036B
SLEEVE,14.1X20X55
€ 15.50
59266
592661008
ref: 59266
JOINT-BALL
€ 67.50
92001
920011497
ref: 92001
BOLT,12X55
€ 6.50
92001A
920011808
ref: 92001A
BOLT,14X108
€ 10.00
92001B
920011809
ref: 92001B
BOLT,12X106
€ 9.00
92001D
920011908
ref: 92001D
BOLT,10X45
€ 8.50
92001E
92003090
ref: 92001E
BOLT-HEX HEAD,10X50
€ 5.50
92015
920151234
ref: 92015
NUT,FLANGED,10MM
€ 3.00
92015A
92019009
ref: 92015A
NUT,LOCK,12MM
€ 5.00
92015B
92019011
ref: 92015B
NUT,LOCK,14MM
€ 6.00
92027
920271392
ref: 92027
COLLAR,L=5.5
€ 3.50
92046
920461034
ref: 92046
BEARING-NEEDLE,BK1312
€ 18.00
92046A
920461061
ref: 92046A
BEARING-NEEDLE,FJ-202
€ 22.50
92049
920491083
ref: 92049
SEAL-OIL
€ 14.00
92049A
920491108
ref: 92049A
SEAL-OIL,GD20X26X4
€ 7.50
