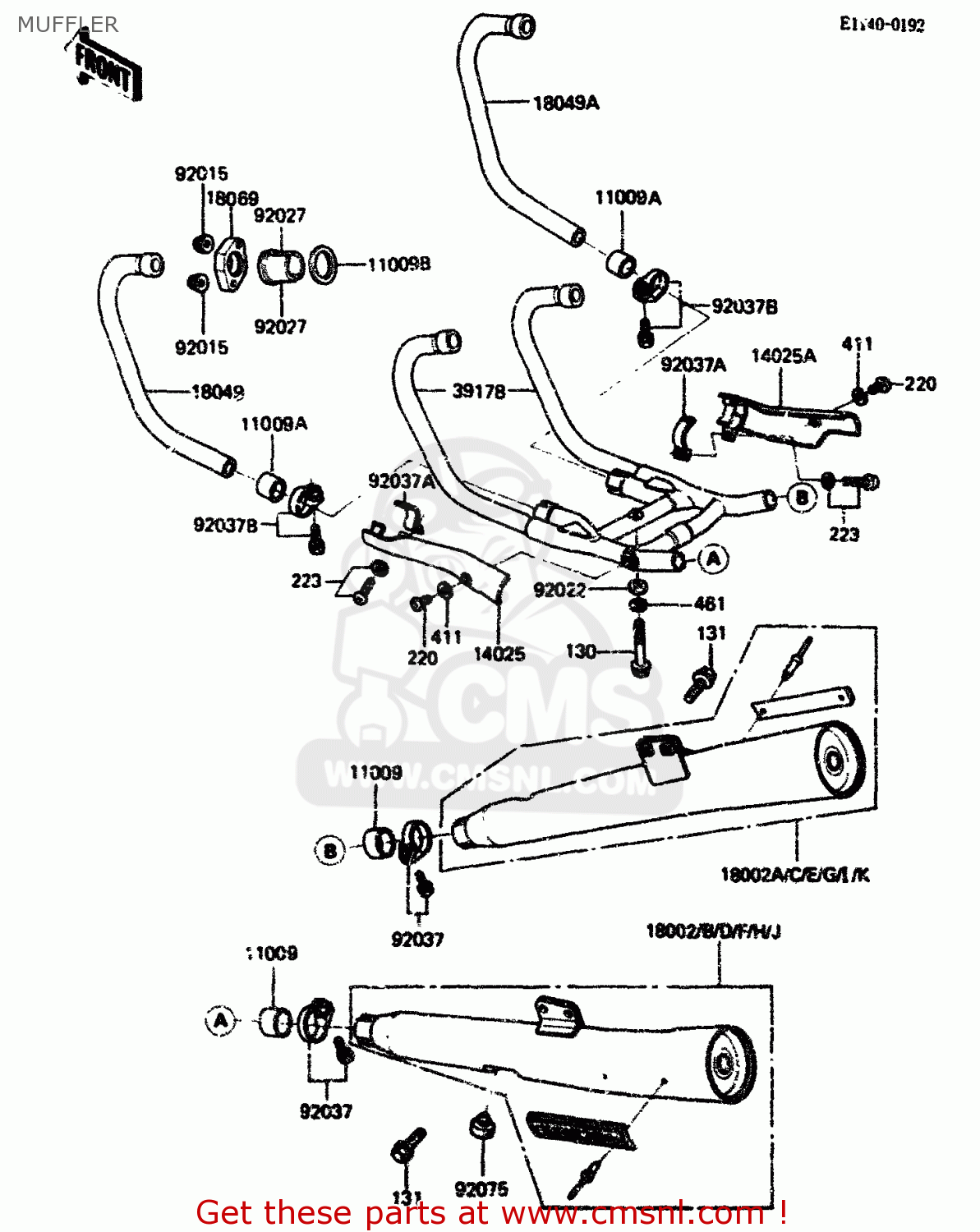

MUFFLER

ref

part #

description

quantity

11009

110091002
ref: 11009

GASKET,EXH PIPE CONT (MCA)

€ 20.50

11009A

110091073
ref: 11009A

GASKET,EXHAUST PIPE (MCA)

€ 15.00

11009B

18067004
ref: 11009B

GASKET-EXHAUST PIPE (MCA)

€ 7.50

14025

140251612
ref: 14025

COVER,MUFFLER,LH

€ 65.00

14025A

140251613
ref: 14025A

COVER,MUFFLER,RH

€ 65.00

18002

180021496
ref: 18002
SD

BODY-COMP-MUFFLER,LH

€ 232.00

18002A

180021497
ref: 18002A
SD

BODY-COMP-MUFFLER,RH

€ 232.00

18002B

180021498
ref: 18002B
EU, FR, GR, IT, NR,

BODY-COMP-MUFFLER,LH

€ 318.00

18002C

180021499
ref: 18002C
EU, FR, GR, IT, NR,

BODY-COMP-MUFFLER,RH

€ 318.00

18002D

180021500
ref: 18002D
ST

BODY-COMP-MUFFLER,LH

€ 238.50

18002E

180021501
ref: 18002E
ST

BODY-COMP-MUFFLER,RH

€ 220.50

18049

180491178
ref: 18049

PIPE-EXHAUST,#2,BLACK

€ 114.50

18049A

180491179
ref: 18049A

PIPE-EXHAUST,#3,BLACK

€ 107.50

18069

180691029
ref: 18069

HOLDER-EXHAUST PIPE,F

€ 15.00

39178

391781020
ref: 39178

MANIFOLD-COMP-EXHAUST

€ 329.50

92015

920151174
ref: 92015

NUT,CAP,8MM,BLACK

€ 3.00

92022

92022176
ref: 92022

WASHER,10X22X3.2

€ 3.00

92027

920271456
ref: 92027

COLLAR,L=14.5,BLACK

€ 3.00

92037

920371270
ref: 92037

CLAMP,MUFFLER,BLACK

€ 13.50

92037A

920371319
ref: 92037A

CLAMP,MUFFLER COVER

€ 7.50

92037B

920371350
ref: 92037B

CLAMP,42MM,BLACK

€ 24.50

92075

92075015
ref: 92075

DAMPER RUBB-MAIN STND

€ 3.00

130

130G0865
ref: 130

BOLT-FLANGED,8X65

€ 5.50

131

131J0825
ref: 131

BOLT-FLANGED,8X20,BLA

€ 2.00

220

220C0608
ref: 220

SCREW-PAN-CROS,6X8

€ 1.00

223

223C0620
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

411

411F0600
ref: 411

WASHER-PLAIN,6MM,BLAC

€ 0.50

461

461F0800
ref: 461

WASHER-SPRING,8MM

€ 0.50

all assemblies
