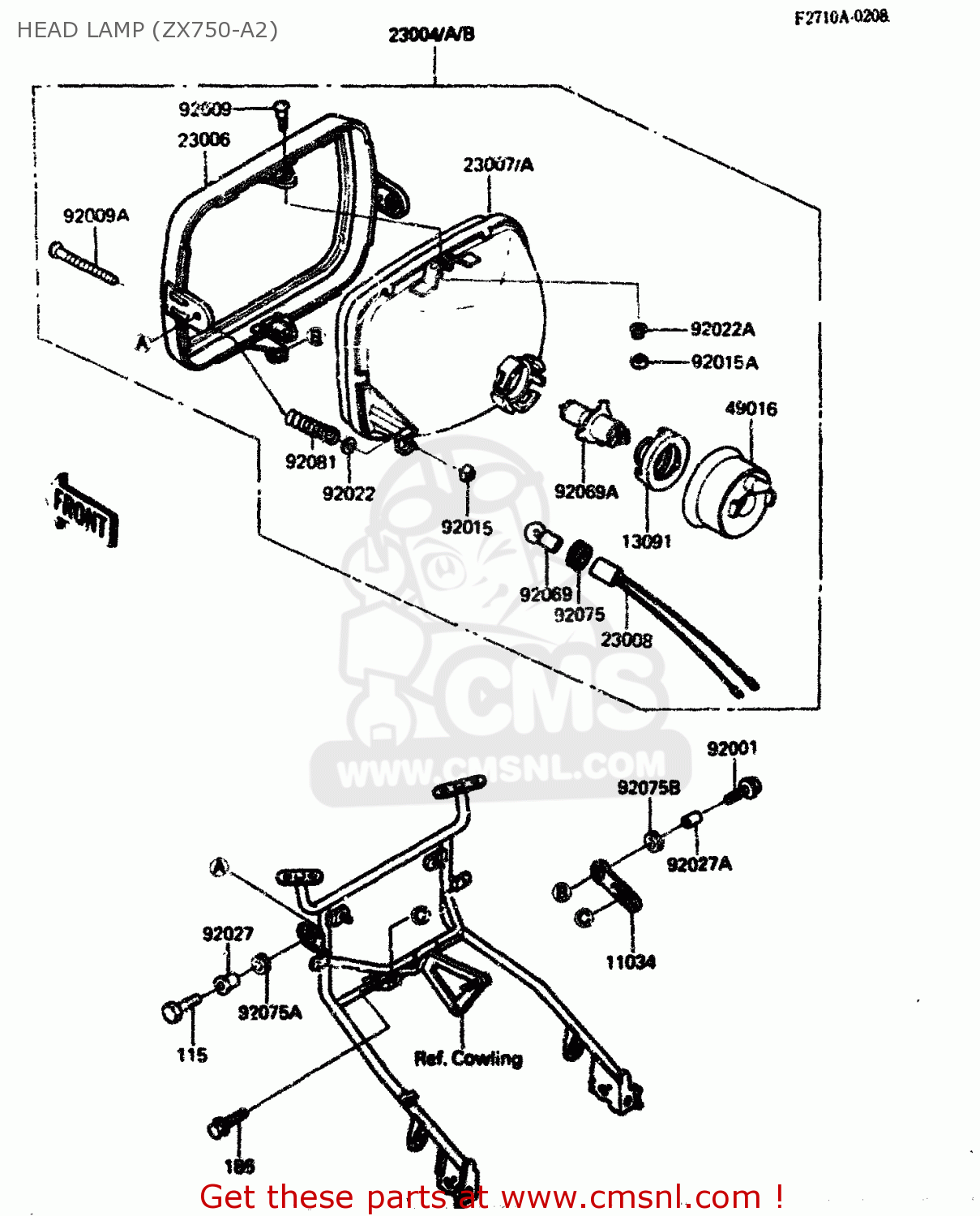

HEAD LAMP (ZX750-A2)

ref

part #

description

quantity

11034

23064022
ref: 11034

BRACKET,HEAD LAMP

€ 4.00

13091

130911036
ref: 13091

HOLDER,HEAD LAMP SOCK

€ 12.50

23004

230041152
ref: 23004
EU, GR, IT, NR, SD,

LAMP-HEAD

€ 374.00

23004A

230041153
ref: 23004A
FR

LAMP-HEAD

€ 274.00

23004B

230041154
ref: 23004B
UK

LAMP-HEAD

€ 584.00

23006

230061051
ref: 23006

RIM-LAMP

€ 56.50

23007

230071042
ref: 23007
EU, FR, GR, IT, NR,

LENS-COMP,HEAD LAMP

€ 180.00

23007A

230071043
ref: 23007A
UK

LENS-COMP,HEAD LAMP

€ 197.50

23008

23008038
ref: 23008

SOCKET-ASSY,PARKING L

€ 7.50

49016

490161023
ref: 49016

COVER-SEAL,HEAD LAMP

€ 11.50

92001

920011774
ref: 92001

BOLT,6X22

€ 2.00

92009

23019023
ref: 92009

SCREW-PAN HEAD,5X12

€ 3.50

92009A

920091047
ref: 92009A

SCREW,HEAD LAMP LENS

€ 3.00

92015

23020018
ref: 92015

NUT,4MM,FOCUS ADJUST

€ 3.00

92015A

23020020
ref: 92015A

NUT,5MM

€ 3.00

92022

23021004
ref: 92022

WASHER,4.1X8X0.8

€ 2.00

92022A

23021012
ref: 92022A

WASHER

€ 3.00

92027

920271154
ref: 92027

COLLAR,25.2X29.8X23

€ 12.00

92027A

92027162
ref: 92027A

COLLAR-REAR FENDER

€ 4.50

92069

ref: 92069
(LOCAL PROCUREMENT I

92069A

920691002
ref: 92069A
EU, GR, IT, NR, SD,

BULB,12V-60155W

€ 15.00

92069B

ref: 92069B
FR (LOCAL PROCUREMEN

92075

23066008
ref: 92075

DAMPER,PARKING LAMP

€ 3.00

92075A

920751369
ref: 92075A

DAMPER,25X31X50

€ 4.50

92075B

92075209
ref: 92075B

DAMPER RUBBER

€ 3.00

92081

920811103
ref: 92081

SPRING,HEAD LAMP LENS

€ 3.00

186

186B0614
ref: 186

BOLT-UPSET-WP

€ 0.50
