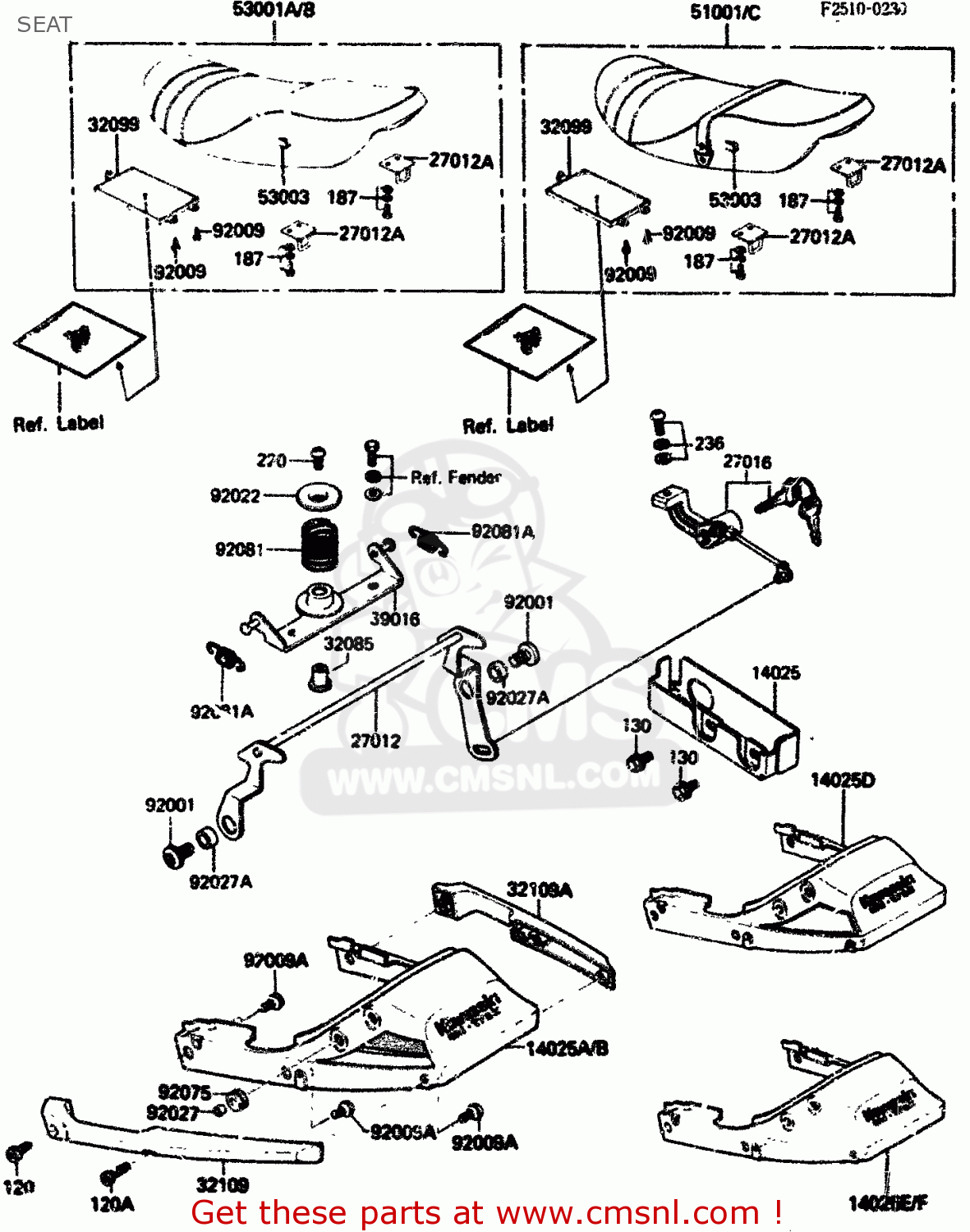

SEAT

ref

part #

description

quantity

14025

140251656
ref: 14025

COVER,SEAT LOCK

€ 14.00

14025D

140255123F2
ref: 14025D
EU, FR, GR, ST

COVER,SEAT,G.SILVER

€ 303.50

14025E

140255136B1
ref: 14025E
EU, FR, GR, IT, NR,

COVER,SEAT,F.RED

€ 170.00

14025F

140255136F2
ref: 14025F
IT, NR, SD, UK, WG

COVER,SEAT,G.SILVER

€ 178.00

27012

270121039
ref: 27012

HOOK,SEAT LOCK

€ 20.00

27012A

53008021
ref: 27012A

HOOK,SEAT

€ 7.50

27016

270165071
ref: 27016

LOCK-ASSY,SEAT

€ 66.50

32085

320851130
ref: 32085

STOPPER,SPRING

€ 4.50

32099

32099011
ref: 32099

CASE,MANUAL

€ 11.50

32109

321091046
ref: 32109

GRIP-FRAME,SEAT,LH

€ 122.00

32109A

321091047
ref: 32109A

GRIP-FRAME,SEAT,RH

€ 128.50

39016

390161003
ref: 39016

BRACKET-SPRING MOUNT,

€ 9.50

53001B

530011352
ref: 53001B
FR, IT, NR, SD, ST,

SEAT-ASSY,DUAL

€ 383.00

53001C

530011355
ref: 53001C
EU, GR

SEAT-ASSY,DUAL,W/BAND

€ 532.00

53003A

530031102
ref: 53003A

LEATHER

€ 151.50

92001

920011841
ref: 92001

BOLT,8X16

€ 2.50

92009

920091043
ref: 92009

SCREW,TAPPING,5X8

€ 3.00

92009A

920091186
ref: 92009A

SCREW,SEAT COVER

€ 2.50

92022

920221411
ref: 92022

WASHER,SEAT

€ 3.00

92027

92027129
ref: 92027

COLLAR,6.8X10X8.5

€ 3.00

92027A

920271565
ref: 92027A

COLLAR,8.2X13X6

€ 1.50

92075

920751028
ref: 92075

DAMPER RUBBER

€ 3.00

92081

920811579
ref: 92081

SPRING,SEAT REMOVER

€ 2.50

92081A

920811580
ref: 92081A

SPRING,HOOK RETURN

€ 4.50

120

120S0825
ref: 120

BOLT-SOCKET

€ 3.00

120A

120S0835
ref: 120A

BOLT-SOCKET,8X35,BLAC

€ 3.00

130

130B0610
ref: 130

BOLT,FLANGED,6X10

€ 0.50

187

187B0614
ref: 187

BOLT-UPSET-WSP

€ 0.50

220

220B0610
ref: 220

SCREW-PAN HEAD,6X10

€ 2.00

236

236B0612
ref: 236

SCREW-PAN-WSP-CROS

€ 2.50
