STARTER MOTOR
ZX750A2 1984 EUROPE UK FR GR IT NR SD

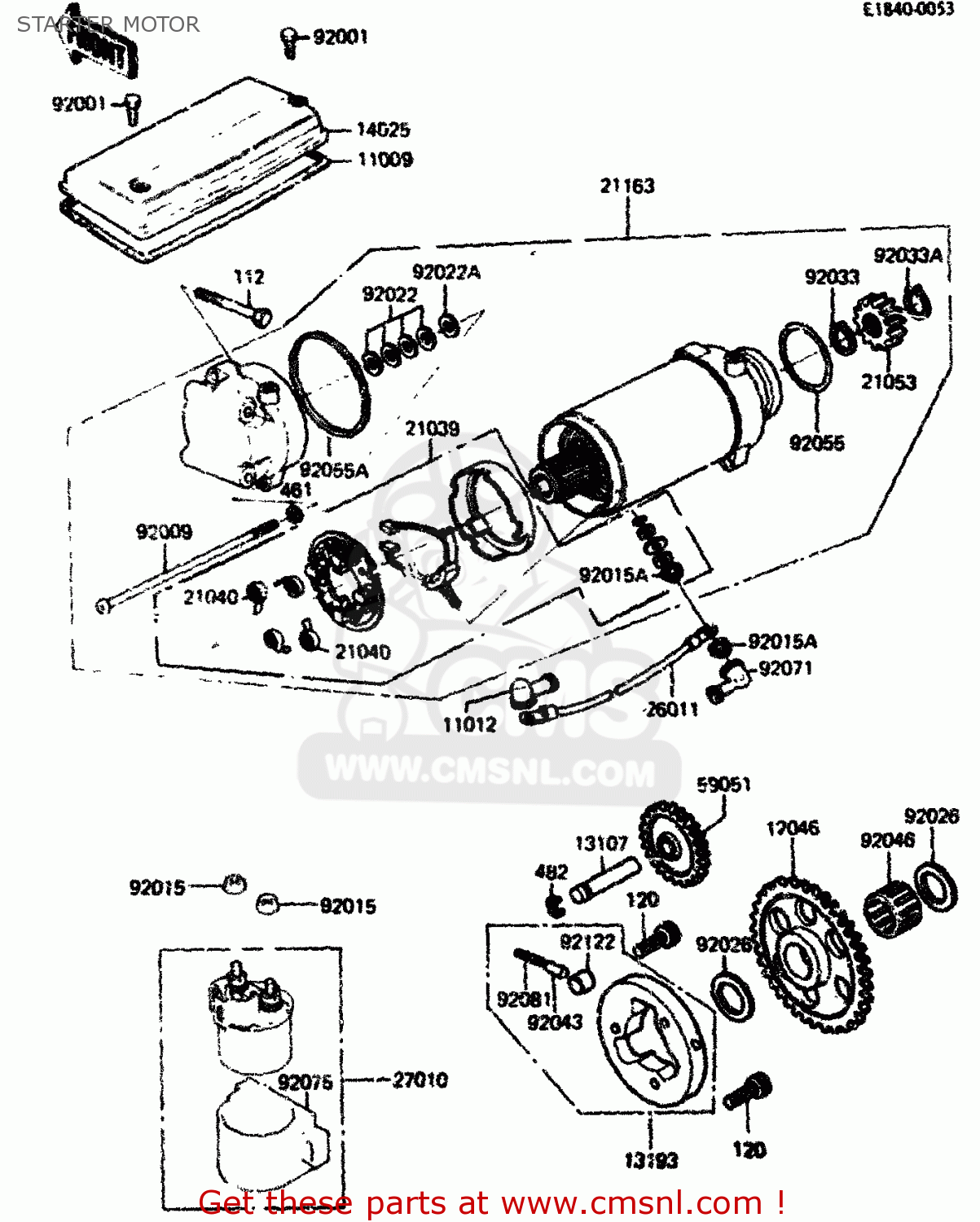

Starter motor diagram ZX750A2 1984 EUROPE UK FR GR IT NR SD
STARTER MOTOR ZX750A2 1984 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
11009
21166003
ref: 11009
GASKET,STARTER COVER (NAS)
€ 9.50
11012
110121354
ref: 11012
CAP,TERMINAL
€ 7.00
12046
120461032
ref: 12046
SPROCKET,STARTER,58T
€ 99.50
13107
21143003
ref: 13107
SHAFT,IDLE GEAR
€ 10.00
13193
131931012
ref: 13193
CLUTCH TARIER
€ 152.50
14025
140251441
ref: 14025
COVER,STARTER,F.BLACK
€ 23.50
21039
210391006
ref: 21039
BRUSH,CARBON
€ 89.50
21040
210401003
ref: 21040
SPRING-BRUSH
€ 6.00
21053
21053004
ref: 21053
PINION, STARTER
€ 69.00
21163
211631053
ref: 21163
STARTER-ELECTRIC
€ 633.50
26011
260111073
ref: 26011
WIRE-LEAD,STARTER MOT
€ 41.00
27010
270101098
ref: 27010
SWITCH,MAGNETIC
€ 115.50
59051
21167004
ref: 59051
GEAR-SPUR,IDLE,29T
€ 69.50
92001
920011525
ref: 92001
BOLT,6X10,BLACK
€ 2.00
92009
21099006
ref: 92009
SCREW,PAN HEAD, 6X130
€ 4.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151195
ref: 92015A
NUT,FLANGED,6MM
€ 1.50
92022
21025011
ref: 92022
WASHER, THRUST, 0.2T
€ 4.00
92022A
920221132
ref: 92022A
WASHER,9.1X18X0.8
€ 4.00
92026
920261025
ref: 92026
SPACER,25X36X3.2
€ 3.50
92033
92033034
ref: 92033
CIRCLIP
€ 7.00
92033A
92033037
ref: 92033A
RING-SNAP,13MM
€ 6.50
92043
92043087
ref: 92043
PIN
€ 8.00
92046
92046056
ref: 92046
BEARING-NEEDLE,K25301
€ 24.00
92055
21027008
ref: 92055
O RING, 40M/M
€ 8.50
92055A
920551086
ref: 92055A
O RING,64MM
€ 6.50
92071
21017017
ref: 92071
GROMMET-CORD
€ 6.50
92075
21064002
ref: 92075
DAMPER,MAGNETIC SWITC
€ 13.50
92081
92081110
ref: 92081
SPRING
€ 3.00
92122
92122004
ref: 92122
ROLLER,15X13
€ 7.00
112
112G0660
ref: 112
BOLT-UPSET
€ 3.00
120
120P0812
ref: 120
BOLT,SOCKET,8X12
€ 2.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
482
482K0200
ref: 482
CIRCLIP-TYPE-E,12MM
€ 0.50
