BRAKE PEDAL/TORQUE ROD

ZX750A2 1984 EUROPE UK FR GR IT NR SD

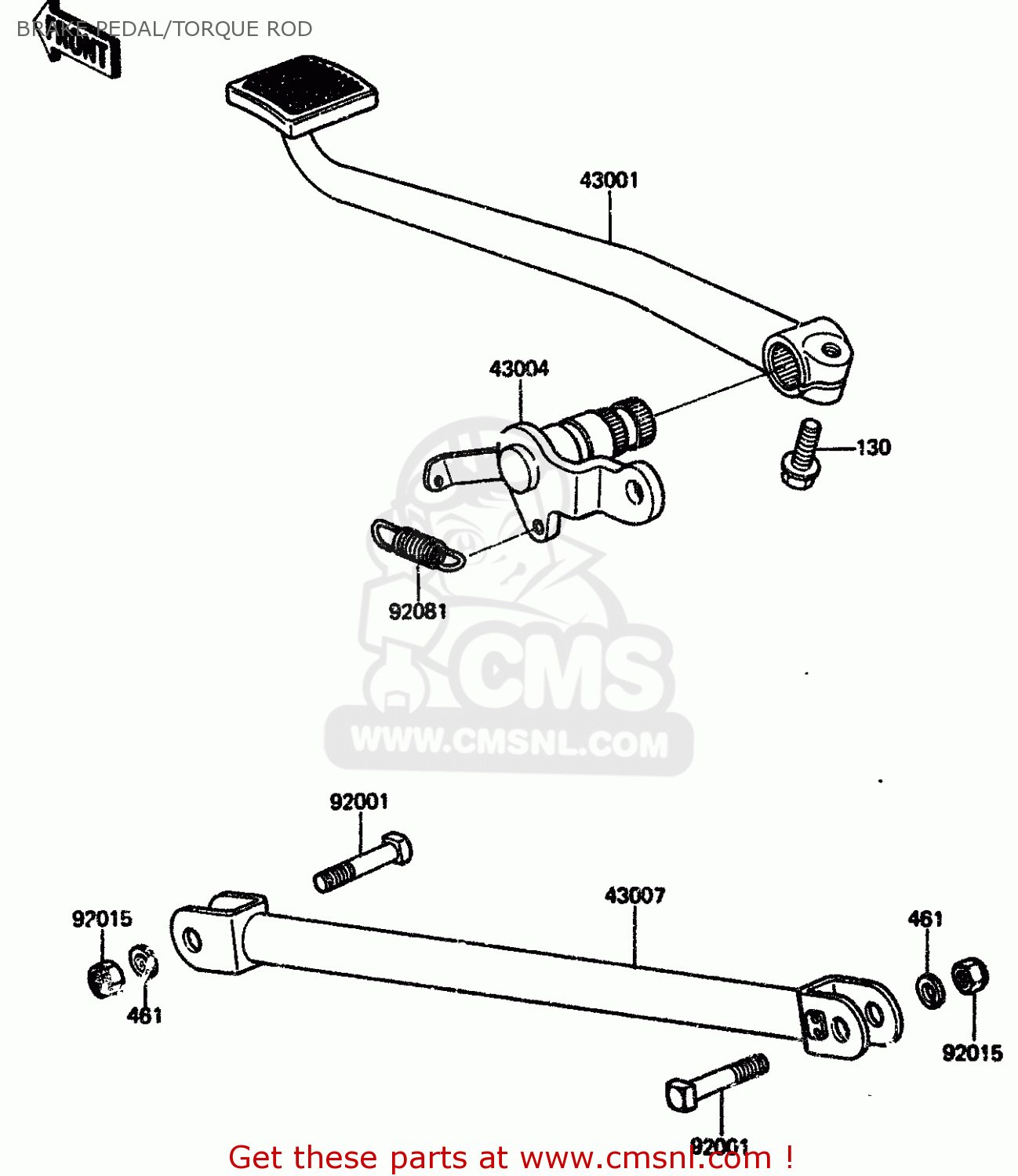

Brake pedal/torque rod diagram ZX750A2 1984 EUROPE UK FR GR IT NR SD

BRAKE PEDAL/TORQUE ROD ZX750A2 1984 EUROPE UK FR GR IT NR SD

BRAKE PEDAL/TORQUE ROD ZX750A2 1984 EUROPE UK FR GR IT NR SD

prices are in EUR

ref

part #

description

quantity

43001

430011151
ref: 43001

LEVER-BRAKE,PEDAL

€ 66.00

43004

430041051
ref: 43004

SHAFT-BRAKE

€ 31.50

43007

430071046
ref: 43007

ROD-TORQUE

€ 22.50

92001

920011646
ref: 92001

BOLT,10X37

€ 4.50

92015

920151189
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.50

92081

920811313
ref: 92081

SPRING,BRAKE PEDAL

€ 6.00

130

130J0825
ref: 130

BOLT-FLANGED,8X25,BLA

€ 2.00

461

461K1000
ref: 461

461K1000
