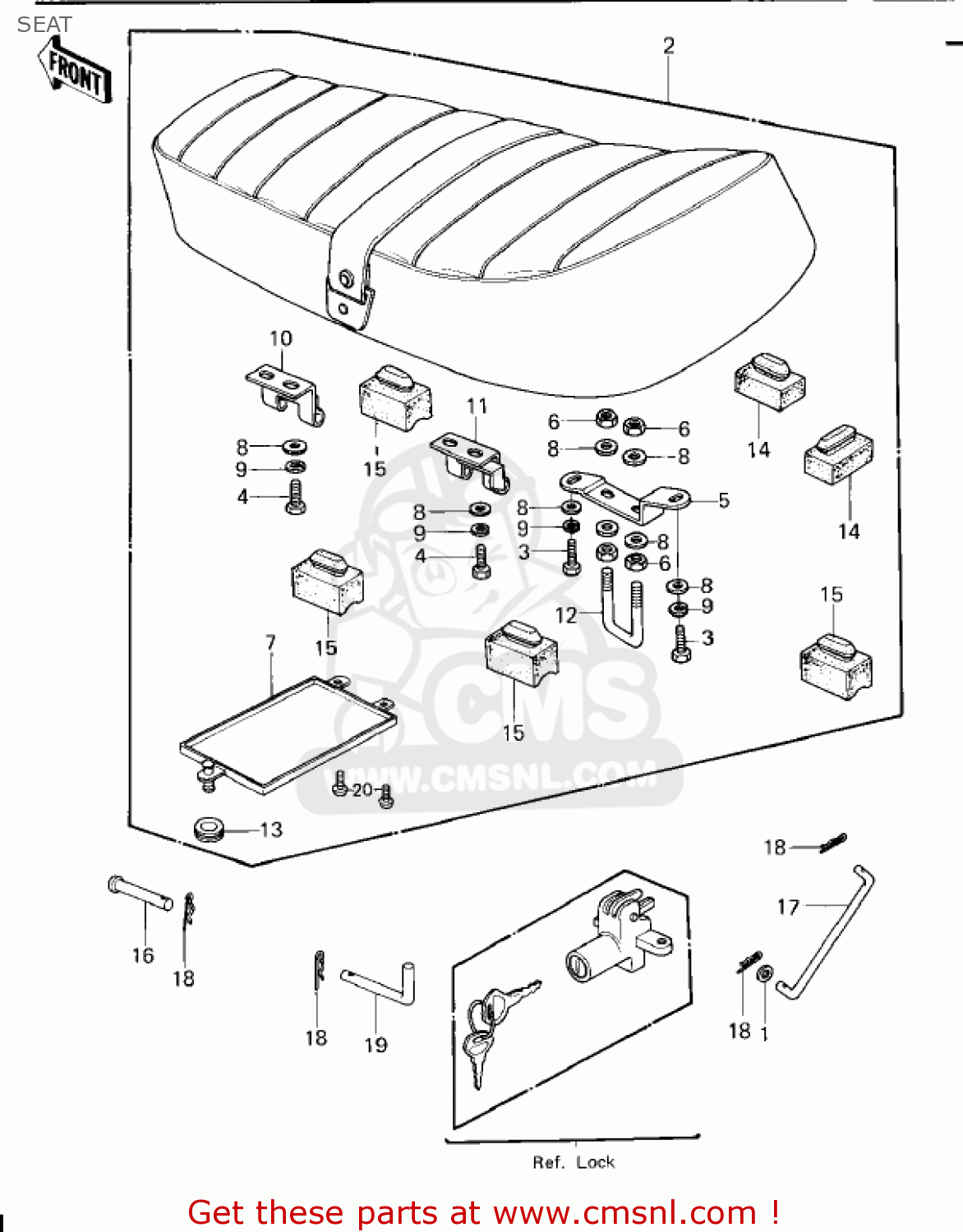

SEAT

ref

part #

description

quantity

1

410B0600
ref: 1

WASHER-PLAIN-SMALL,6M

€ 0.50

2

530011135
ref: 2

SEAT ASSY

€ 341.00

3

112B0614
ref: 3

BOLT-UPSET 6X14

€ 2.50

4

112G0616
ref: 4

BOLT UPSET,6X16

€ 1.00

5

110341093
ref: 5

BRACKET,SEAT

€ 4.00

6

311B0600
ref: 6

NUT,6MM

€ 0.50

7

32099011
ref: 7

CASE,MANUAL

€ 11.50

8

411B0600
ref: 8

WASHER-PLAIN,6MM

€ 0.50

9

461F0600
ref: 9

WASHER-SPRING,6MM

€ 0.50

10

53009016
ref: 10

HINGE

€ 8.50

11

530091004
ref: 11

HINGE,SEAT,REAR

€ 8.00

12

53056002
ref: 12

HOOK,SEAT

€ 11.50

13

92071056
ref: 13

GROMMET

€ 2.50

14

92075099
ref: 14

DAMPER RUBBER

€ 3.50

15

92075156
ref: 15

DAMPER,SEAT

€ 6.50

16

53011002
ref: 16

PIN,6X48

€ 3.50

17

53054006
ref: 17

STOPPER, SEAT

€ 4.00

18

554A0600
ref: 18

PIN-SNAP,SIDE STAND

€ 0.50

19

920431021
ref: 19

PIN,SEAT PIVOT

€ 3.00

20

220B0510
ref: 20

SCREW-PAN-CROS,5X10

€ 0.50
