GEAR CHANGE MECHANISM

KZ650E1 LTD 1980 USA / MPH

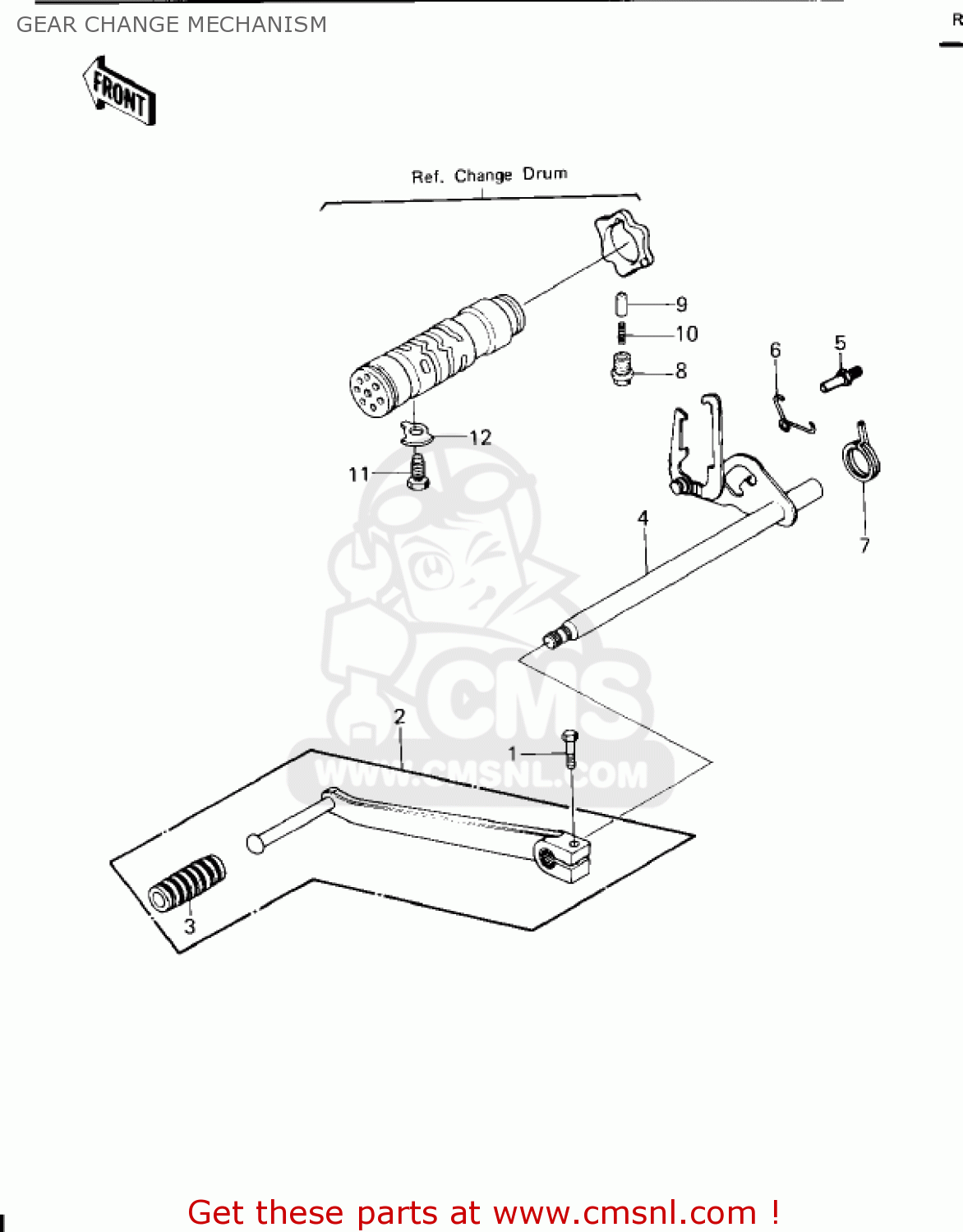

Gear change mechanism diagram KZ650E1 LTD 1980 USA / MPH

prices are in EUR

ref

part #

description

quantity

112G0620
ref: 1

BOLT 6X20

€ 1.00

13242022
ref: 2

LEVER-ASSY-CHANGE,PED

€ 44.50

921601036
ref: 3

DAMPER,CHANGE PEDAL

€ 3.50

13161042
ref: 4

LEVER-COMP-CHANGE SHA

€ 102.50

920011401
ref: 5

BOLT,RETURN SPRING

€ 3.00

92083018
ref: 6

SPRING-KICK PAWL

€ 6.00

92083028
ref: 7

SPRING,CHG PEDL RTRN

€ 9.50

920011037
ref: 8

BOLT,NEUTAL POSITION

€ 9.50

92043076
ref: 9

PIN-NEUTRAL PISTON

€ 8.00

92081112
ref: 10

SPRING

€ 4.00

92001174
ref: 11

BOLT, HEX HEAD, 10X26

€ 4.50

92024074
ref: 12

WASHER,LOCK,10MM

€ 2.50

all assemblies
