CYLINDER/PISTONS

KZ650E1 LTD 1980 USA / MPH

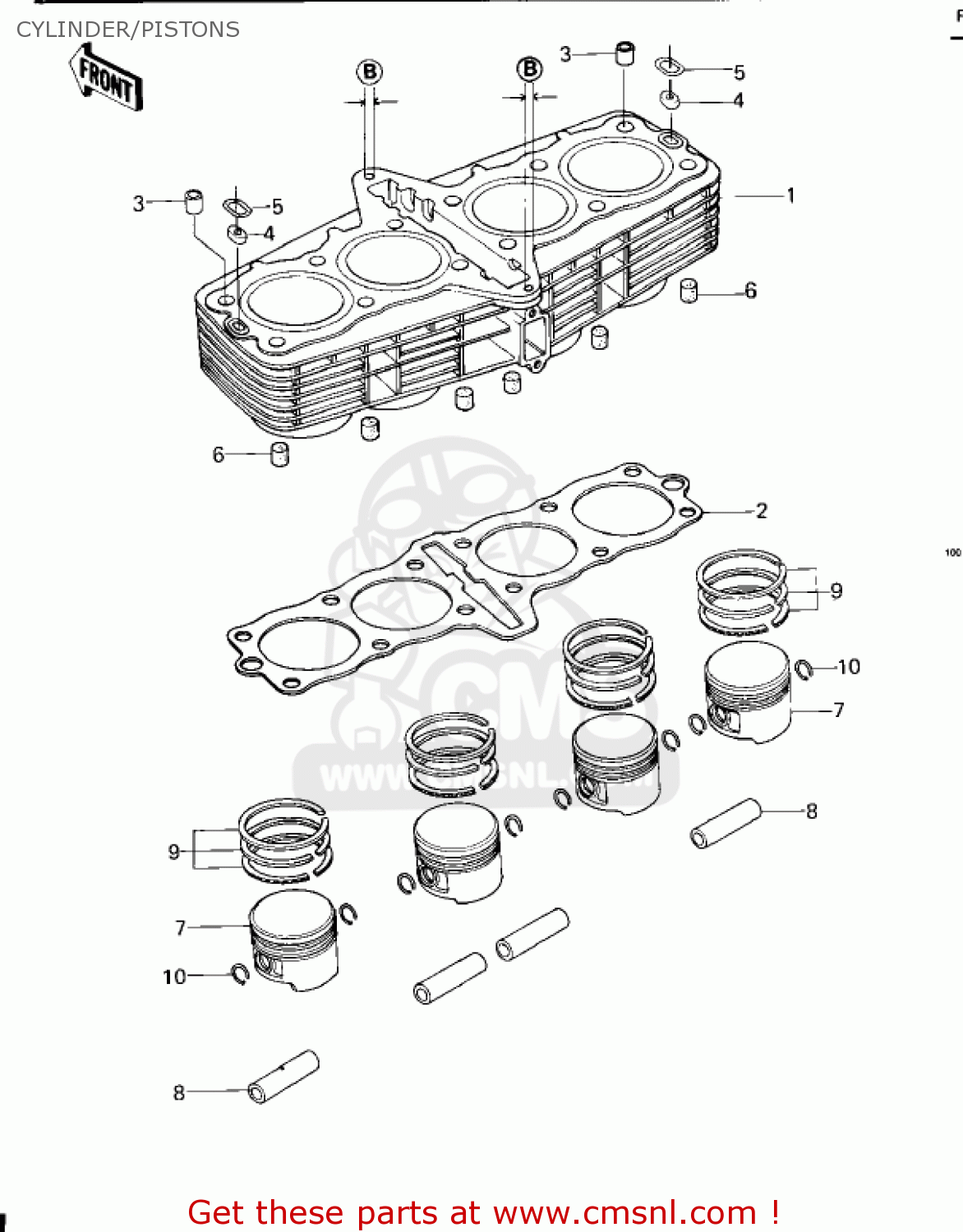

Cylinder/pistons diagram KZ650E1 LTD 1980 USA / MPH

prices are in EUR

ref

part #

description

quantity

110051039
ref: 1
E/NO 026001 ~ 029655

CYLINDER

€ 943.50

110051077
ref: 1
E/NO 029656 ~ 032216

CYLINDER

€ 702.00

110601362
ref: 2

GASKET (NAS)

€ 16.00

920431266
ref: 3

PIN,11X14X12.3

€ 1.00

920431210
ref: 4

PIN,OIL LINE

€ 4.50

920551147
ref: 5

RING-O,CYLINDER OIL L

€ 6.00

920661016
ref: 6

PLUG,DAMPER,13.5X8

€ 3.00

130011002
ref: 7

PISTON-ENGINE,STD

€ 45.00

13029077
ref: 7

PISTON-ENGINE-L,O/S 0

€ 28.50

13027069
ref: 7

PISTON-ENGINE-LL,O/S

€ 42.50

13002032
ref: 8

PIN-PISTON

€ 14.50

13008059
ref: 9

RING-SET-PISTON,STD

€ 103.00

13025061
ref: 9

RING-SET-PISTON L,O/S

€ 76.00

13024060
ref: 9

RING-SET-PISTON LL,O/

€ 50.50

92036005
ref: 10

CIRCLIP-PISTON PIN

€ 2.50
