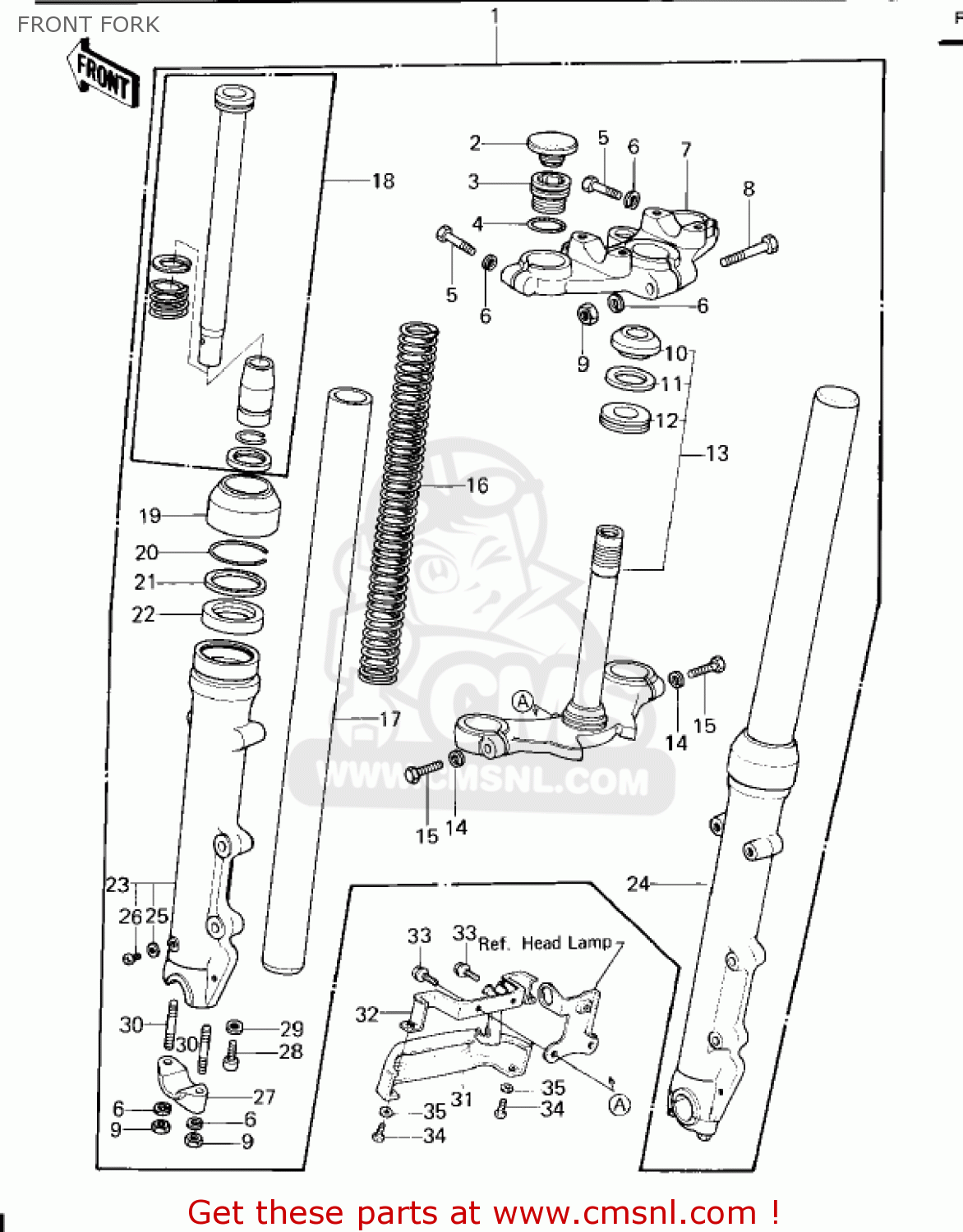

FRONT FORK

ref

part #

description

quantity

1

440011104
ref: 1

FRONT FORK

€ 746.50

2

110121017
ref: 2

CAP,RUBBER

€ 7.00

3

440291046
ref: 3

SEAT-FORK SPRING

€ 15.00

4

920551012
ref: 4

RING-O,FORK TOP

€ 5.00

5

44041045
ref: 5

BOLT-HEX HEAD,8MM

€ 15.00

6

461F0800
ref: 6

WASHER-SPRING,8MM

€ 0.50

7

44039076
ref: 7

HEAD, STEERING STEM

€ 166.00

8

44041042
ref: 8

BOLT-STEERING STEM HD

€ 3.00

9

920151124
ref: 9

NUT,LOCK,8MM

€ 3.50

10

92047012
ref: 10

CONE-STRNG STM BRNG

€ 14.50

11

92022231
ref: 11

WASHER,PLAIN

€ 3.00

12

92056003
ref: 12

OIL SEAL,STEERING STM

€ 6.00

13

44037107
ref: 13

STEM, STEERING

€ 359.00

14

461F1200
ref: 14

WASHER-SPRING,12MM

€ 0.50

15

92003064
ref: 15

BOLT-HEX HEAD,12X36

€ 15.00

16

440261012
ref: 16

SPRING,FORK

€ 55.50

17

440131011
ref: 17

TUBE,FORK INNER

€ 157.50

18

440221009
ref: 18

CYLINDER,FORK

€ 60.00

19

44010032
ref: 19

SEAL,FORK

€ 17.00

20

44044012
ref: 20

RING-SNAP

€ 17.50

21

44043044
ref: 21

WASHER,OIL SEAL FIT

€ 8.00

22

920491216
ref: 22

SEAL-OIL,FORK OUTER P

€ 16.00

23

440051036
ref: 23

FORK OUTER TUBE,LH

€ 163.50

24

440061036
ref: 24

FORK OUTER TUBE,RH

€ 158.50

25

44045002
ref: 25

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

26

220B0408
ref: 26

SCREW-PAN-CROS

€ 0.50

27

44063014
ref: 27

HOLDER,FRONT AXLE

€ 23.50

28

44041040
ref: 28

BOLT-FORK CYLINDER

€ 4.50

29

44045057
ref: 29

GASKET (NAS)

€ 3.00

30

920041009
ref: 30

STUD, 8X35

€ 4.00

31

440331042
ref: 31

COVER-FORK

€ 19.50

32

110341602
ref: 32

BRACKET,FORK COVER

€ 15.00

33

131B0612
ref: 33

BOLT,FLANGED,6X12

€ 0.50

34

220B0410
ref: 34

SCREW-PAN-CROS

€ 2.00

35

410B0400
ref: 35

WASHER-PLAIN-SMALL,4M

€ 0.50
