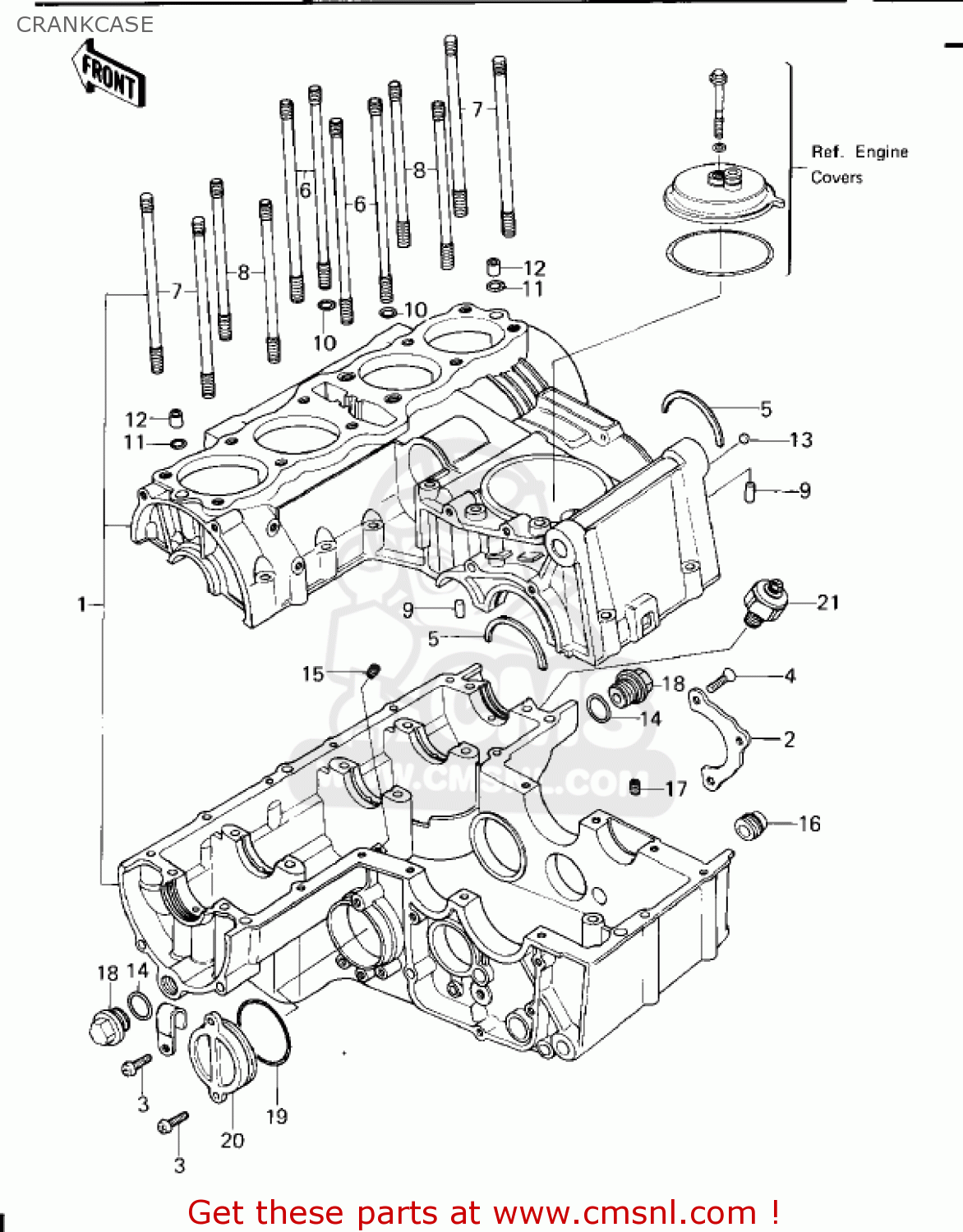

CRANKCASE

ref

part #

description

quantity

1

140015046
ref: 1

CRANKCASE SET

€ 1,151.00

2

140141007
ref: 2

PLATE-POSITION,SECOND

€ 7.00

3

220B0620
ref: 3

SCREW-PAN HEAD,6X20

€ 2.50

4

221B0620
ref: 4

SCREW-CNTSNK HD,6X20

€ 0.50

5

14013004
ref: 5

RING-BEARING SETTING

€ 7.00

6

92004062
ref: 6
ASTERISK (*) MARKED

STUD, 10X153

€ 13.50

7

920041004
ref: 7
ASTERISK (*) MARKED

STUD, 10X133

€ 11.50

8

920041007
ref: 8
ASTERISK (*) MARKED

STUD, 10X116

€ 6.00

9

92042016
ref: 9
ASTERISK (*) MARKED

PIN,DOWEL,6X16

€ 3.50

10

92055099
ref: 10
ASTERISK (*) MARKED

O RING, 8.8MM

€ 3.00

11

670D2010
ref: 11

O RING,10MM

€ 1.00

12

92062016
ref: 12

NOZZLE

€ 3.50

13

92066057
ref: 13
ASTERISK (*) MARKED

PLUG,RUBBER BALL,6.7

€ 3.00

14

92055097
ref: 14
ASTERISK (*) MARKED

'O' RING,PLUG

€ 5.50

15

92062011
ref: 15
ASTERISK (*) MARKED

NOZZLE,OIL

€ 5.50

16

92062014
ref: 16
ASTERISK (*) MARKED

NOZZLE

€ 6.00

17

92062015
ref: 17
ASTERISK (*) MARKED

NOZZLE

€ 4.00

18

92066066
ref: 18
ASTERISK (*) MARKED

PLUG

€ 7.00

19

670B3046
ref: 19

O RING,46MM

€ 3.50

20

920661019
ref: 20

PLUG,SECONDARY SHAFT,

€ 12.50

21

16144006
ref: 21

SWITCH,OIL PRESSURE

€ 28.00
