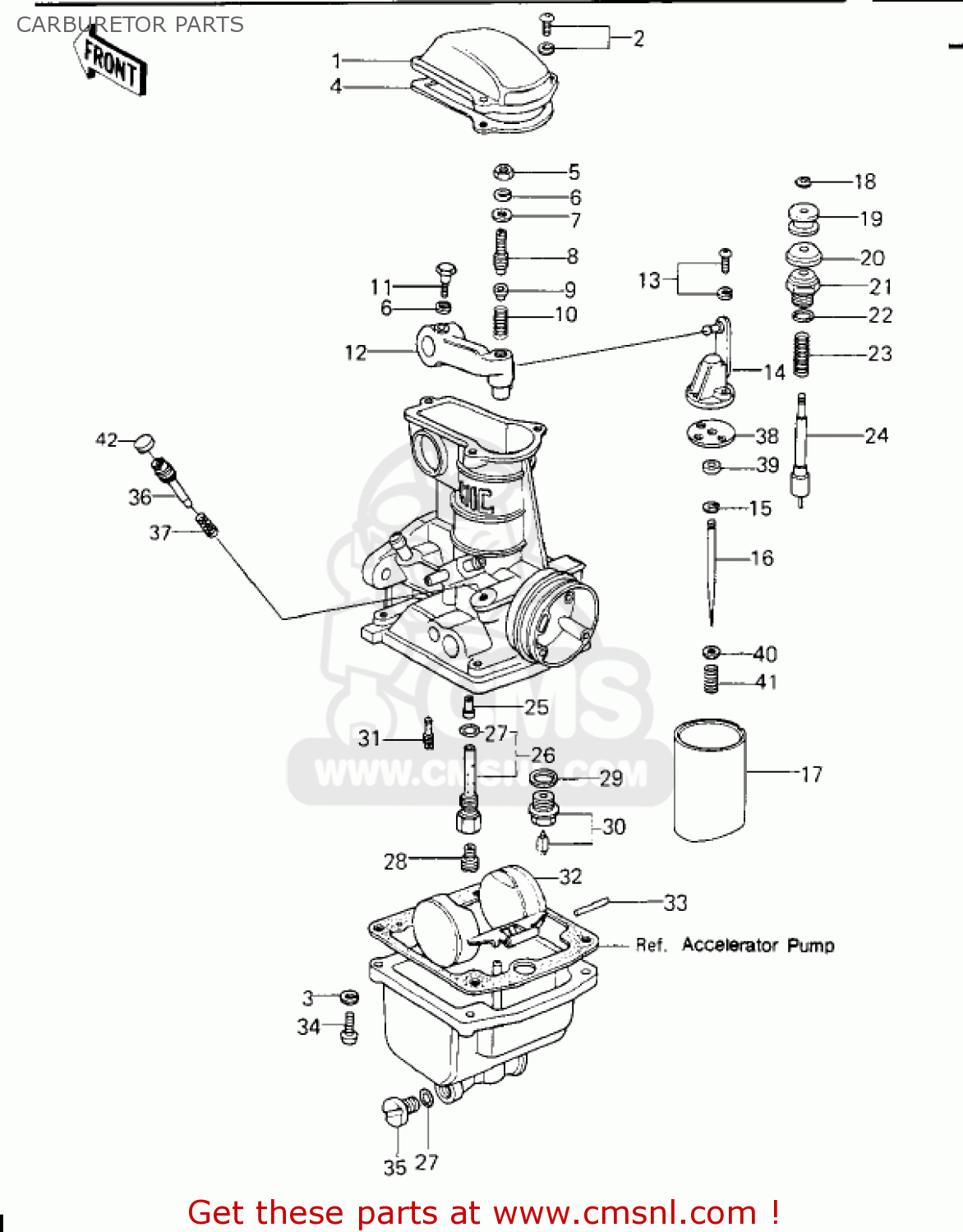

CARBURETOR PARTS

ref

part #

description

quantity

1

16005027
ref: 1

TOP,MIXING CHAMBER

€ 15.50

2

223B0414
ref: 2

SCREW PAN-WS-CROS

€ 2.50

3

461F0400
ref: 3

WASHER-SPRING,4MM

€ 0.50

4

16019031
ref: 4

GASKET,CHAMBER,TOP (NAS)

€ 24.50

5

16003013
ref: 5

NUT,5M/M

€ 6.00

6

461F0500
ref: 6

WASHER-SPRING,5MM

€ 0.50

7

16039016
ref: 7

WASHER,PLAIN

€ 3.50

8

16046012
ref: 8

SCREW, SLOTTED

€ 13.50

9

16057002
ref: 9

SEAT-SPRING

€ 6.00

10

16040026
ref: 10

SPRING

€ 3.50

11

16067006
ref: 11

BOLT-HEX HEAD,5X14

€ 10.50

12

390751001
ref: 12

LEVER,THROTTLE

€ 25.00

13

16033031
ref: 13

SCREW, PAN HEAD, 3X14

€ 3.50

14

391841001
ref: 14

THROTTLE VALVE BRACKET

€ 29.00

15

16008010
ref: 15

CLAMP,E-TYPE

€ 5.00

16

160091048
ref: 16

JET,NEEDLE,5CL30

€ 22.00

17

160251025
ref: 17

THROTTLE VALVE,CA1.75

€ 57.50

18

16076003
ref: 18

CLAMP

€ 4.50

19

16073014
ref: 19

COLLAR,STARTER PLUNGE

€ 5.50

20

16039015
ref: 20

CAP,STARTER PLUNGER

€ 4.50

21

16012015
ref: 21

CAP-STARTER PLUNGER

€ 8.50

22

670B1509
ref: 22

O RING,9MM

€ 1.00

23

16013008
ref: 23

SPRING-STARTER PLUNG

€ 4.50

24

16016021
ref: 24

PLUNGER,STARTER

€ 26.00

25

160171034
ref: 25

JET-NEEDLE,AO-5

€ 38.00

26

491221006
ref: 26

BLEED PIPE

€ 17.00

27

16038016
ref: 27

GASKET,O-RING

€ 2.50

28

920631035
ref: 28

MAIN JET,#97.5R

€ 10.00

28

920631033
ref: 28

JET-MAIN,#A100R

€ 17.00

28

920631042
ref: 28

JET-MAIN,#A105R

€ 10.50

28

92063068
ref: 28

MAIN JET,#92.5R

€ 15.50

28

920631031
ref: 28

MAIN JET,#95R

€ 10.00

29

16029004
ref: 29

WASHER-FLOAT VLV SEAT

€ 2.50

30

160301001
ref: 30

VALVE-FLOAT,2.0

€ 40.50

31

920641018
ref: 31

JET-PILOT,#A15

€ 13.00

32

16031031
ref: 32

FLOAT

€ 114.50

33

16032003
ref: 33

FLOAT PIN

€ 4.00

34

220B0416
ref: 34

SCREW-PAN-CROS

€ 2.00

35

16049007
ref: 35

SCREW, GUIDE

€ 9.50

36

160141020
ref: 36

PILOT ADJUSTING SCREW

€ 9.00

37

16022007
ref: 37

SPRING-THR STOP SCREW

€ 5.50

38

131691107
ref: 38

NEEDLE JET PLATE

€ 5.50

39

920271103
ref: 39

RING,JET NEEDLE

€ 4.50

40

920221024
ref: 40

WASHER,THROTTLE VALVE

€ 4.50

41

920811072
ref: 41

NEEDLE JET SPRING

€ 2.50

42

920661051
ref: 42

PLUG,PILOT AIR SCREW,

€ 3.00
