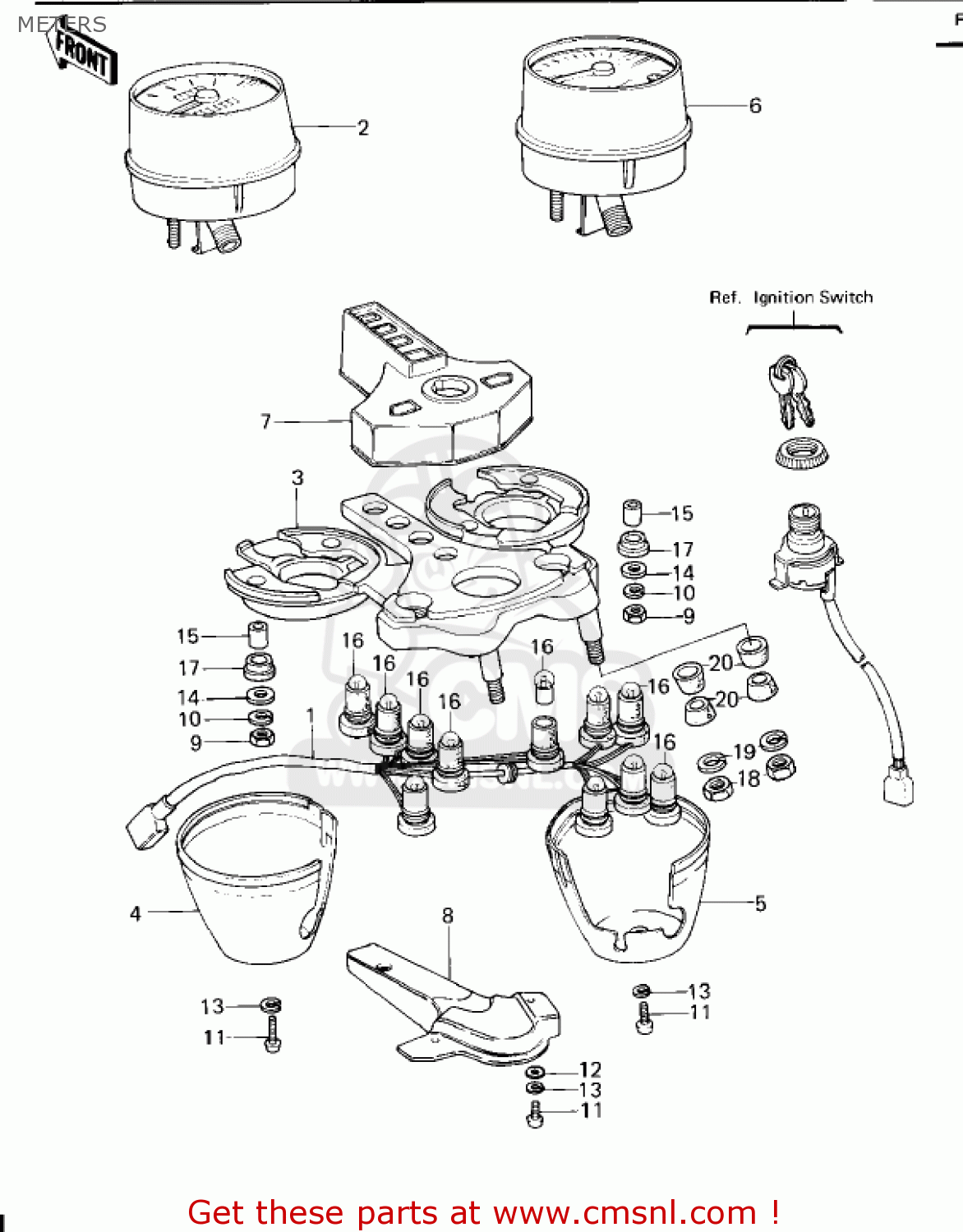

METERS

ref

part #

description

quantity

1

230081014
ref: 1

SOCKET,METER

€ 107.50

2

250051068
ref: 2

SPEEDOMETER ASSEMBLY,MPH

€ 382.50

3

250081005
ref: 3

BRACKET-METER

€ 156.00

4

25012023
ref: 4

COVER,SPEEDOMETER

€ 205.00

5

25012024
ref: 5

COVER,TACHOMETER

€ 205.00

6

250151013
ref: 6

TACHOMETER

€ 270.50

7

25023015
ref: 7

COVER-METER CASE

€ 98.00

8

25024006
ref: 8

COVER,METER BRACKET

€ 14.50

9

312B0500
ref: 9

NUT-HEX,5MM

€ 0.50

10

461F0500
ref: 10

WASHER-SPRING,5MM

€ 0.50

11

220B0308
ref: 11

SCREW-PAN-CROS

€ 0.50

12

410B0300
ref: 12

WASHER-PLAIN-SMALL,3M

€ 0.50

13

461F0300
ref: 13

WASHER-SPRING,3MM

€ 0.50

14

92022241
ref: 14

WASHER,5.2X15X1.6

€ 2.50

15

92027211
ref: 15

COLLAR,5.6X8X13.8

€ 8.50

16

92069018
ref: 16

BULB 12V 3W

€ 4.00

17

92075172
ref: 17

DAMPER

€ 12.50

18

311B0800
ref: 18

NUT,8MM

€ 0.50

19

461F0800
ref: 19

WASHER-SPRING,8MM

€ 0.50

20

92075080
ref: 20

DAMPER

€ 5.50

all assemblies
