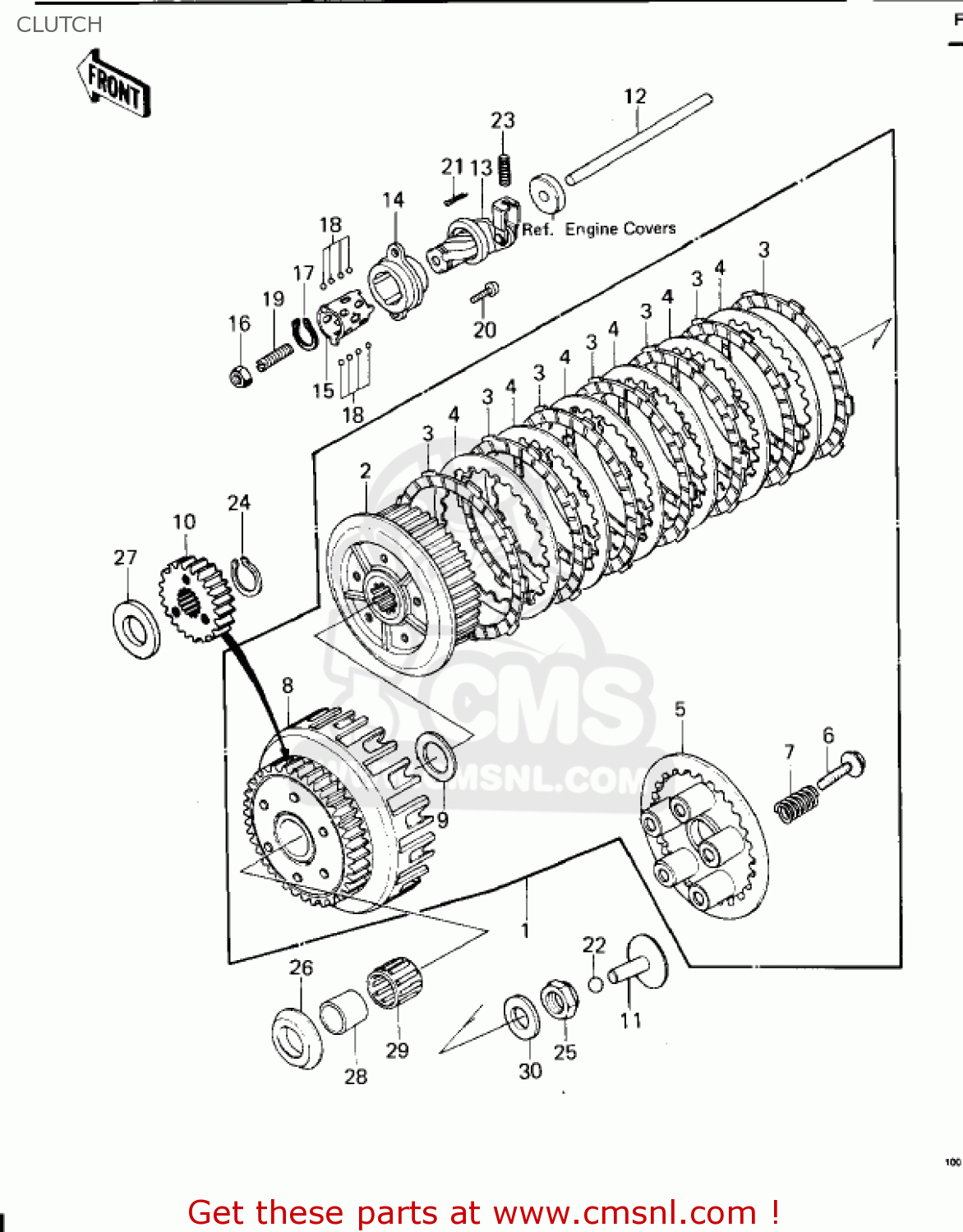

CLUTCH

ref

part #

description

quantity

1

130611008
ref: 1
E/NO 026001 ~ 029668

BOSS,KICK PEDAL

€ 29.50

1

130811043
ref: 1
E/NO 029669 ~ 032216

CLUTCH ASSY

€ 401.50

2

13087043
ref: 2

HUB-CLUTCH

€ 131.00

3

13088030
ref: 3

PLATE-FRICTION (NAS)

€ 14.50

4

13089022
ref: 4

PLATE-CLUTCH (NAS)

€ 8.50

5

13187006
ref: 5

PLATE-CLUTCH OPERATIN (NAS)

€ 44.50

6

920011066
ref: 6

BOLT, CLUTCH SPR FITT

€ 4.00

7

920811033
ref: 7

SPRING,CLUTCH

€ 6.50

8

130951022
ref: 8
E/NO 026001 ~ 029668

HOUSING,CLUTCH

€ 423.00

8

130951022
ref: 8
E/NO 029669 ~ 032216

HOUSING,CLUTCH

€ 423.00

9

92026022
ref: 9

SPACER,25.5X47X2.5

€ 6.50

10

13121037
ref: 10

GEAR, 29T

€ 101.50

11

13116022
ref: 11

ROD-PUSH,CLUTCH SPRIN

€ 15.50

12

13116035
ref: 12
E/NO 026001 ~ 029745

ROD-PUSH,CLUTCH

€ 27.50

12

131161007
ref: 12
E/NO 029746 ~ 032216

ROD-PUSH,CLUTCH,8X270

€ 27.00

13

13102027
ref: 13

INNER, CLUTCH RELEASE

€ 37.50

14

13118011
ref: 14

OUTER,CLUTCH REREASEL

€ 14.00

15

13197004
ref: 15

RETAINER

€ 1.00

16

318B0800
ref: 16

NUT,8MM

€ 0.50

17

480J1500
ref: 17

CIRCLIP-TYPE-C,15MM

€ 1.00

18

600A0400
ref: 18

BALL-STEEL,1/8

€ 2.00

19

92014014
ref: 19

SCREW-SLOTTED,8X25

€ 4.00

20

220B0616
ref: 20

SCREW-PAN HEAD,6X16

€ 2.50

21

550D1615
ref: 21

PIN-COTTER,1.6X15

€ 1.50

22

600A1200
ref: 22

BALL-STEEL,3/8

€ 0.50

23

92081069
ref: 23

SPRING-CLUTCH RELEASE

€ 4.50

24

480J2200
ref: 24

CIRCLIP-TYPE-C,22MM

€ 3.00

25

920151555
ref: 25

NUT,20MM

€ 9.00

26

92026116
ref: 26

SPACER,THRUST,T=5.5MM

€ 12.00

27

92027263
ref: 27

COLLAR,23X46X4.5

€ 4.00

28

92028178
ref: 28

BUSHING,CLUTCH

€ 17.00

29

92046028
ref: 29

BEARING-NEEDLE,KTV323

€ 20.50

30

92125002
ref: 30

WASHER,SPRING,20MM

€ 8.50

all assemblies
