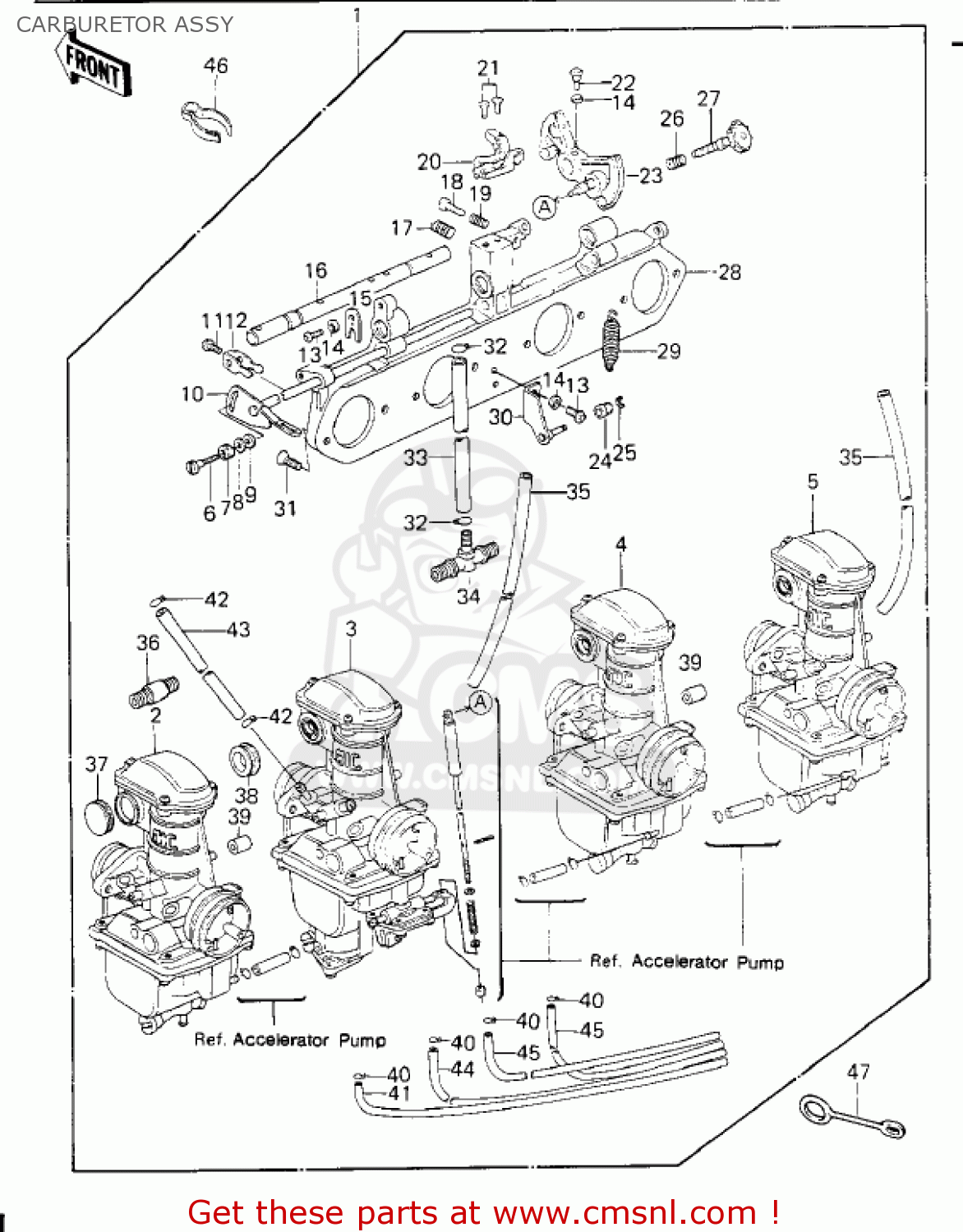

CARBURETOR ASSY

ref

part #

description

quantity

1

160011208
ref: 1

CARBURETOR ASSEMBLY

€ 758.00

2

160011220
ref: 2

CARBURETOR,OUTSIDE,LH

€ 228.50

3

160011221
ref: 3

CARBURETOR,INSIDE,LH

€ 316.00

4

160011222
ref: 4

CARBURETOR,INSIDE,RH

€ 228.50

5

160011223
ref: 5

CARBURETOR,OUTSIDE,RH

€ 228.50

6

16046005
ref: 6

SCREW

€ 4.50

7

16040009
ref: 7

SPRING,F

€ 6.50

8

410B0500
ref: 8

WASHER-PLAIN-SMALL,5M

€ 0.50

9

16039019
ref: 9

WASHER-PLAIN

€ 3.00

10

16041021
ref: 10

SHAFT,STARTER PLUNGER

€ 37.50

11

16046007
ref: 11

SCREW,PAN HEAD,5X7

€ 6.50

12

131681026
ref: 12

LEVER,STARTER PLUNGER

€ 13.50

13

220B0514
ref: 13

ACREW-PAN HEAD,5X14

€ 2.50

14

461F0500
ref: 14

WASHER-SPRING,5MM

€ 0.50

15

16055012
ref: 15

PLATE,SHAFT STOPPER

€ 7.00

16

16041017
ref: 16

SHAFT,CARB CONNECTION

€ 47.50

17

16040022
ref: 17

SPRING,CABLE PLY BKT

€ 6.00

18

16021032
ref: 18

SCREW

€ 4.00

19

16022010
ref: 19

SPRING,THROTTLE ADJST

€ 4.50

20

16077017
ref: 20

BRACKET,THROTTLE CABL

€ 41.00

21

221B0510A
ref: 21

SCREW-CNTSNK HD,5X10

€ 2.50

22

16067006
ref: 22

BOLT-HEX HEAD,5X14

€ 10.50

23

132361014
ref: 23

THROTTLE CABLE PULLEY

€ 15.50

24

16073016
ref: 24

RING

€ 8.00

25

482K3000
ref: 25

CIRCLIP-TYPE-E,3MM

€ 2.00

26

16022017
ref: 26

SPRING, THROTTLE STOP

€ 4.50

27

160211010
ref: 27

SCREW-THROTTLE STOP

€ 16.00

28

16065049
ref: 28

HOLDER, CARBURETOR

€ 78.50

29

920811028
ref: 29

SPRING,THORTTLE PULLY

€ 41.00

30

16077016
ref: 30

BRACKET,THROTTLE CABL

€ 10.00

31

16033029
ref: 31

SCREW,PAN HEAD,6X14

€ 3.00

32

920371184
ref: 32

CLAMP,HOSE

€ 1.00

33

920591123
ref: 33

TUBE,7.5X12.5X225

€ 17.00

34

920051010
ref: 34

NIPPLE,FUEL HOSE

€ 19.50

35

920591045
ref: 35

HOSE,AIR VENT,5X8X250

€ 15.50

36

920051009
ref: 36

FITTING,FUEL TUBE

€ 36.50

37

16039042
ref: 37

CAP,RUBBER

€ 9.00

38

92071104
ref: 38

GROMMET,CARBURETOR

€ 16.00

39

92059141
ref: 39

HOSE, 6X11.5X16

€ 9.00

40

92037173
ref: 40

CLAMP,TUBE

€ 4.50

41

92059147
ref: 41

HOSE,FUEL OVERFLOW

€ 17.50

42

92037072
ref: 42

CLAMP,TUBE

€ 4.00

43

920591019
ref: 43

TUBE,5.3X10.5X140

€ 16.50

44

92059134
ref: 44

HOSE,OVERFLOW

€ 17.50

45

92059134
ref: 45

HOSE,OVERFLOW

€ 17.50

46

920371092
ref: 46

CLAMP,AIR VENT HOSE

€ 6.00

47

92037134
ref: 47

CLAMP,OVER FLOW PIPE

€ 7.50
