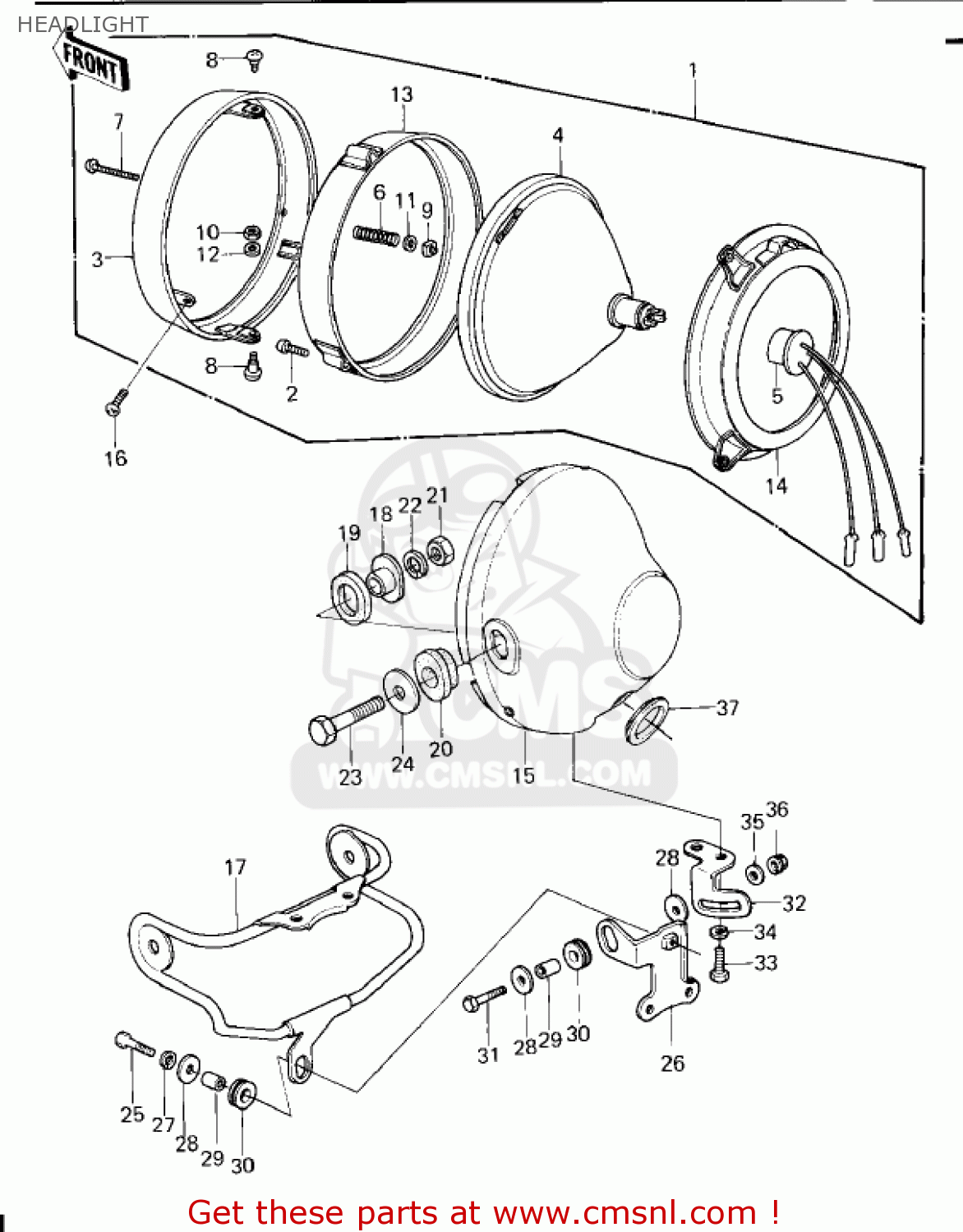

HEADLIGHT

ref

part #

description

quantity

1

23003017
ref: 1

LAMP UNIT, HEAD

€ 429.00

2

220B0312
ref: 2

SCREW-PAN CROS,3X12

€ 2.00

3

23006038
ref: 3

RIM-LAMP

€ 56.50

4

23007041
ref: 4

LENS-COMP,001-1014 MA

€ 102.00

5

23008037
ref: 5

SOCKET-ASSY,HEAD LAMP

€ 12.50

6

23014005
ref: 6

SPRING-FOCUS ADJUST

€ 2.50

7

23019021
ref: 7

SCREW-FORCUS ADJUST

€ 3.00

8

23019023
ref: 8

SCREW-PAN HEAD,5X12

€ 3.50

9

23020018
ref: 9

NUT,4MM,FOCUS ADJUST

€ 3.00

10

23020023
ref: 10

NUT,5MM

€ 3.00

11

23021004
ref: 11

WASHER,4.1X8X0.8

€ 2.00

12

23021012
ref: 12

WASHER

€ 3.00

13

23072001
ref: 13

RETAINER,HEAD LAMP

€ 26.00

14

23074001
ref: 14

HOLDER,HEAD LAMP

€ 28.00

15

230051016
ref: 15

BODY-COMP-HEAD LAMP,C

€ 136.50

16

23019022
ref: 16

SCREW-SPECIAL,5X14

€ 1.50

17

110341110
ref: 17

METER BRACKET

€ 65.00

18

23052011
ref: 18

COLLAR,HEAD LAMP

€ 8.50

19

23066021
ref: 19

DAMPER

€ 6.00

20

23066022
ref: 20

DAMPER

€ 6.00

21

315B1000
ref: 21

NUT,10MM

€ 0.50

22

461F1000
ref: 22

WASHER-SPRING,10MM

€ 0.50

23

92007024
ref: 23

BOLT,10MM

€ 4.50

24

920221054
ref: 24

HEADLAMP WASHER

€ 6.50

25

112G0625
ref: 25

BOLT-UPSET,6X25

€ 4.00

26

110341366
ref: 26

BRACKET,METER

€ 13.50

27

461F0600
ref: 27

WASHER-SPRING,6MM

€ 0.50

28

92022125
ref: 28

WASHER,6.5X20X1.6

€ 1.00

29

92027241
ref: 29

COLLAR

€ 4.50

30

92075209
ref: 30

DAMPER RUBBER

€ 3.00

31

112G0630
ref: 31

BOLT-UPSET

€ 1.00

32

110341676
ref: 32

BRACKET,HEAD LAMP

€ 8.00

33

115G0816
ref: 33

BOLT-HEX,HEAD 8X16

€ 0.50

34

461F0800
ref: 34

WASHER-SPRING,8MM

€ 0.50

35

411B0600
ref: 35

WASHER-PLAIN,6MM

€ 0.50

36

92017014
ref: 36

NUT,LOCK,6MM

€ 4.00

37

920711008
ref: 37

GROMMET

€ 4.00
