IGNITION SWITCH/LOCKS
KZ650E1 LTD 1980 USA / MPH

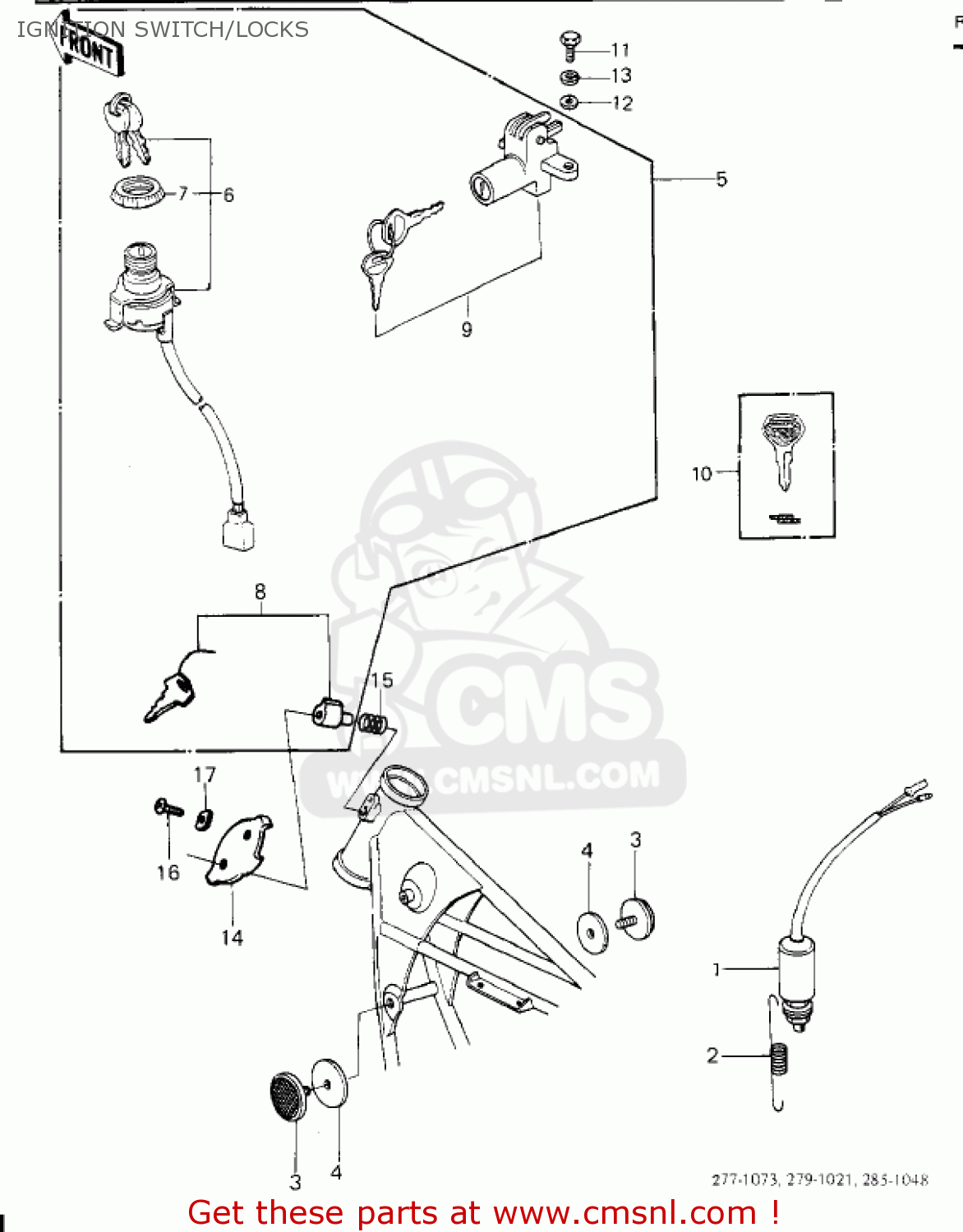

Ignition switch/locks diagram KZ650E1 LTD 1980 USA / MPH
IGNITION SWITCH/LOCKS KZ650E1 LTD 1980 USA / MPH
×
prices are in EUR
ref
part #
description
quantity
1
27010017
ref: 1
SWITCH,BRAKE LAMP
€ 23.50
2
27011009
ref: 2
SPRING-BRAKE LAMP SW
€ 4.50
3
28012016
ref: 3
REFLECTOR REFLEX
€ 16.00
4
92094011
ref: 4
DAMPER,REFLECTOR
€ 3.00
5
270045020
ref: 5
LOCK ASSY
€ 135.50
6
270055007
ref: 6
SWITCH ASSY IGNITION
€ 136.00
7
27007004
ref: 7
NUT,IGNITION SWITCH
€ 8.00
8
270165009
ref: 8
LOCK-ASSY,STEERING
€ 97.00
9
270165010
ref: 9
LOCK-ASSY,SEAT
€ 72.50
10
270081103
ref: 10
KEY-LOCK,BLANK
€ 13.50
11
112B0614
ref: 11
BOLT-UPSET 6X14
€ 2.50
12
411B0600
ref: 12
WASHER-PLAIN,6MM
€ 0.50
13
461F0600
ref: 13
WASHER-SPRING,6MM
€ 0.50
14
110121134
ref: 14
CAP,STEERING LOCK
€ 4.50
15
27032001
ref: 15
SPRING-STEERING LOCK
€ 3.50
16
92008007
ref: 16
SCREW-TAPPING
€ 2.50
17
92097003
ref: 17
WASHER
€ 2.50
