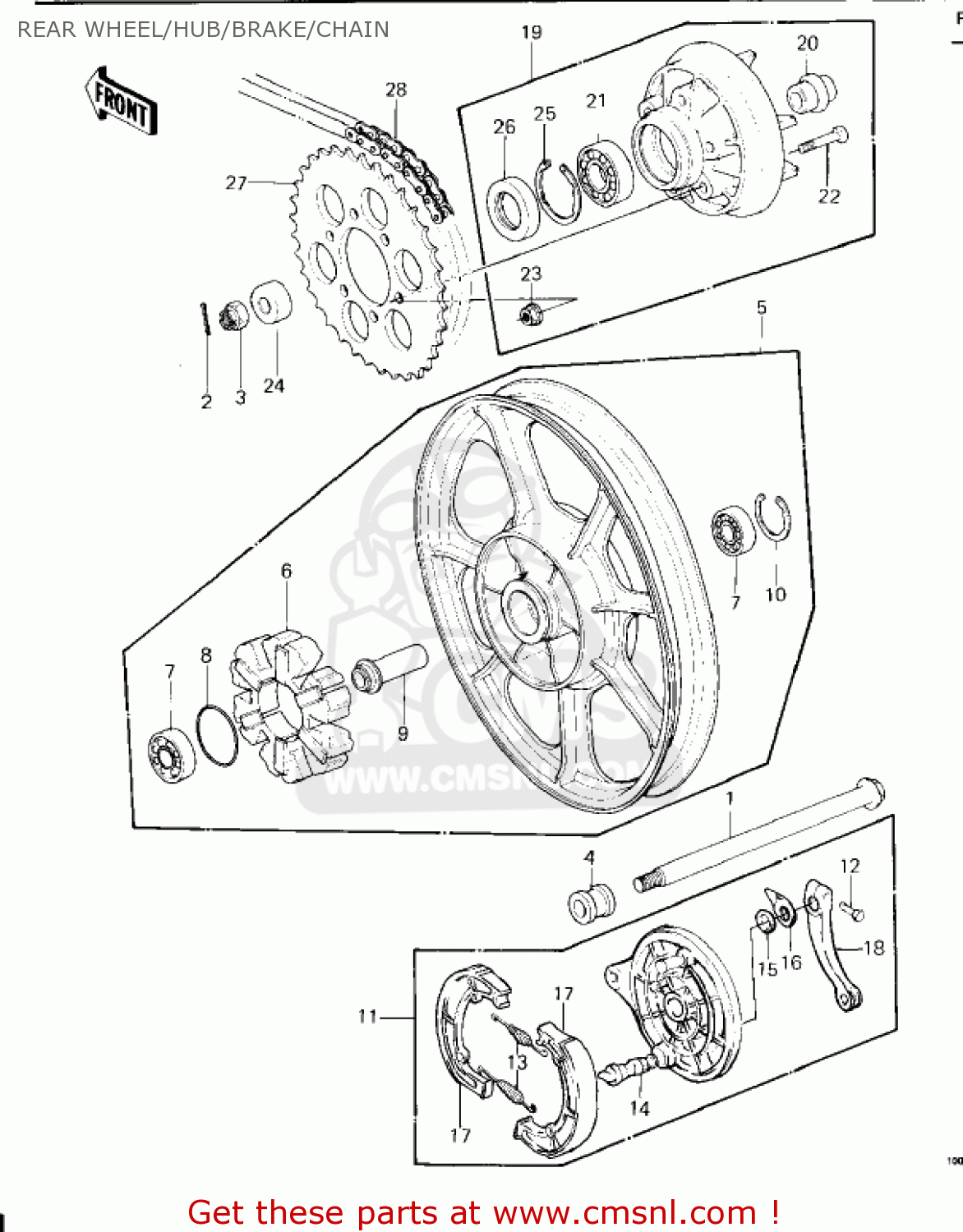

REAR WHEEL/HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

410681086
ref: 1

AXLE,RR

€ 49.00

2

550D4035
ref: 2

PIN-COTTER,4.0X35

€ 1.00

3

92015055
ref: 3

NUT,16MM

€ 8.00

4

920271226
ref: 4

COLLAR,AXLE,RR,RH,L=2

€ 19.50

5

410731065
ref: 5

SOLID WHEEL ASSEMBLY,REAR

€ 382.00

6

42014032
ref: 6

SHOCK DAMPER

€ 43.00

7

601B6303ZZ
ref: 7

BEARING-BALL,#6303ZZC

€ 32.50

8

671B2560
ref: 8

O RING,60MM

€ 1.50

9

920271047
ref: 9

COLLAR,REAR HUB BRG

€ 14.00

10

920331042
ref: 10

CIRCLIP,47M/M

€ 4.00

11

410351056
ref: 11
F/NO. 000001 ~ 00335

PANEL-ASSY-BRAKE,RR

€ 277.00

11

410351056
ref: 11

PANEL-ASSY-BRAKE,RR

€ 277.00

11

410351055
ref: 11
F/NO. 003357 ~ 00500

PANEL ASY,RR BRK,BLCK

€ 335.50

11

410351055
ref: 11

PANEL ASY,RR BRK,BLCK

€ 335.50

12

114G0828
ref: 12

BOLT-SMALL,8X28

€ 2.50

13

41049012
ref: 13

SPRING, BRKE SHOE

€ 6.00

14

41050017
ref: 14

CAM-BRAKE

€ 25.50

15

41051003
ref: 15

DUST SHIELD-BRAKE CAM

€ 2.50

16

41085004
ref: 16

INDICATOR,BRAKE SHOE

€ 10.00

17

42019012
ref: 17

SHOE, BRAKE (MCA)

€ 26.00

18

42029039
ref: 18

LEVER REAR BRAKE CAM

€ 37.00

19

420331018
ref: 19

REAR HUB COUPLING ASSEMBLY

€ 92.00

20

420361030
ref: 20

SLEEVE,RR HUB COUPLIN

€ 19.00

21

601B6206
ref: 21

BEARING-BALL,#6206C3

€ 19.50

22

92001161
ref: 22

BOLT,10X41

€ 3.00

23

920151415
ref: 23

NUT,10MM

€ 3.00

24

920271227
ref: 24

AXLE COLLAR,L=20.5MM

€ 8.00

25

920331044
ref: 25

CIRCLIP 62 M/M

€ 7.50

26

92050027
ref: 26

OIL SEAL

€ 13.50

27

420411024
ref: 27

REAR SPROCKET,41T

€ 79.00

28

920571232
ref: 28

CHAIN,DRIVE,EK50MV-OX

€ 167.50

all assemblies
