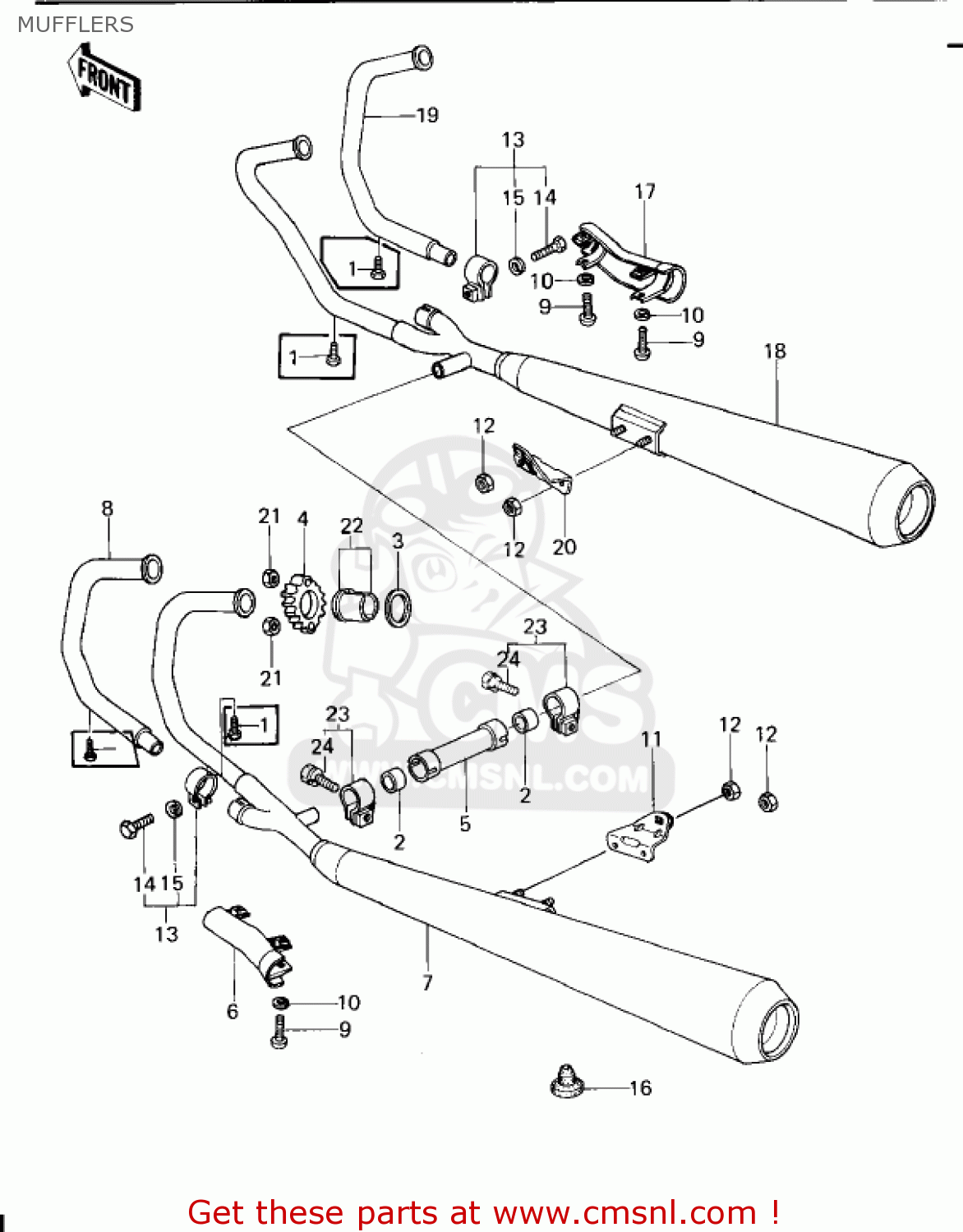

MUFFLERS

ref

part #

description

quantity

1

110R0610
ref: 1

BOLT,6X10

€ 5.00

2

110601051
ref: 2

GASKET,MUFFLER CONNEC (NAS)

€ 15.00

3

110091866
ref: 3

GASKET,EXHAUST PIPE H (NAS)

€ 7.50

4

180691006
ref: 4

HOLDER-EXHAUST PIPE

€ 16.00

5

320321671
ref: 5

PIPE,MUFFLER CONNECTI

€ 17.50

6

140251029
ref: 6

COVER,MUFFLER,L.H.

€ 22.50

7

180011035
ref: 7

MUFFLER ASSY,L.H

€ 277.50

8

180491036
ref: 8

PIPE,EXHAUST,#2

€ 72.50

9

220B0640
ref: 9

SCREW-PAN HEAD,6X40

€ 2.00

10

461F0600
ref: 10

WASHER-SPRING,6MM

€ 0.50

11

320691041
ref: 11

BRACKET,MUFFLER,L.H.

€ 17.00

12

92017013
ref: 12

NUT,LOCK,8MM

€ 5.50

13

920371224
ref: 13

CLAMP,EXHAUST PIPE

€ 8.50

14

115G0830
ref: 14

BOLT-SMALL-UPSET,8X30

€ 3.00

15

461F0800
ref: 15

WASHER-SPRING,8MM

€ 0.50

16

920751002
ref: 16

DAMPER RUBBER,MAIN ST

€ 4.00

17

140251030
ref: 17

COVER,MUFFLER,R.H.

€ 16.50

18

180011025
ref: 18

MUFFLER,R.H.

€ 673.50

19

180491038
ref: 19

PIPE,EXHAUST,#4

€ 72.50

20

320691042
ref: 20

BRACKET,MUFFLER,R.H.

€ 17.00

21

92017014
ref: 21

NUT,LOCK,6MM

€ 4.00

22

92027264
ref: 22

COLLAR, EXHAUST PIPE

€ 3.00

23

920371223
ref: 23

CLAMP

€ 8.50

24

920011379
ref: 24

BOLT,8X30

€ 3.00

all assemblies
