STARTER MOTOR/STARTER CLUTCH ('8

KZ250D1 KZ250 1980 USA CANADA / MPH KPH

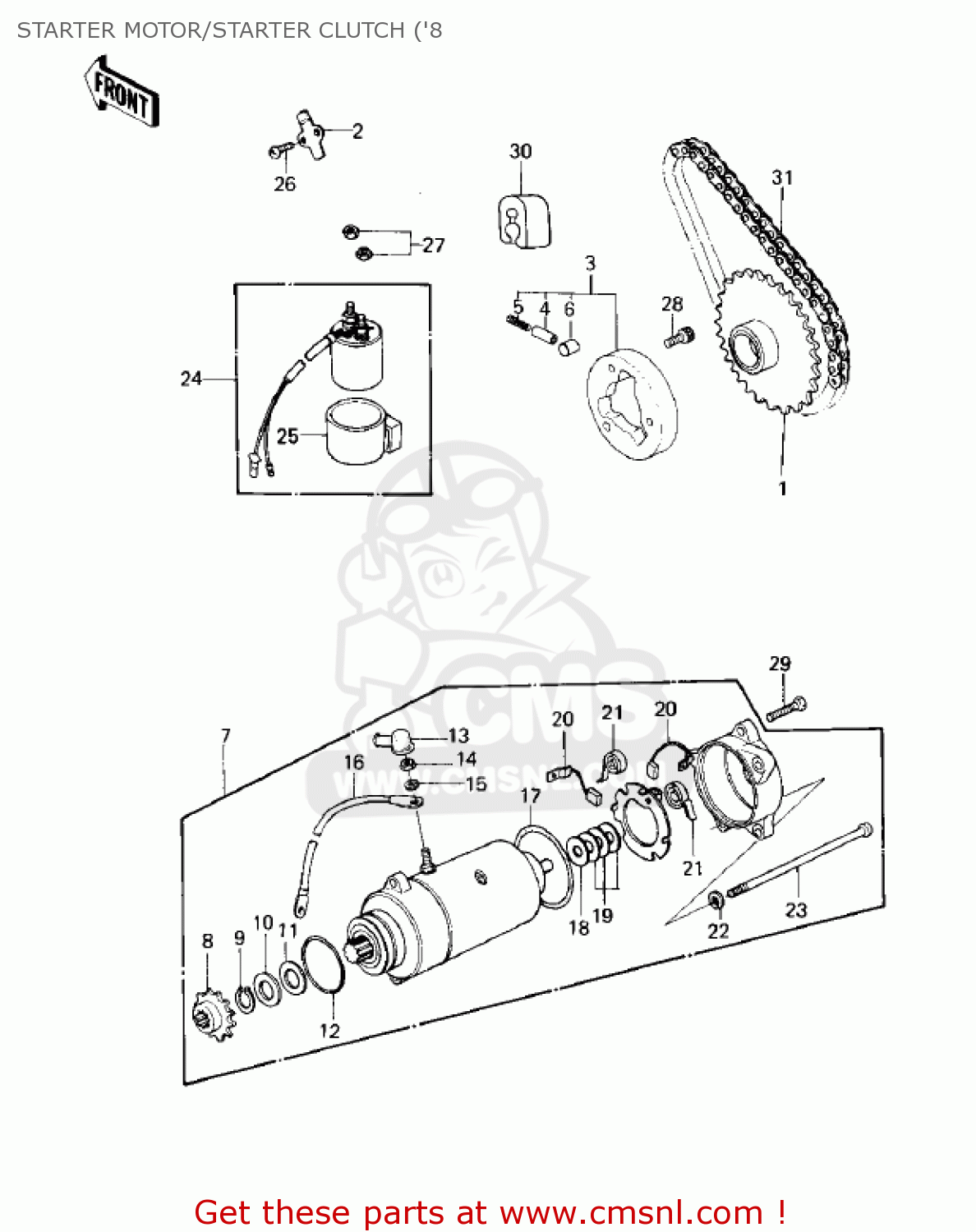

Starter motor/starter clutch ('8 diagram KZ250D1 KZ250 1980 USA CANADA / MPH KPH

STARTER MOTOR/STARTER CLUTCH ('8 KZ250D1 KZ250 1980 USA CANADA / MPH KPH

STARTER MOTOR/STARTER CLUTCH ('8 KZ250D1 KZ250 1980 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

120461023
ref: 1

SPROCKET,STARTER

€ 50.50

2

131691010
ref: 2

PLATE

€ 3.50

3

131931006
ref: 3

CLUTCH-ASSY-ONEWAY

€ 150.50

4

92043087
ref: 4

PIN

€ 8.00

5

92081110
ref: 5

SPRING

€ 3.00

6

92122001
ref: 6

ROLLER,15X14.4

€ 7.50

7

211631036
ref: 7

STARTER-ELECTRIC

€ 380.00

8

120461004
ref: 8

SPROCKET,STARTER MOTR

€ 35.50

9

92033037
ref: 9

RING-SNAP,13MM

€ 6.50

10

21025008
ref: 10
0.2 T

WASHER,PLAIN,14MM

€ 3.50

11

21025009
ref: 11
0.5 T

WASHER,PLAIN,14MM

€ 3.50

12

21027005
ref: 12

'O' RING,42.8MM

€ 5.50

13

21017020
ref: 13

CAP,STARTING MOTOR

€ 6.00

14

312B0600
ref: 14

NUT,6MM

€ 0.50

15

461F0600
ref: 15

WASHER-SPRING,6MM

€ 0.50

16

260111201
ref: 16

WIRE-LEAD,STARTER MOT

€ 32.50

17

21027006
ref: 17

RING-O,62MM

€ 8.00

18

21025010
ref: 18

WASHER,THRUST,T=1.6

€ 4.00

19

21025011
ref: 19

WASHER, THRUST, 0.2T

€ 4.00

20

21039004
ref: 20

BRUSH,CARBON

€ 23.00

21

21040004
ref: 21

SPRING-BRUSH

€ 5.50

22

461F0600
ref: 22

WASHER-SPRING,6MM

€ 0.50

23

920011046
ref: 23

SCREW,PAN HEAD, 6X130

€ 6.00

24

21164005
ref: 24

SWITCH ASSY,MAGNETIC

€ 99.00

25

21064002
ref: 25

DAMPER,MAGNETIC SWITC

€ 13.50

26

220B0614
ref: 26

SCREW-PAN HEAD,6X14

€ 2.00

27

311G0600
ref: 27

NUT,6M/M

€ 0.50

28

120P0816
ref: 28

BOLT-SOCKET

€ 2.50

29

130G0625
ref: 29

BOLT,FLANGED,6X25

€ 0.50

30

920371049
ref: 30

CLAMP, CABLE

€ 2.00

31

920571009
ref: 31

CHAIN,DYNAMO

€ 12.50
