GENERATOR/REGULATOR ('80 D1)

KZ250D1 KZ250 1980 USA CANADA / MPH KPH

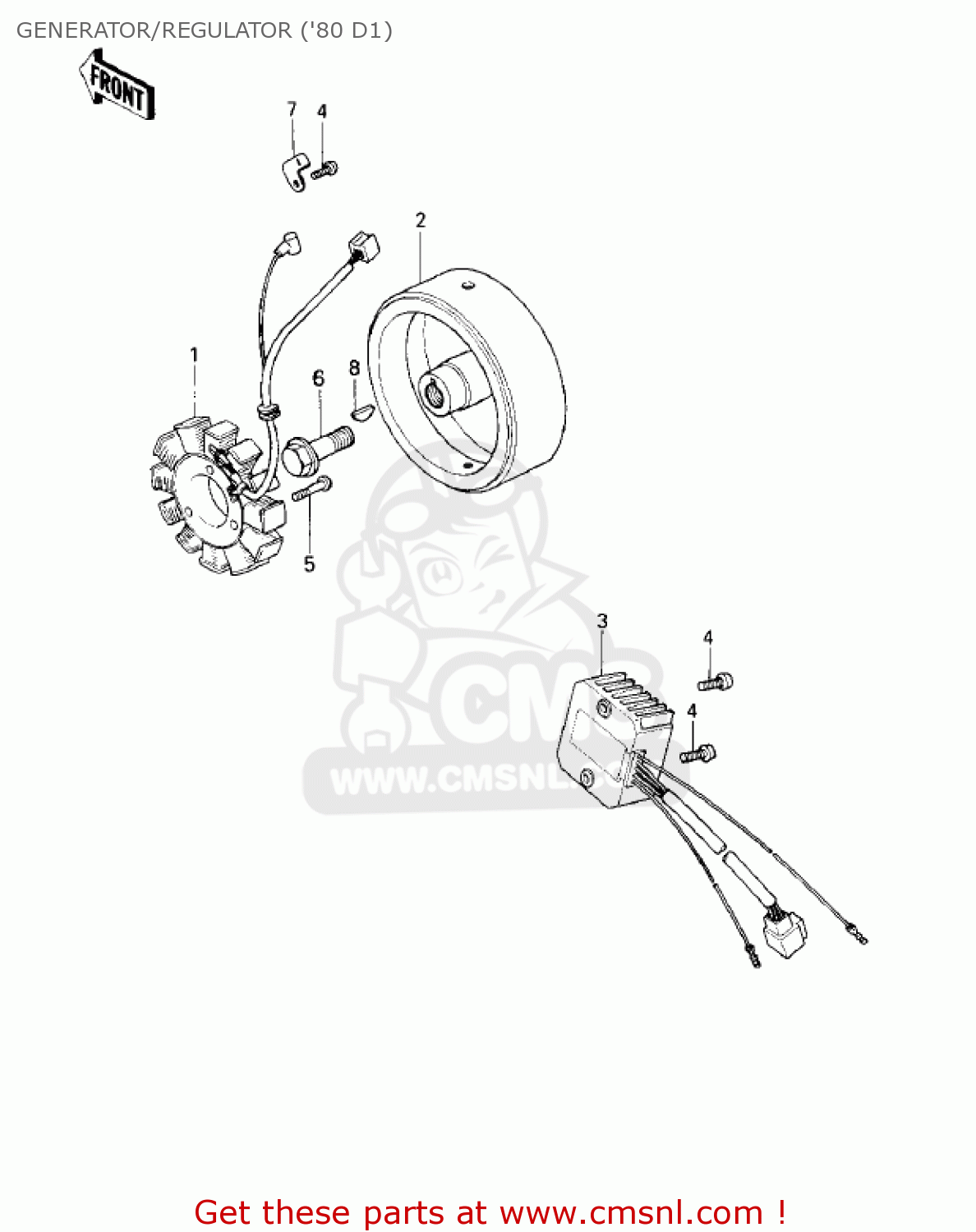

Generator/regulator ('80 d1) diagram KZ250D1 KZ250 1980 USA CANADA / MPH KPH

GENERATOR/REGULATOR ('80 D1) KZ250D1 KZ250 1980 USA CANADA / MPH KPH

GENERATOR/REGULATOR ('80 D1) KZ250D1 KZ250 1980 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

210031002
ref: 1

STATOR

€ 249.00

2

210071030
ref: 2

ROTOR

€ 342.00

3

210661014
ref: 3

REGULATOR-VOLTAGE

€ 170.50

4

220B0614
ref: 4

SCREW-PAN HEAD,6X14

€ 2.00

5

220B0625
ref: 5

SCREW-PAN HEAD,6X25

€ 1.50

6

920011201
ref: 6

BOLT,ROTOR,10X40

€ 7.00

7

92037194
ref: 7

CLAMP

€ 2.50

8

92038001
ref: 8

WOODRUFF KEY

€ 3.00
