REAR HUB/BRAKE/CHAIN ('80 D1)

KZ250D1 KZ250 1980 USA CANADA / MPH KPH

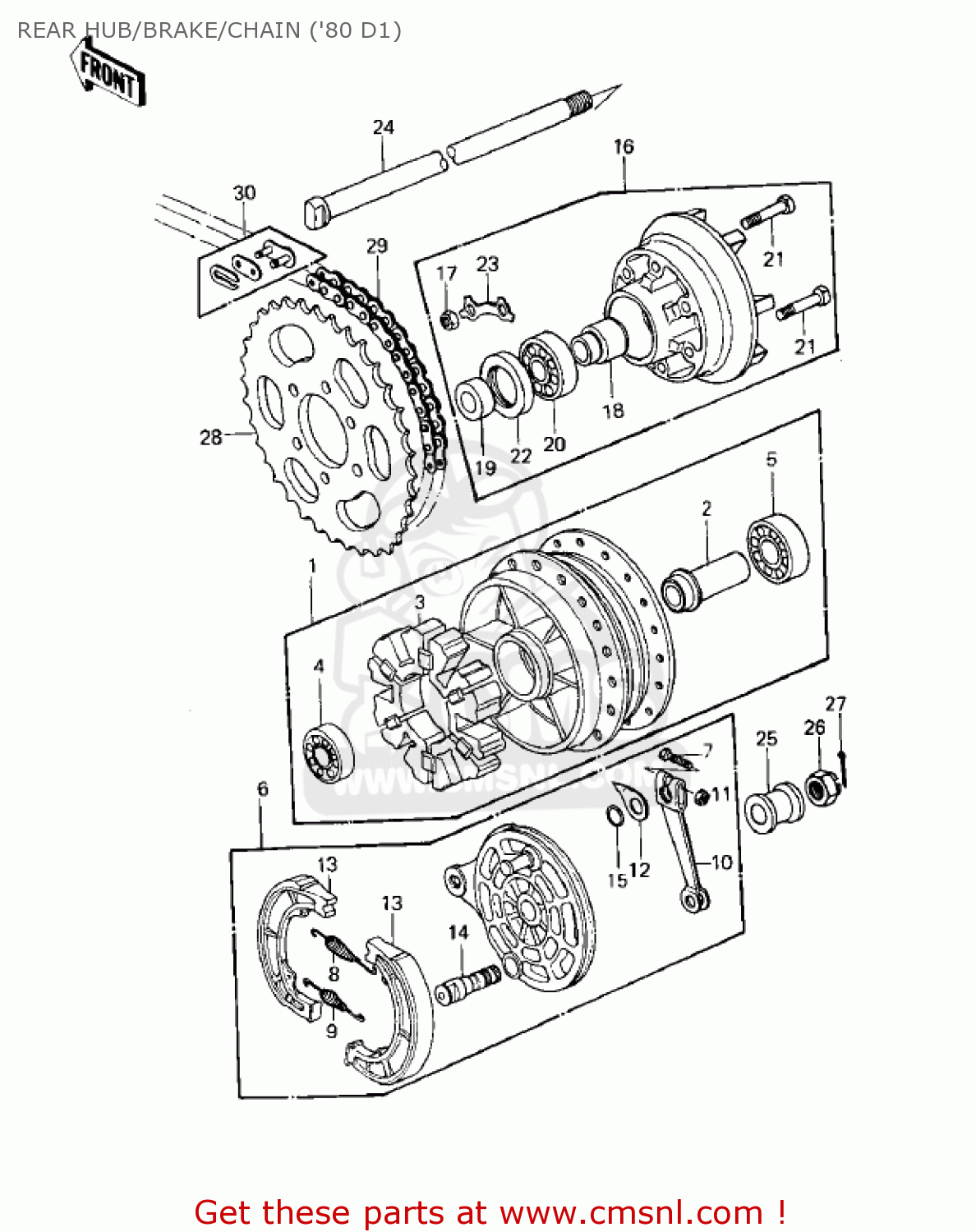

Rear hub/brake/chain ('80 d1) diagram KZ250D1 KZ250 1980 USA CANADA / MPH KPH

REAR HUB/BRAKE/CHAIN ('80 D1) KZ250D1 KZ250 1980 USA CANADA / MPH KPH

REAR HUB/BRAKE/CHAIN ('80 D1) KZ250D1 KZ250 1980 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

42005057
ref: 1

DRUM-ASSY,RR

€ 454.00

2

42010037
ref: 2

COLLAR,L=57

€ 9.00

3

42014030
ref: 3

DAMPER,REAR HUB SHOCK

€ 7.50

4

601B6202
ref: 4

BEARING-BALL,#6202C3

€ 14.50

5

601B6302Z
ref: 5

BEARING-BALL,#6302ZC3

€ 22.50

6

410351090
ref: 6

PANEL-ASSY-BRAKE,RR

€ 278.00

7

112G0630
ref: 7

BOLT-UPSET

€ 1.00

8

920811766
ref: 8

SPRING,BRAKE SHOE

€ 5.50

9

920811550
ref: 9

SPRING,BRAKE SHOE

€ 6.00

10

41053002
ref: 10

LEVER-BRAKE CAM

€ 11.50

11

41072007
ref: 11

NUT,6MM

€ 2.50

12

41085013
ref: 12

INDICATOR,BRAKE SHOE

€ 10.00

13

42019010
ref: 13

SHOE,BRAKE (MCA)

€ 26.00

14

42026026
ref: 14

CAM-BRAKE

€ 16.00

15

92055004
ref: 15

RING-O,BRAKE CAM

€ 3.00

16

420331029
ref: 16

COUPLING-ASSY,RR HUB

€ 112.50

17

311B0800
ref: 17

NUT,8MM

€ 0.50

18

42036031
ref: 18

SLEEVE,RR HUB COUPLIN

€ 16.00

19

42037029
ref: 19

COLLAR,REAR HUB COUPR

€ 12.00

20

601B6004
ref: 20

BEARING-BALL,#6004C3

€ 10.50

21

92001021
ref: 21

BOLT-REAR SPROCKET

€ 3.50

22

92050060
ref: 22

OIL SEAL,RR HUB BRNK

€ 12.00

23

92088019
ref: 23

WASHER,SPROCKET LOCK

€ 4.00

24

42031059
ref: 24

AXLE, REAR

€ 45.00

25

42032076
ref: 25

COLLAR, REAR AXLE

€ 11.50

26

42045020
ref: 26

NUT,14MM

€ 6.50

27

550D3025
ref: 27

PIN-COTTER,3.0X25

€ 0.50

28

420411042
ref: 28

SPROCKET-HUB,37T

€ 41.00

29

920571034
ref: 29
ED 520SHG

CHAIN,DRIVE,EK520SH-G

€ 55.00

30

920581001
ref: 30

JOINT-CHAIN

€ 4.50
