CLUTCH ('80 D1)

KZ250D1 KZ250 1980 USA CANADA / MPH KPH

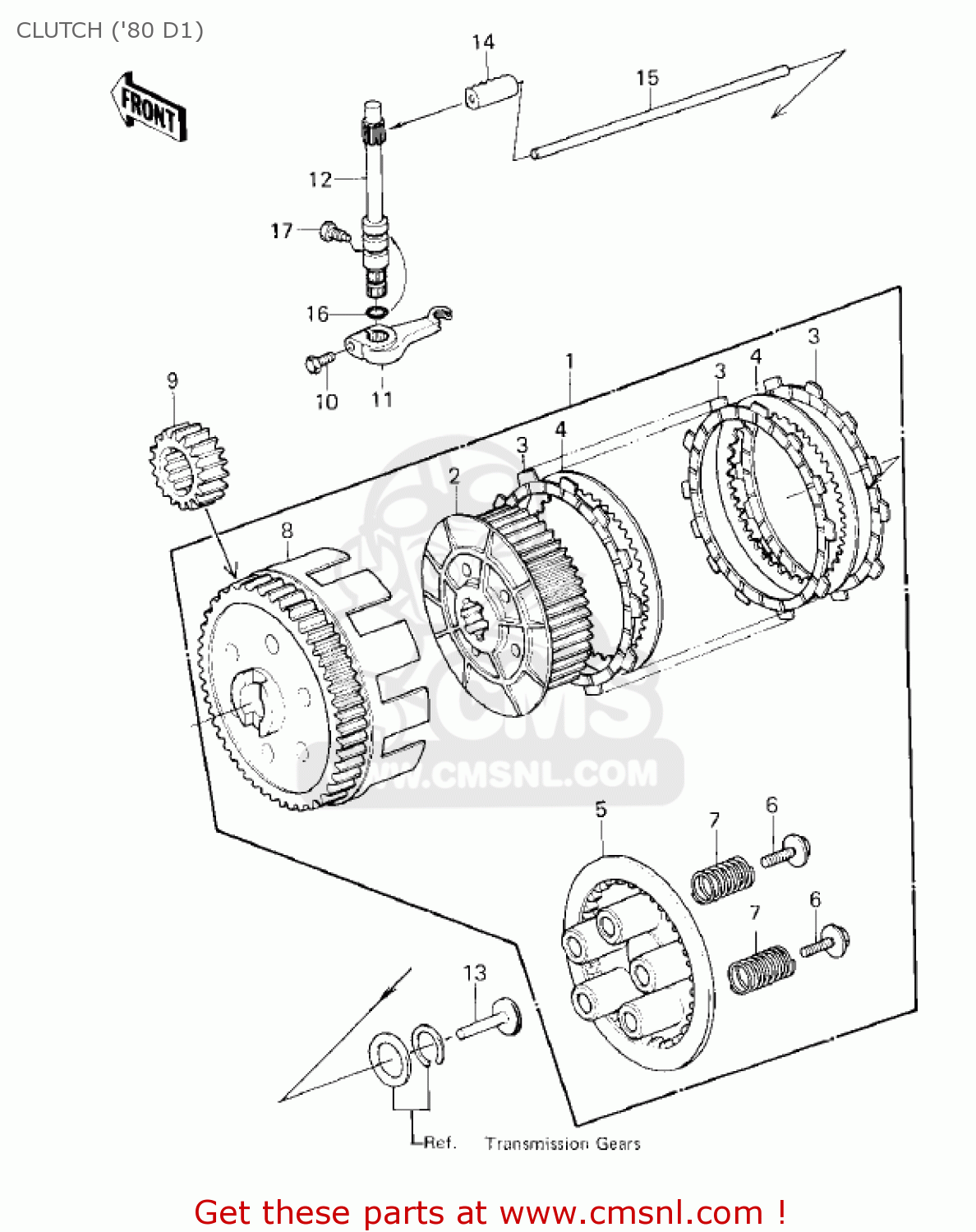

Clutch ('80 d1) diagram KZ250D1 KZ250 1980 USA CANADA / MPH KPH

CLUTCH ('80 D1) KZ250D1 KZ250 1980 USA CANADA / MPH KPH

CLUTCH ('80 D1) KZ250D1 KZ250 1980 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

130811046
ref: 1

CLUTCH ASSY

€ 487.00

2

130871001
ref: 2

HUB-CLUTCH

€ 91.00

3

130881008
ref: 3

PLATE,CLUTCH FRICTION (MCA)

€ 11.50

4

13089013
ref: 4

PLATE-CLUTCH,T=1.6 (NAS)

€ 6.50

5

131871005
ref: 5

PLATE,CLUTCH OPERATNG

€ 30.00

6

920011066
ref: 6

BOLT, CLUTCH SPR FITT

€ 4.00

7

92081083
ref: 7

SPRING-CLUTCH

€ 5.50

8

130951015
ref: 8

HOUSING-COMP-CLUTCH

€ 349.00

9

13121035
ref: 9

GEAR-PRIMARY SPUR,21T

€ 95.50

10

112G0618
ref: 10

BOLT-UPSET

€ 0.50

11

13116016
ref: 11

ROD-PUSH,CLUTCH SPRIN

€ 11.50

12

13106006
ref: 12

SHAFT,

€ 24.50

13

13116016
ref: 13

ROD-PUSH,CLUTCH SPRIN

€ 11.50

14

131161040
ref: 14

ROD,CLUTCH PUSH

€ 15.50

15

131161002
ref: 15

ROD-PUSH,CLUTCH,L=208

€ 8.50

16

670B2010
ref: 16

O RING,10MM

€ 1.00

17

92003130
ref: 17

BOLT,CLUTCH RELEASE

€ 3.50
