BRAKE PEDAL/TORQUE LINK ('81 D2)

KZ250D1 KZ250 1980 USA CANADA / MPH KPH

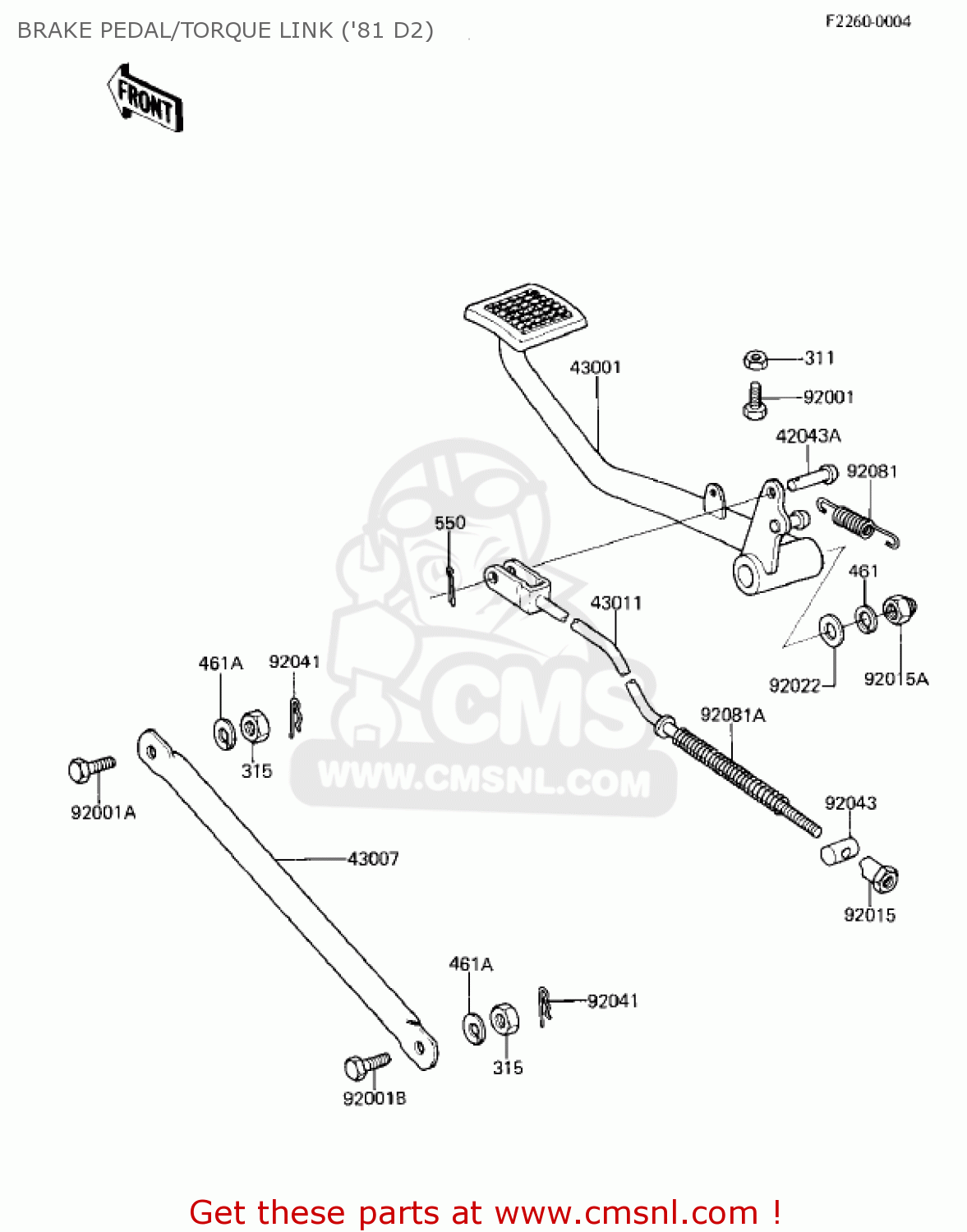

Brake pedal/torque link ('81 d2) diagram KZ250D1 KZ250 1980 USA CANADA / MPH KPH

BRAKE PEDAL/TORQUE LINK ('81 D2) KZ250D1 KZ250 1980 USA CANADA / MPH KPH

BRAKE PEDAL/TORQUE LINK ('81 D2) KZ250D1 KZ250 1980 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

43001

430011044
ref: 43001

PEDAL,BRAKE

€ 37.00

43007

43007018
ref: 43007

TORQUE LINK,REAR BRK

€ 8.50

43011

430111022
ref: 43011

ROD,BRAKE

€ 16.00

92001

920011090
ref: 92001

BOLT,HEX HEAD,6X25

€ 2.50

92001A

92003017
ref: 92001A

BOLT-TRQ LINK 10X25

€ 3.50

92001B

92003096
ref: 92001B

BOLT-TRQ LINK 10X29

€ 7.00

92015

92015042
ref: 92015

NUT-BRAKE ROD ADJUST

€ 4.00

92015A

920151131
ref: 92015A

NUT,CAP,LOCK,8MM

€ 5.50

92022

920221561
ref: 92022

WASHER,8.5X20X1.6

€ 2.50

92041

554A0800
ref: 92041

PIN-SNAP,8MM

€ 1.00

92043

92043039
ref: 92043

PIN,BRAKE ROD

€ 4.50

92043A

92043090
ref: 92043A

PIN,6X13

€ 4.00

92081

43005029
ref: 92081

SPRING,BRAKE PEDAL

€ 6.00

92081A

43012001
ref: 92081A

SPRING,BRAKE ROD

€ 3.00

311

311B0600
ref: 311

NUT,6MM

€ 0.50

315

315B1000
ref: 315

NUT,10MM

€ 0.50

461

461F0800
ref: 461

WASHER-SPRING,8MM

€ 0.50

461A

461F1000
ref: 461A

WASHER-SPRING,10MM

€ 0.50

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00
