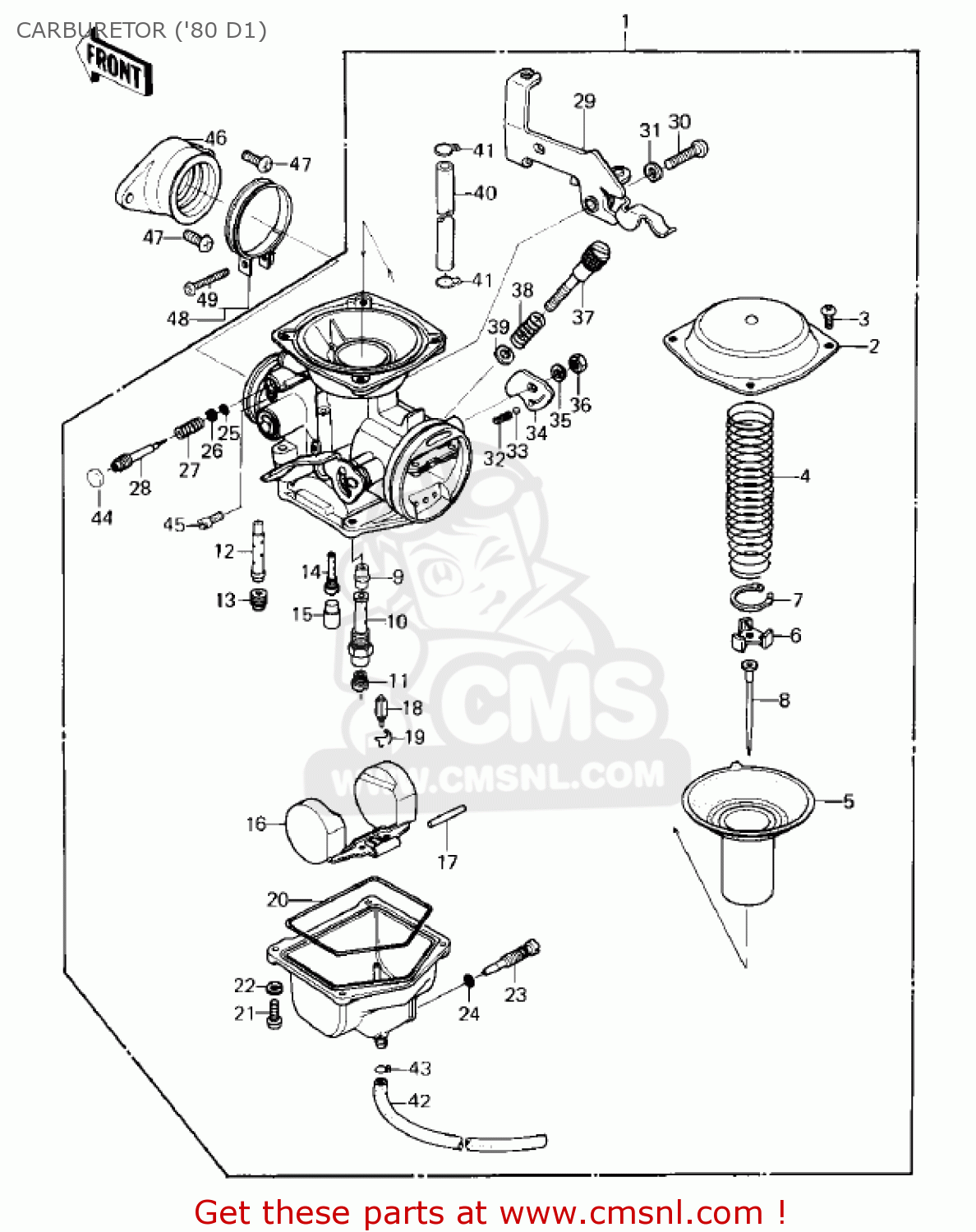

CARBURETOR ('80 D1)

ref

part #

description

quantity

1

160011160
ref: 1

CARBURETOR ASSEMBLY

€ 269.50

2

160051001
ref: 2

TOP-CHAMBER,MIXING

€ 23.50

3

220B0408
ref: 3

SCREW-PAN-CROS

€ 0.50

4

920811001
ref: 4

SPRING

€ 10.00

5

161261042
ref: 5

VALVE

€ 214.00

6

160071001
ref: 6

SEAT-SPRING,THROTTLE

€ 8.00

7

920371005
ref: 7

CLAMP

€ 5.50

8

160091054
ref: 8

NEEDLE-JET,N05A

€ 16.50

9

160171052
ref: 9

JET,NEEDLE

€ 24.50

10

130911050
ref: 10

HOLDER,NEEDLE JET,N41

€ 16.00

11

920631005
ref: 11

JET-MAIN,#98

€ 10.00

11

920631004
ref: 11
RACING USE ONLY

JET-MAIN,#92

€ 10.00

11

920631001
ref: 11
RACING USE ONLY

JET-MAIN,#95

€ 10.00

11

920631006
ref: 11
RACING USE ONLY

MAIN JET, 2ND, # 100

€ 9.00

11

920631090
ref: 11
RACING USE ONLY

MAIN JET,2ND,#102

€ 10.00

12

920621001
ref: 12

NOZZLE,MAIN

€ 15.50

13

920631050
ref: 13

JET-MAIN,PRI,#68

€ 10.00

14

920641001
ref: 14

JET-PILOT,#35

€ 14.00

15

160121001
ref: 15

CAP,RUBBER

€ 3.50

16

160311001
ref: 16

FLOAT

€ 38.50

17

920431002
ref: 17

PIN,FLOAT

€ 3.50

18

160301007
ref: 18

FLOAT VALVE ASSY

€ 37.00

19

16044007
ref: 19

CLIP, FLOAT VALVE

€ 4.00

20

16019024
ref: 20

O RING,FLOAT CHAMBER

€ 15.00

21

220B0412
ref: 21

SCREW-PAN CROS 4X12

€ 0.50

22

461F0400
ref: 22

WASHER-SPRING,4MM

€ 0.50

23

920091095
ref: 23

SCREW,DRAIN

€ 10.00

24

920551053
ref: 24

O RING,DRAIN SCREW

€ 3.00

25

920551002
ref: 25

O RING,PILOT ADJUST

€ 2.50

26

920221003
ref: 26

WASHER,PLAIN

€ 2.50

27

920811002
ref: 27

SPRING,PIROT ADJ SCRW

€ 3.50

28

160141029
ref: 28

SCREW-PILOT AIR

€ 13.50

29

110341826
ref: 29

BRACKET,THROTTLE CABL

€ 36.50

30

220B0525
ref: 30

SCREW-PAN-CROS,5X25

€ 2.50

31

461F0500
ref: 31

WASHER-SPRING,5MM

€ 0.50

32

920811004
ref: 32

SPRING

€ 3.00

33

600A0400
ref: 33

BALL-STEEL,1/8

€ 2.00

34

131691303
ref: 34

PLATE,CHOKE LINK

€ 4.50

35

461F0500
ref: 35

WASHER-SPRING,5MM

€ 0.50

36

311B0500
ref: 36

NUT-HEX

€ 0.50

37

160211031
ref: 37

SCREW-THROTTLE STOP

€ 9.50

38

920811062
ref: 38

SPRING,STOP SCREW

€ 4.50

39

920221209
ref: 39

WASHER,PLANE

€ 2.00

40

920591001
ref: 40

HOSE, FUEL INLET

€ 13.50

41

920371682
ref: 41

CLAMP,TUBE

€ 4.00

42

920591046
ref: 42

TUBE,3.5X6.5X270

€ 9.50

43

920371142
ref: 43

CLAMP,TUBE

€ 2.50

44

920661051
ref: 44

PLUG,PILOT AIR SCREW,

€ 3.00

45

920091004
ref: 45

SCREW, PLUG

€ 5.50

46

160651028
ref: 46

HOLDER-CARBURETOR

€ 22.50

47

220B0614
ref: 47

SCREW-PAN HEAD,6X14

€ 2.00

48

920371021
ref: 48

CLAMP,CARBURETOR

€ 2.00

49

220B0530
ref: 49

SCREW-PAN-CROS

€ 2.00

all assemblies
