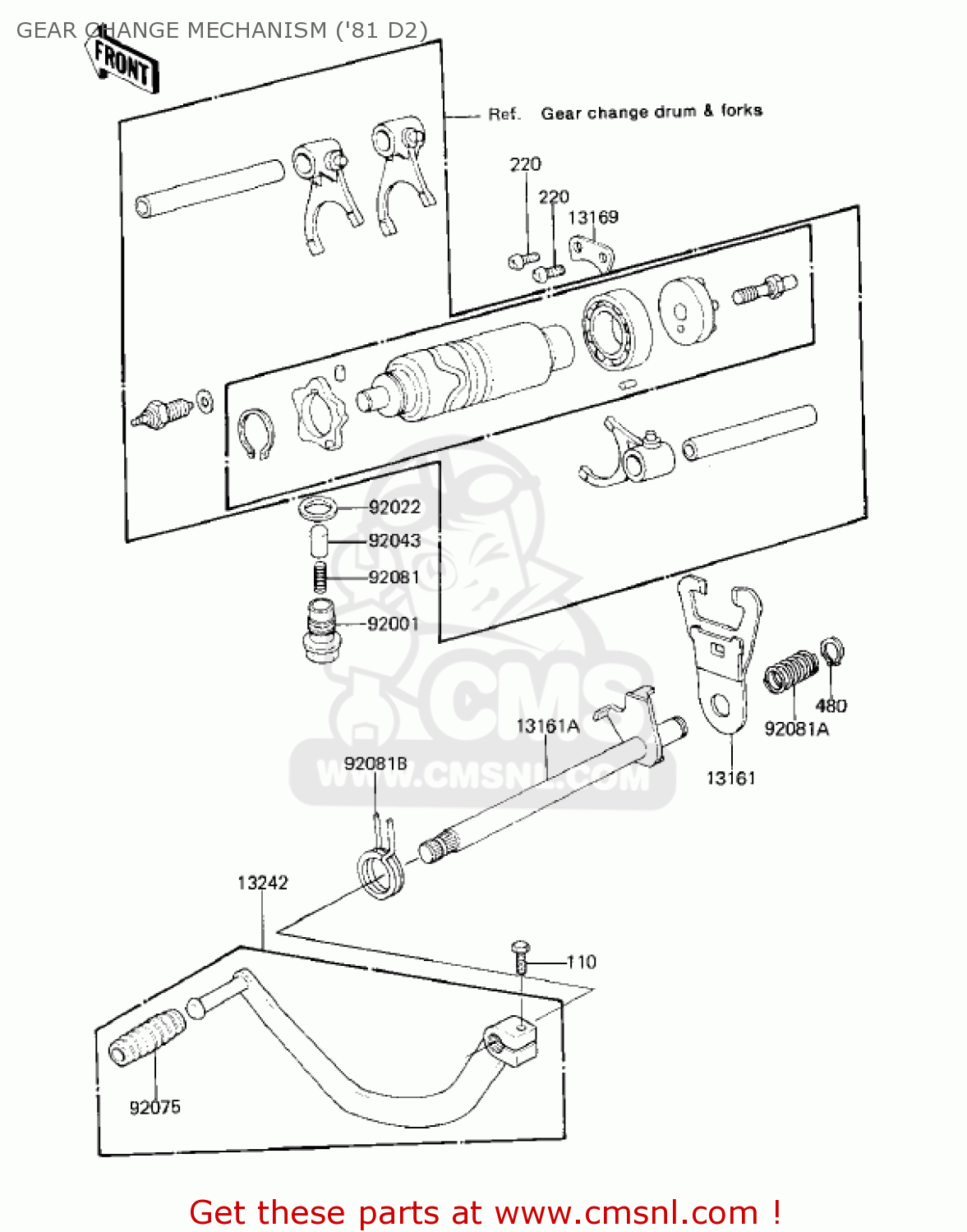

GEAR CHANGE MECHANISM ('81 D2)

KZ250D1 KZ250 1980 USA CANADA / MPH KPH

Gear change mechanism ('81 d2) diagram KZ250D1 KZ250 1980 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

13161

13161044
ref: 13161

LEVER-COMP-CHANGE SHA

€ 40.50

13161A

131611013
ref: 13161A

LEVER-COMP-CHANGE SHA

€ 58.00

13169

13169014
ref: 13169

PLATE,GEAR CHANGE DRU

€ 3.00

13242

132421020
ref: 13242

LEVER ASSY,GEAR SHIFT

€ 43.50

92001

92001182
ref: 92001

BOLT,NEUTRAL POSITION

€ 12.00

92022

92022324
ref: 92022

WASHER,16.5X23X2

€ 3.00

92043

92043131
ref: 92043

PIN,NEUTRAL POSITIONG

€ 5.00

92075

921601036
ref: 92075

DAMPER,CHANGE PEDAL

€ 3.50

92081

92081112
ref: 92081

SPRING

€ 4.00

92081A

92081149
ref: 92081A

SPRING, COIL

€ 3.00

92081B

92083028
ref: 92081B

SPRING,CHG PEDL RTRN

€ 9.50

110

112G0620
ref: 110

BOLT 6X20

€ 1.00

220

220B0614
ref: 220

SCREW-PAN HEAD,6X14

€ 2.00

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50
