CYLINDER/PISTON ('81 D2)

KZ250D1 KZ250 1980 USA CANADA / MPH KPH

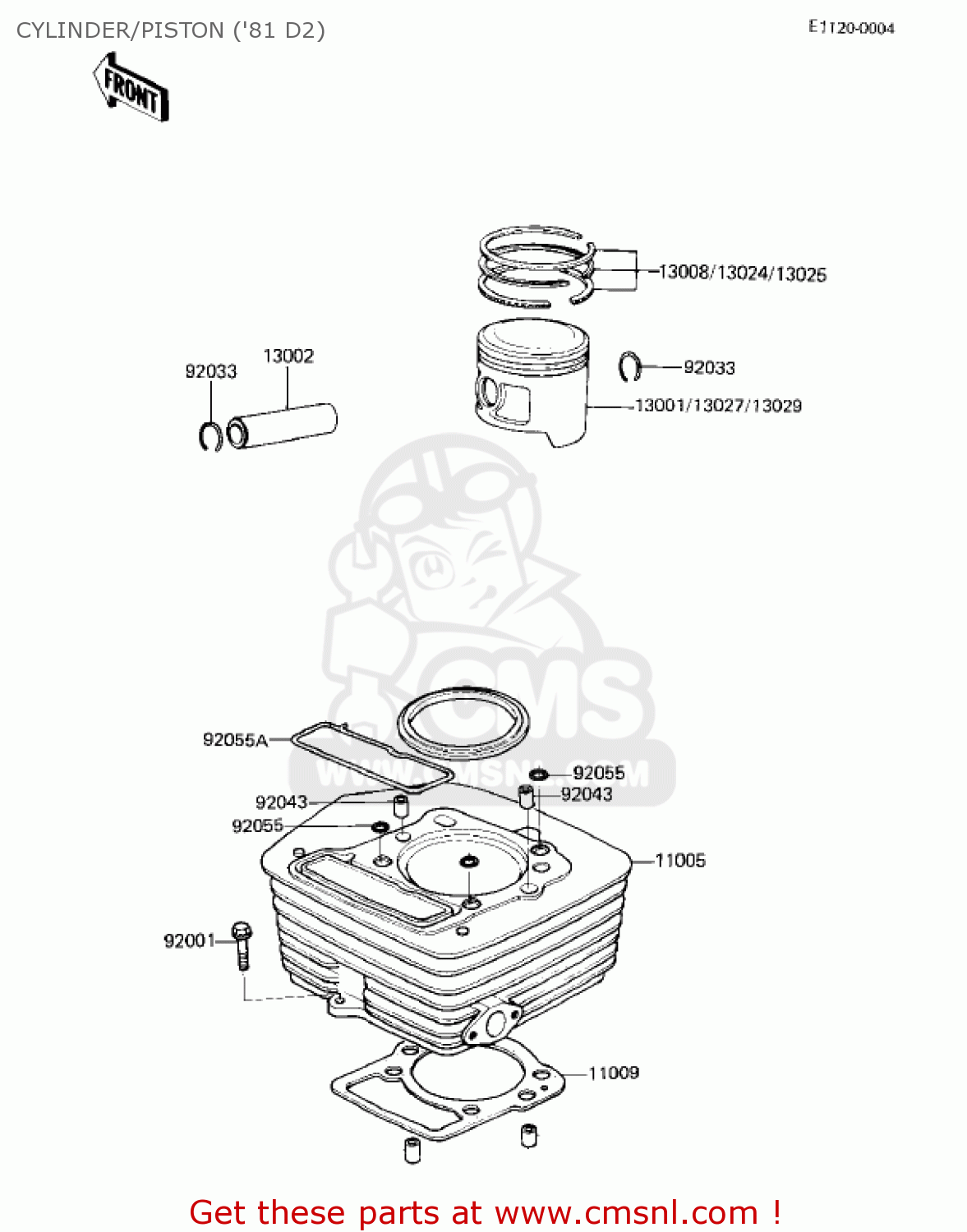

Cylinder/piston ('81 d2) diagram KZ250D1 KZ250 1980 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

11005

110061005
ref: 11005

CYLINDER

€ 270.00

11009

11009043
ref: 11009

GASKET, CYLINDER BASE (MCA)

€ 9.00

13001

130011037
ref: 13001

PISTON-ENGINE,STD

€ 87.50

13002

130021013
ref: 13002

PIN-PISTON

€ 5.00

13008

130085012
ref: 13008

RING-SET-PISTON,STD

€ 110.50

13024

130245008
ref: 13024

RING-SET-PISTON LL,O/

€ 91.00

13025

130255007
ref: 13025

RING-SET-PISTON L,O/S

€ 125.50

13027

130271005
ref: 13027

PISTON-ENGINE-LL,O/S

€ 81.50

13029

130291003
ref: 13029

PISTON-ENGINE-L,O/S 0

€ 165.00

92001

92003202
ref: 92001

BOLT

€ 4.00

92033

92036021
ref: 92033

CIRCLIP-PISTON PIN

€ 0.50

92043

920431037
ref: 92043

PIN,DOWEL,10X8.2X14

€ 0.50

92055

920551149
ref: 92055

RING-O,10MM

€ 4.00

92055A

92055105
ref: 92055A

RING-O,CHAIN TUNNEL

€ 23.50
