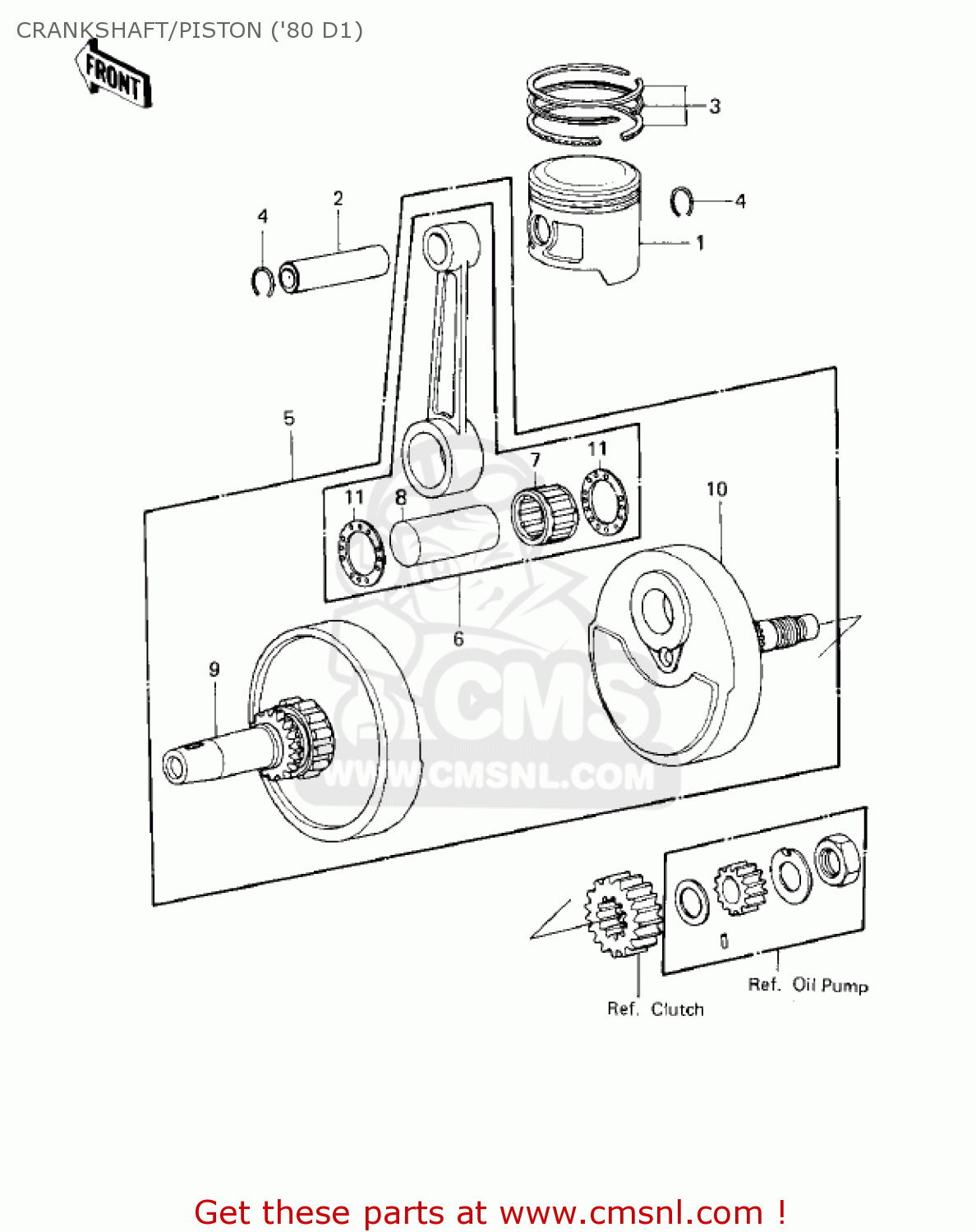

CRANKSHAFT/PISTON ('80 D1)

KZ250D1 KZ250 1980 USA CANADA / MPH KPH

Crankshaft/piston ('80 d1) diagram KZ250D1 KZ250 1980 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

130011037
ref: 1

PISTON-ENGINE,STD

€ 87.50

130291003
ref: 1

PISTON-ENGINE-L,O/S 0

€ 165.00

130271005
ref: 1

PISTON-ENGINE-LL,O/S

€ 81.50

130021013
ref: 2

PIN-PISTON

€ 5.00

130085012
ref: 3

RING-SET-PISTON,STD

€ 110.50

130255007
ref: 3

RING-SET-PISTON L,O/S

€ 125.50

130245008
ref: 3

RING-SET-PISTON LL,O/

€ 91.00

92036021
ref: 4

CIRCLIP-PISTON PIN

€ 0.50

130311029
ref: 5

CRANK & CONROD ASSY

€ 462.00

130445005
ref: 6

SET-CONNECTING ROD

€ 224.50

13034031
ref: 7

BEARING-NEEDLE,PK2939

€ 29.50

13035035
ref: 8

PIN, CRANK

€ 29.50

130375003
ref: 9

CRANK SHAFT,L.H

€ 258.00

130371064
ref: 10

CRANK SHAFT,R.H

€ 104.00

92026087
ref: 11

SPACER,CONNECTING ROD

€ 6.50
