CRANKCASE ('80 D1)

KZ250D1 KZ250 1980 USA CANADA / MPH KPH

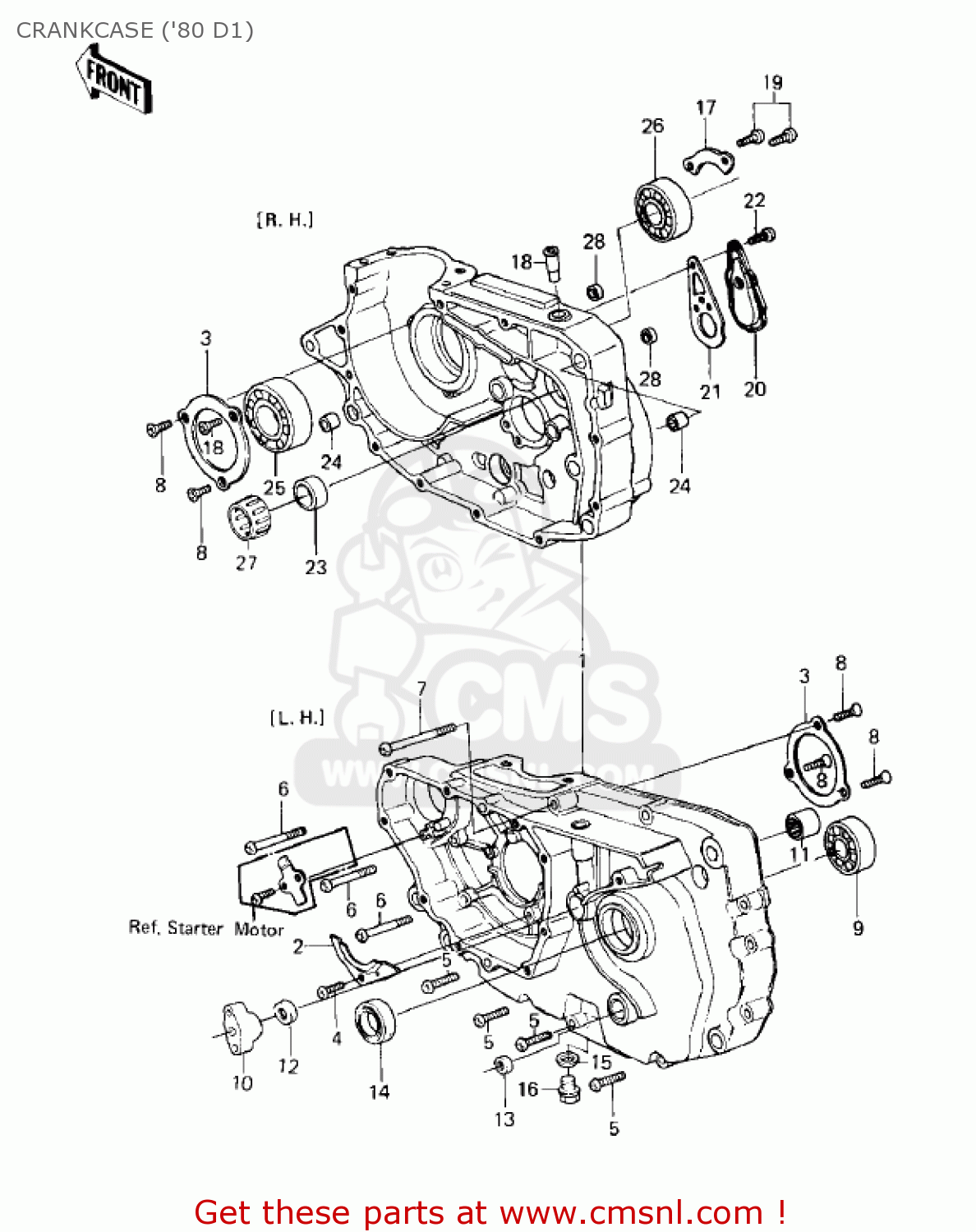

Crankcase ('80 d1) diagram KZ250D1 KZ250 1980 USA CANADA / MPH KPH

CRANKCASE ('80 D1) KZ250D1 KZ250 1980 USA CANADA / MPH KPH

CRANKCASE ('80 D1) KZ250D1 KZ250 1980 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

140015083
ref: 1

SET-CRANKCASE

€ 442.00

2

14014035
ref: 2

PLATE-POSITION,CAM CH

€ 3.00

3

140141004
ref: 3

PLATE,POSITIONING

€ 8.00

4

220B0614
ref: 4

SCREW-PAN HEAD,6X14

€ 2.00

5

220B0630
ref: 5

SCREW-PAN HEAD,6X30

€ 2.50

6

220B0655
ref: 6

SCREW-PAN HEAD,6X55

€ 2.50

7

220B0675
ref: 7

SCREW,PAN HEAD,6X75

€ 3.00

8

221B0616
ref: 8

SCREW-CNTSNK HD,6X16

€ 0.50

9

601B6205
ref: 9

BEARING-BALL,#6205C3

€ 14.00

10

920271467
ref: 10

COLLAR,PUSH ROD

€ 2.50

11

92046060
ref: 11

BEARING-NEEDLE,HMK151

€ 17.50

12

92050077
ref: 12

OIL SEAL, PUSH ROD

€ 7.50

13

92050082
ref: 13

OIL SEAL,CHANGE SHAFT

€ 5.50

14

920491159
ref: 14

SEAL-OIL,TC32457

€ 8.00

15

92065097
ref: 15

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

16

920661174
ref: 16

PLUG,OIL DRAIN,12X15

€ 4.00

17

14014037
ref: 17

PLATE-POSITION

€ 2.50

18

14067006
ref: 18

BREATHER JOINT

€ 14.00

19

220B0614
ref: 19

SCREW-PAN HEAD,6X14

€ 2.00

20

16078002
ref: 20

CAP

€ 6.00

21

16079002
ref: 21

GASKET (MCA)

€ 2.50

22

220B0614
ref: 22

SCREW-PAN HEAD,6X14

€ 2.00

23

92028132
ref: 23

BUSHING

€ 28.00

24

92042032
ref: 24

PIN,DOWEL,14MM

€ 3.00

25

92045037
ref: 25

BEARING-BALL,#6306

€ 40.00

26

92045038
ref: 26

BEARING-BALL,#6006

€ 23.50

27

920461184
ref: 27
KT172314

BEARING-NEEDLE

€ 20.00

28

920661282
ref: 28

PLUG

€ 4.00
