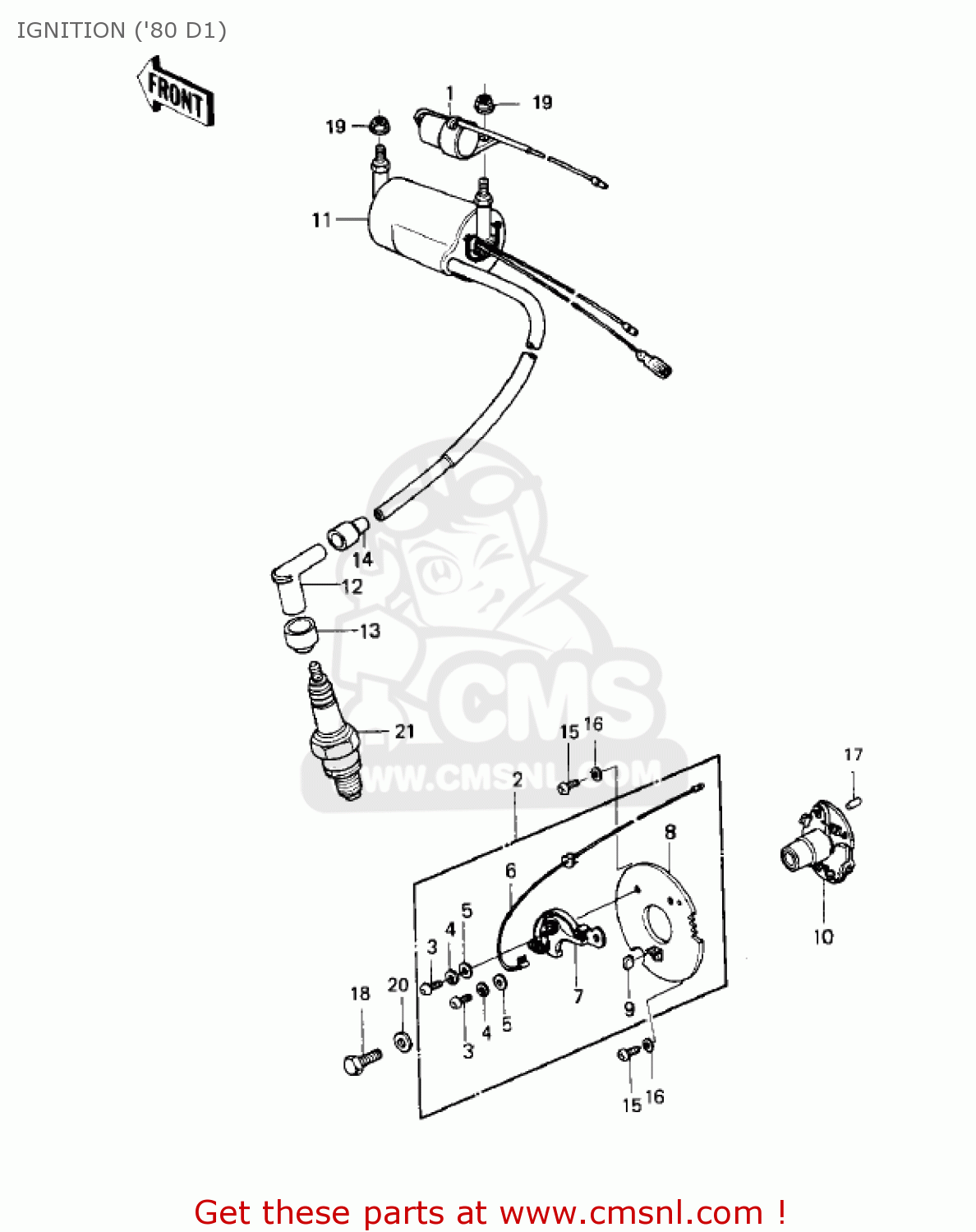

IGNITION ('80 D1)

KZ250D1 KZ250 1980 USA CANADA / MPH KPH

Ignition ('80 d1) diagram KZ250D1 KZ250 1980 USA CANADA / MPH KPH

IGNITION ('80 D1) KZ250D1 KZ250 1980 USA CANADA / MPH KPH

IGNITION ('80 D1) KZ250D1 KZ250 1980 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

21013036
ref: 1

CONDENSER

€ 19.50

2

21135013
ref: 2

BREAKER ASSY,CONTACT

€ 28.00

3

220B0406
ref: 3

SCREW-PAN-CROS,4X6

€ 2.50

4

461F0400
ref: 4

WASHER-SPRING,4MM

€ 0.50

5

410B0400
ref: 5

WASHER-PLAIN-SMALL,4M

€ 0.50

6

260011020
ref: 6

WIRING HARNESS, CONT

€ 16.50

7

210081002
ref: 7

BREAKER, CONTACT

€ 29.50

8

210211001
ref: 8

PLATE-BREAKER

€ 10.50

9

21019005
ref: 9

BRUSH,OIL

€ 3.00

10

211481015
ref: 10

ADVANCER,AUTMATIC

€ 86.00

11

211211026
ref: 11

COIL-IGNITION

€ 151.00

12

211301007
ref: 12

CAP-SPARK PLUG,RTFM20

€ 24.00

13

21131004
ref: 13

GROMMET,PLUG CAP

€ 7.00

14

21132005
ref: 14

GROMMET,SPARK PLUG CP

€ 2.50

15

220B0610
ref: 15

SCREW-PAN HEAD,6X10

€ 2.00

16

410B0600
ref: 16

WASHER-PLAIN-SMALL,6M

€ 0.50

17

551A0308
ref: 17

PIN-DOWEL,3X8

€ 0.50

18

92003221
ref: 18

BOLT, 6X14

€ 3.00

19

920151078
ref: 19

NUT,6M/M

€ 1.50

20

92022323
ref: 20

WASHER, PLAIN

€ 2.00

21

B7ESA
ref: 21
LOCAL PROCUREMENT IT

SPARK PLUG, B7ES

€ 5.00
