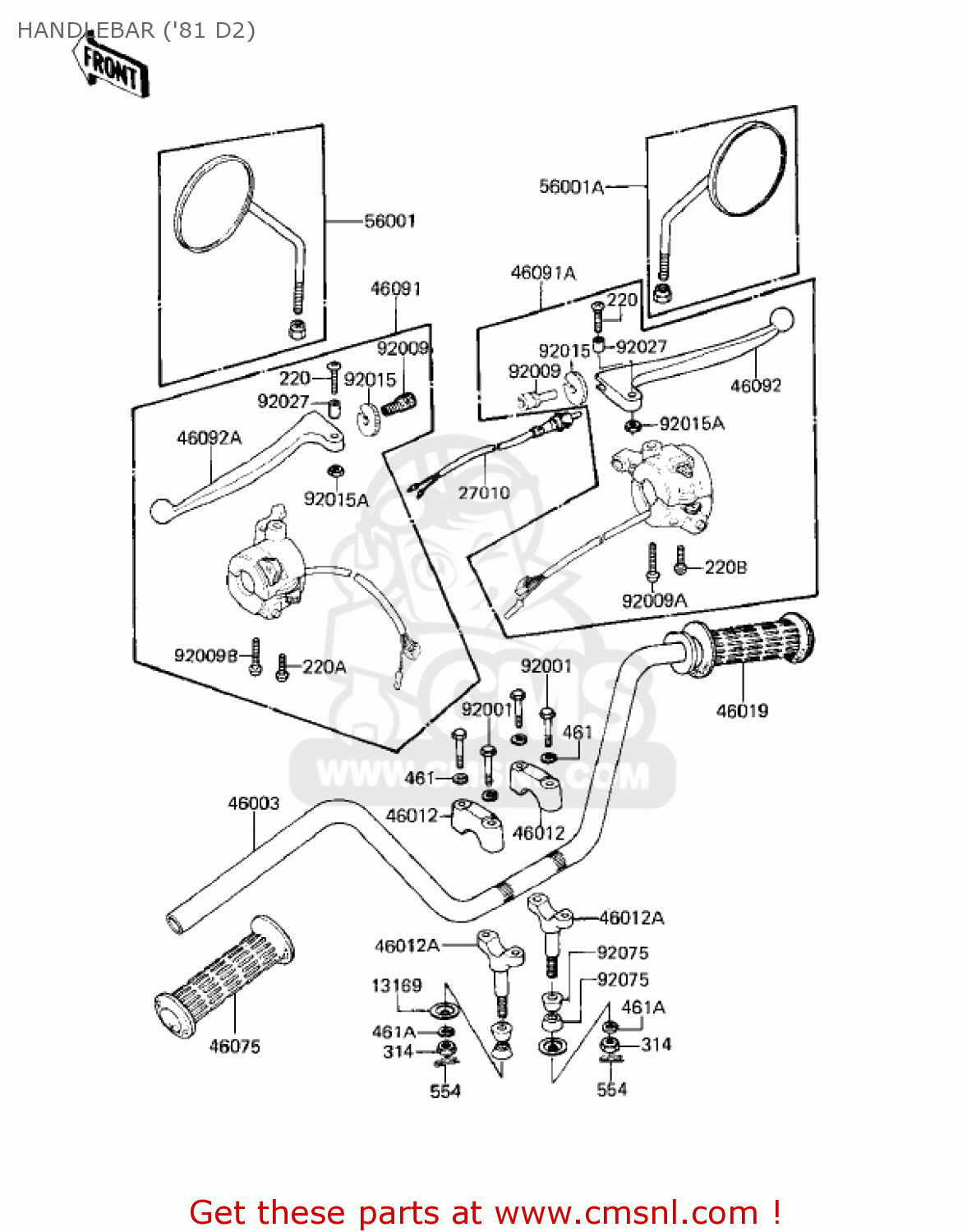

HANDLEBAR ('81 D2)

KZ250D1 KZ250 1980 USA CANADA / MPH KPH

Handlebar ('81 d2) diagram KZ250D1 KZ250 1980 USA CANADA / MPH KPH

HANDLEBAR ('81 D2) KZ250D1 KZ250 1980 USA CANADA / MPH KPH

HANDLEBAR ('81 D2) KZ250D1 KZ250 1980 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

13169

46016003
ref: 13169

PLATE,HANDLE HOLDER

€ 3.50

27010

27021004
ref: 27010

SWITCH,FR BRAKE LAMP

€ 23.00

46003

460031045
ref: 46003

HANDLE

€ 109.50

46012

46012008
ref: 46012

HOLDER-HANDLE,UPP

€ 23.00

46012A

46012010
ref: 46012A

HOLDER-HANDLE,LWR

€ 20.00

46019

46019041
ref: 46019

GRIP-ASSY,THROTTLE

€ 28.00

46075

46075028
ref: 46075

GRIP,LH

€ 32.00

46091

460911085
ref: 46091

HOUSING ASSEMBLY,LH

€ 89.00

46091A

460911136
ref: 46091A

CONTROLLER HOUSING ASSEMBLY

€ 97.50

46092

46058019
ref: 46092

LEVER-GRIP,FRONT BRAK

€ 16.50

46092A

46092024
ref: 46092A

LEVER-GRIP,CLUTCH

€ 10.50

56001

560011055
ref: 56001

MIRROR-ASSY,LH

€ 61.50

56001A

560011077
ref: 56001A

MIRROR-ASSY,RH

€ 37.50

92001

920011405
ref: 92001

BOLT,8X38

€ 10.00

92009

46055003
ref: 92009

SCREW-CABLE ADJUST

€ 11.50

92009A

920091017
ref: 92009A

SCREW,PAN HEAD,5X48

€ 2.50

92009B

920091018
ref: 92009B

SCREW,PAN HEAD,5X38

€ 2.00

92015

46056005
ref: 92015

NUT-LOCK

€ 6.00

92015A

92019014
ref: 92015A

NUT-LOCK,5M/M

€ 2.50

92027

920271042
ref: 92027

COLLAR, LEVER

€ 2.00

92075

92075039
ref: 92075

DAMPER RUBBER-HANDLE

€ 3.00

220

220B0522
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220B0525
ref: 220A

SCREW-PAN-CROS,5X25

€ 2.50

220B

220B0530
ref: 220B

SCREW-PAN-CROS

€ 2.00

314

314B1000
ref: 314

NUT,10MM

€ 0.50

461

461F0800
ref: 461

WASHER-SPRING,8MM

€ 0.50

461A

461F1000
ref: 461A

WASHER-SPRING,10MM

€ 0.50

554

554A0800
ref: 554

PIN-SNAP,8MM

€ 1.00
